316LSafety exhaust valve pressure control valve with glass and pressure gauge for pharmacy

  • Model NO.: DJ
  • FOB Price: USD 124.00-158.00 / pieces
  • Min order:10 pieces
  • Accept Min order: Yes
  • Supply Ability:1000 pieces / Month
  • Country of Origin: Ningbo or Shanghai

Product Description

  • Place of Origin: CN;ZHE
  • Power: Manual
  • Structure: Safety
  • Temperature of Media: Normal Temperature
  • Media: Food, Beer, Beverage, Dairy
  • Application: food, beverage, pharmaceutical, cosmetics, water treatment
  • Brand Name: Donjoy
  • Model Number: DJ
  • Port Size:1"-1.5", DN25-DN40

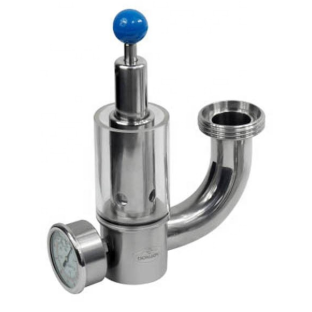

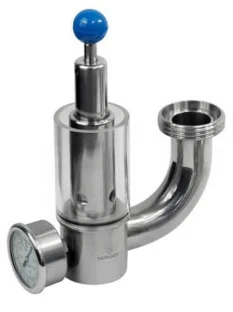

316LSafety exhaust valve with glass and pressure gauge for pharmacy

Product structure



Technical Parameters

Valve body material

SS304 or SS316L

Material of gasket

EPDM,NBR,FPM

Size

1"-1.5", DN25-DN40

Max. working temperature

121  °C

Max. operating pressure

0-3bar/0-6bar/0-10bar

Availably connection

Thread, Clamp

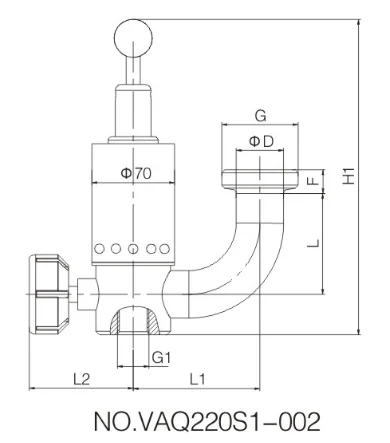

Dimensions

SIZE

G1

D

H1

L

L1

L2

F

G

DN25

BSP ½’

28

267

70

98

88

20

Rd52x1/6

DN32

BSP ½’

34

267

78

103

88

20

Rd58x1/6

DN40

BSP ½’

40

267

85

107

88

20

Rd65x1/6



SIZE

G1

D

H1

L

L1

L2

F

G

1’

BSP ½’

25.4

267

52.4

80.4

88

19

Rd40x1/6

1.25’

BSP ½’

31.8

267

69.7

94.7

88

18

Rd48x1/6

1.5’

BSP ½’

40

267

74.6

97

88

20

Rd60x1/6











Lưu ý

Sản phẩm 316LSafety exhaust valve pressure control valve with glass and pressure gauge for pharmacy được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
