Bơm CIP tự mồi

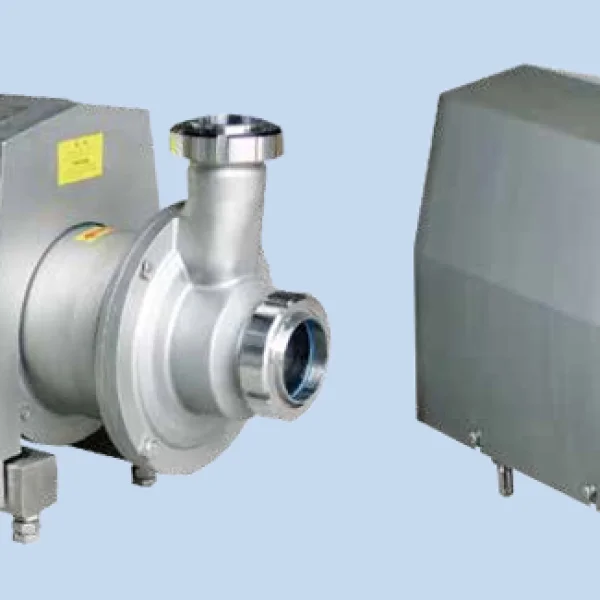

Self-Priming pump (Cip Pump)



Applications

The pumps is a sanitary side channel self priming pump, it is suitable for food processing,  pharmacy and chemical industry.

It is specially designed for pumping materials containing air or gas, and it can also be used for negative suction with prior priming as well as with filtration equipment.

It can be used with wine, oil, syrups, volatile products such as alcohol, acetone and other solvents, or with products at temperatures close to boiling point, however, the main use of this pump is for CIP return.

Motor power (KW) refer to table below

Power (KW)

Voltage

Power (KW)

Voltage

0.75

210V-230V/50HZ

360V-400V/50HZ

420V-460V/60HZ

4

360V-400V/50HZ

630V-690V/50HZ

420V-460V/60HZ

1.1

4.5

1.5

7.5

2.2

11

3

15

Technical Specifications

Max. flow: 130m3/h 132GPM

Max. head: 40H(m)

Max. pressure: 3Bar/43PSI

Max. temperature: 120oC/248oF

Max, rev: 1750 min

Max. suction height: 8m/22ft

Options

Mechanical seal in SIC/SIC

Gaskets in FPM (Viton) and PTFE

Inlet and Outlet connections: Clamp, Thread, Flange, DIN, SMS, 3A, RJT.

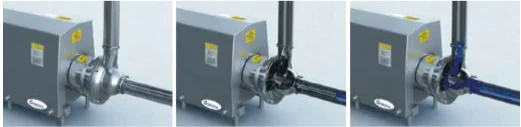

Operating Principles

The impeller is housed between the inlet body and the venture casing and it rotates in conjunction with the pump shaft

The rotation of the impeller and arrangement of the side channel, creates a negative pressure inside the inlet body, which generates the suction force of the pump. At the same time, the fluid receives energy in the form of kinetic energy and pressure energy, and this impels it through the impeller casing.

Design and Features

Mechanical seal prevents contacting between the springs and the pumped fluid

Stainless steel support

Materials

Parts in contact with pumped media: AISI-316/304

Other parts: AISI-304

Gaskets (standard): EPDM (FDA)

Mechanical seal (standard): C/SiC/EPDM

Internal surface finish: Polished

External surface finish: Sandblast

Self – Priming pump (Cip Pump)

Assembly Dimension

CIP

Pump specifition

Assembly Dimension

3A

Power (KW)

Inlet d”/DN

Outlet

d”/DN

φDp

Lp

Mechanic seal size

B

C

D

M

F

G

H

L

W

C

H

INM-CIP-B07

2.2

2”/50

2”/50

192

160

Φ32

71

230

142

233

300

160

430

652

260

262

462

INM-CIP-B010

3

2”/50

2”/50

192

160

Φ32

71

230

142

233

300

160

430

652

260

262

462

INM-CIP-B020

4

2.5”/65

2”/50

248

200

Φ32

83.5

210

185

254

300

190

422

642

260

242

454

INM-CIP-B025

5.5

2.5”/65

2.5”/65

248

200

Φ32

83.5

242

185

282

330

216

460

772

310

274

492

INM-CIP-B030

7.5

3”/80

2.5”/65

248

200

Φ32

83.5

242

185

282

330

216

460

772

310

274

492

Attention: Please refer to selection table for details of next page, the size in the following form is the reference value, the actual size is subjected to actual object.

Model instruction of Self-priming pump

Sample: CIP-B10-10T-24-3Kw-380V-50HZ-M-2”/2”-S

Pump Selection Table

Model

Flow rate (m3/h)

Absorption Process (M)

Discharge head (M)

Power (Kw)

Inlet and Outlet

INM-CIP-B07

7

6

24

2.2kw

2”/2”

INM-CIP-B10

10

6

24

3kw

2”/2”

INM-CIP-B20

20

6

24

4kw

2.5”/2.5”

INM-CIP-B25

25

8

24

5.5kw

3”/2.5”

INM-CIP-B30

30

8

24

7.5kw

3”/2.5”



Sản phẩm Bơm CIP tự mồi được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
