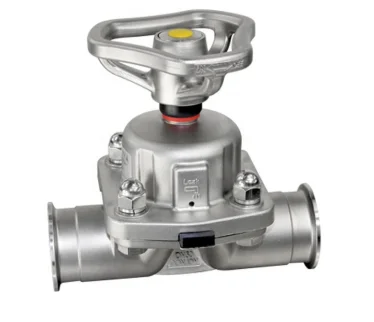

Clamp ss316l diaphragm valve with ss handle for biopharmaceutical

·   Model NO.: Tank bottom

·   FOB Price: USD 63.00-75.00 / pieces

·   Min order:10 pieces

·   Accept Min order: Yes

·   Supply Ability:1000 pieces / Month

·   Country of Origin: NINGBO OR SHANGHAI

Product Description

·   Place of Origin: CN;ZHE

·   Temperature of Media: Normal Temperature

·   Power: Manual

·   Media: Water

·   Structure: Diaphragm

·   Brand Name: DONJOY

·   Model Number: Tank bottom

·   Port Size:1/2"-3",DN10-DN65

·   Application: Dairy, food, beverage, pharmacy, cosmetic, etc

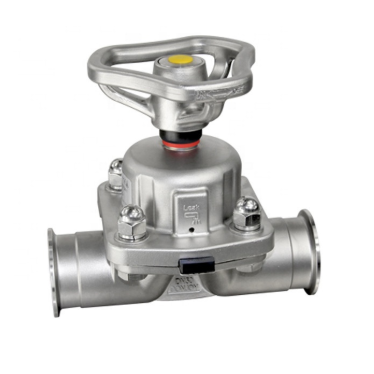

Clamp ss316l diaphragm valve with ss handle for biopharmaceutical

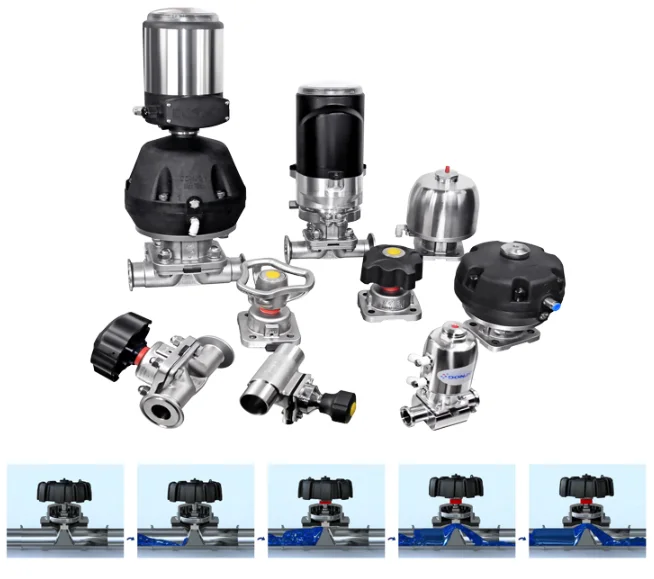

Product structure



Technical Parameters

Availably  size

1"-4", DN25-DN100

Max. temperature

-30 to 150 °C(depending on diaphragm) (stainless steel wheel)

Max. temperature

-30 to 130 °C (depending on diaphragm) (plastic wheel)

Max. pressure

10Bar

Valve body

316L / BPE 316L

Availably connection

Clamp / weld / thread / flange

Seal Material

PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)

Availably standard

3A/BPE/DIN/ISO/IDF

Control

Smart valve positioner / C-TOP control / position sensor

Operated

Manual, Pneumatic

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

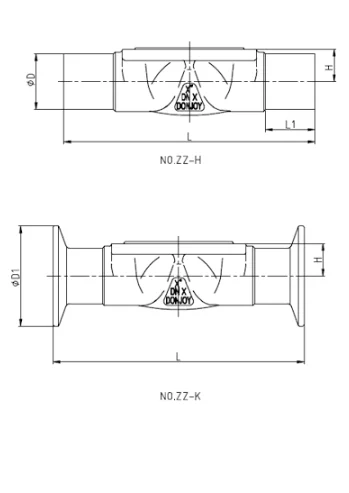

Dimensions



DIN32676/DIN11850-1/2

SIZE

D

D1

L

H

L1

DN20

22

34

117

17.2

22

DN25

28

50.5

127

17.2

25

DN32

34

50.5

146

21.2

25

DN40

40

50.5

159

24.2

25

DN50

52

64

190

31.5

30

DN65

70

91

216

40

30

DN80

85

106

254

50



DN100

104

119

305

58







ASME BPE/ASTM 269

SIZE

D

D1

L

H

L1

1”

25.4

50.5

127

17.2

20

1.25”

31.8

50.5

146

21.2

20

1.5”

38.1

50.5

159

24.2

20

2”

50.8

64

190

31.5

30

2.5”

63.5

77.5

216

40

30

3”

76.2

91

254

43

30

3.5”

89

106

254

50



4”

101.6

119

305

58







ISO1127

SIZE

D

D1

L

H

¾”

26.9

50.5

127

17.2

1”

33.7

50.5

146

21.2

1.1/4’

42.4

50.5

159

24.2

1.5”

48.3

64

190

31.5

2’

60.3

77.5

216

40

2.5”

76.2

91

254

43
