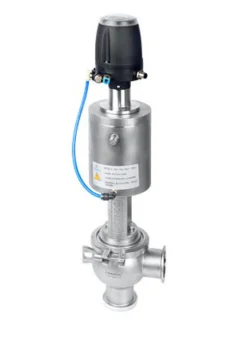

DINJOY Stainless steel pneumatic double seat divert seat valve with position feedback

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DINJOY Stainless steel pneumatic double seat divert seat valve with position feedback

FOB Price: USD 159.00-182.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo

Product Description

Structure: Regulating
Power: Pneumatic
Temperature of Media: Medium Temperature
Media: Water
Place of Origin: CN; ZHE
Application: General
Port Size:DN25-DN100 or 1"-4"
Brand Name: DONJOY

DINJOY Stainless steel reversing globe valve regulating valve double seat valve with position feedback

Product structure

Technical Parameters

Parts in contact with medium	304/316L
Other parts in stainless steel	304
Gasket	EPDM
Internal surface finish	Ra<0.8μm
External surface finish	Sandblast or mirror polish
Size	DN25-DN100 1"-4"
Working temperature	-10°C to 120 °C
Max working pressure	10bar

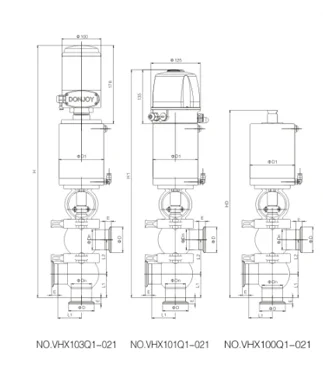

Dimensions

DIN Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
DN25	543	500	381	28	50.5	50	67	88	113	12.7	6
DN32				34		55				12.7	6
DN40				40		60				12.7	6
DN50	613	570	455	52	64	70	76	113	132	12.7	8
DN65	688	645	511	70	91	99	105	132	180	12.7	15
DN80	688	645	511	85	106	99	105	132	180	12.7	15
DN100	505	765	635	104	119	114	146	180		15.8	17

INCH Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
1”	543	500	381	28	50.5	50	67	88	113	12.7	6
1.25’				34		55				12.7	6
1.5”				40		60				12.7	6
2”	613	570	455	52	64	70	76	113	132	12.7	8
2.5”	688	645	511	70	91	99	105	132	180	12.7	15
3”	688	645	511	85	106	99	105	132	180	12.7	15
4”	505	765	635	104	119	114	146	180		15.8	17

Lưu ý

Sản phẩm DINJOY Stainless steel pneumatic double seat divert seat valve with position feedback được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
