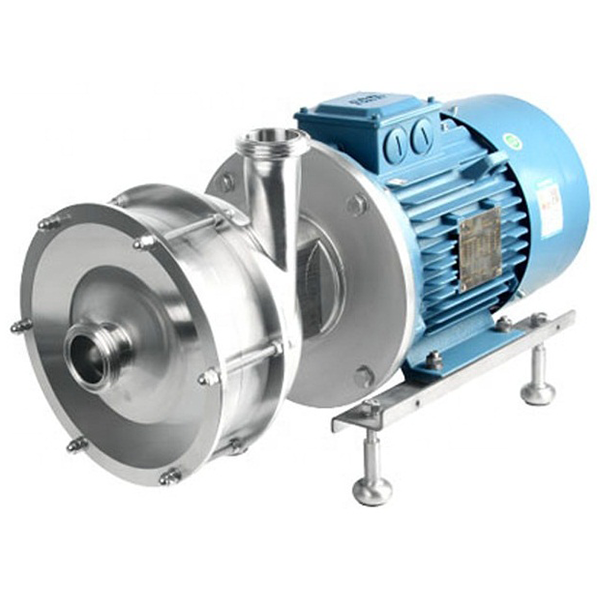

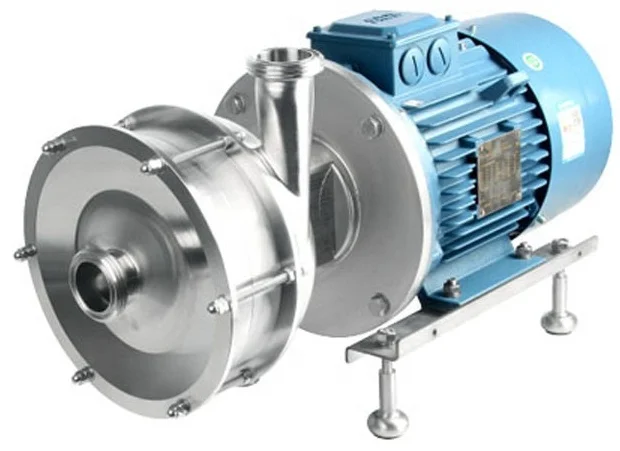

DONJOY 1.5KW high flow rate high discharge head sanitary stainless steel water centrifugal pump

Name: DONJOY 1.5KW high flow rate high discharge head sanitary stainless steel water centrifugal pump
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY 1.5KW high flow rate high discharge head sanitary stainless steel water centrifugal pump

Model NO.: DLX
FOB Price: USD 270.00-2900.00 / set
Min order: 1 set
Accept Min order: Yes
Supply Ability: 100 set / Quarter
Country of Origin: NINGBO OR SHANGHAI

Product Description

Place of Origin: CN; ZHE
Structure: Single-stage Pump
Usage: Water
Power: Electric
Fuel: Diesel
Pressure: Low Pressure
Application: Sewage
Brand Name: DONJOY
Model Number: DLX

DONJOY Stainless steel Horizontal Multi Stage Centrifugal Pump

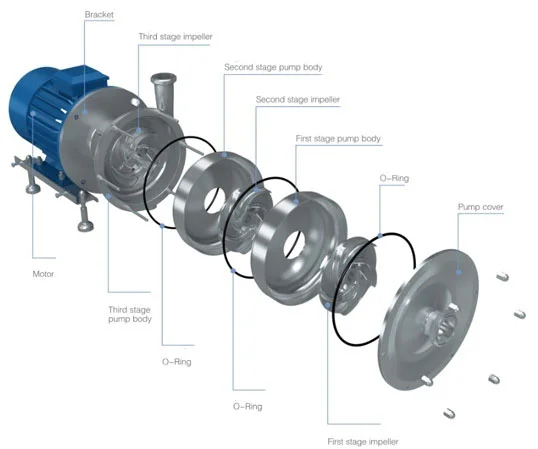

Product structure

Technical Parameters

Max flow	50m3/h
Max head	180m
Max temperature	-10°C to 140 °C
Material	304/316L
Surface treatment	Ra≤0.8μm ≤Ra0.6μm, Ra ≤0.4μm
Mechanical seal	Single mechanical seal, double mechanical seal
In et/Outlet	Threaded, clamped, flange, Aseptic flange
Certification	3-A-02-10 NO.1579; MD/06/42-EC NO.70521616101-00; FDA 177.2600 ; USP CLASS II; EG/VO 1935/2004

Dimensions

DLX-2 selection table

Model	Power (KW)	Flow rate (m³)	Head (M)	Inlet/Outlet	Weight (KG)
DJ-DLX-2-10	7.5	10	70	2'/2'	95
DJ-DLX-2-10	11	20	65	2'/2'	139
DJ-DLX-2-30	7.5	10	85	3'/1.5'	116
	11	20	80		158
	11	30	70		154
	15	30	70		173
DJ-DLX-2-50	22	20	120	3'/2'	224
	22	30	110		224
	30	40	92		257
	30	50	82		257

DLX-3 selection table

Model	Power (KW)	Flow rate (m³)	Head (M)	Inlet/Outlet	Weight (KG)
DJ-DLX-3-10	11	10	97	2'/2'	143
DJ-DLX-3-10	15	20	89	2'/2'	151
DJ-DLX-3-30	15	10	112	3'/1.5'	183
	18.5	20	138		213
	18.5	30	108		213
	22	30	108		226
DJ-DLX-3-50	37	20	176	3'/2'	316
	37	30	162		316
	45	40	136		364
	45	50	122		364

Lưu ý

Sản phẩm DONJOY 1.5KW high flow rate high discharge head sanitary stainless steel water centrifugal pump được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
