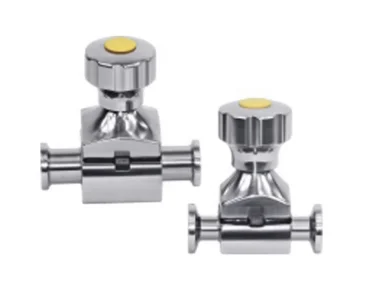

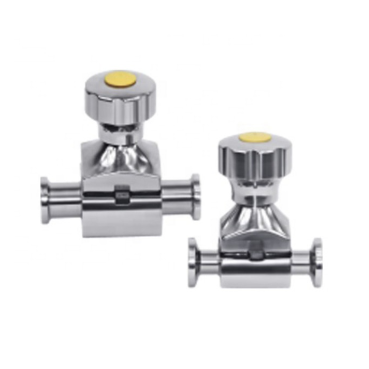

Donjoy biopharmaceutical diaphragm valve Mini Stainless steel diaphragm valve

0 Bình luận

Nhà sản xuất: DONJOY
Dòng sản phẩm: VAN INOX | STAINLESS STEEL VALVE
Chủng loại sản phẩm: Van màng | Diaphragm Valve
Phân loại sản phẩm:

· Model NO.: 200315

· FOB Price: USD 58.00-69.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: NINGBO OR SHAGNHAI

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Medium Temperature

· Power: Manual

· Media: Water

· Structure: Diaphragm

· Brand Name: DONJOY

· Model Number:200315

· Port Size:1/2"-2",DN10-DN50

Donjoy biopharmaceutical diaphragm valve Mini Stainless steel diaphragm valve

Product structure

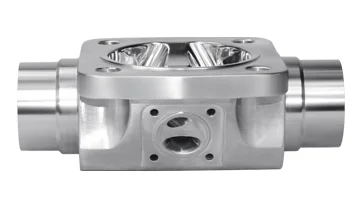

Diapharagm valve forging body

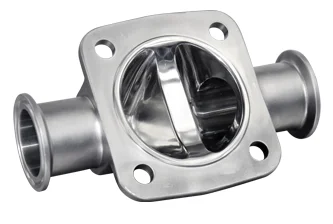

Diapharagm valve casging body

Technical Parameters

Availably size	1/4"-3/4", DN6-DN15
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	10bar
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

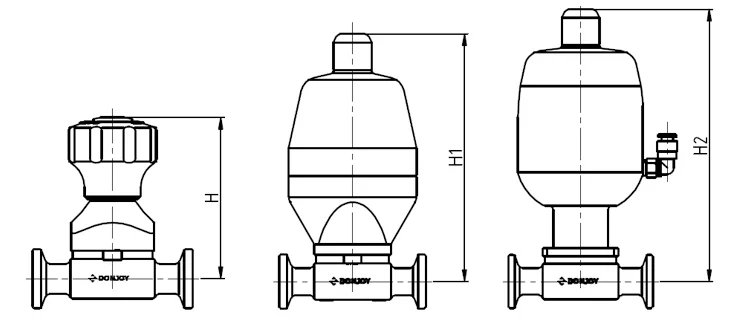

Dimensions

SIZE	SIZE	H	H1	H1
¼”	DN6	69	116	130
3/8”	DN8	69	116	130
½”	DN10	69	116	130
¾”	DN15	72	119	133

Lưu ý

Sản phẩm Clamp ss316l diaphragm valve with ss handle for biopharmaceutical được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
