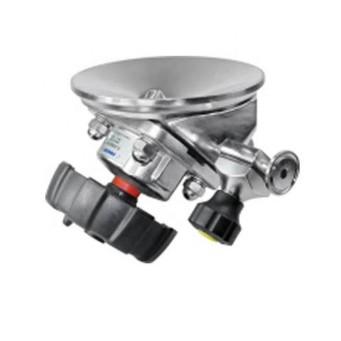

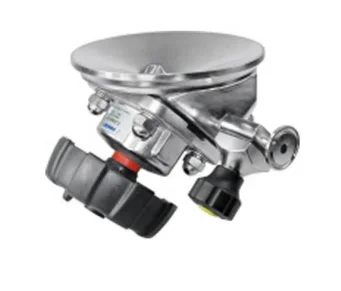

Donjoy Clamp plastic manual Diaphragm tank bottom valve for Cosmetic

·   Model NO.: 1105006

·   FOB Price: USD 228.00-272.00 / pieces

·   Min order:10 pieces

·   Accept Min order: Yes

·   Supply Ability:1000 pieces / Month

·   Country of Origin: NINGBO OR SHANGHAI

Product Description

·   Place of Origin: CN; ZHE

·   Temperature of Media: Normal Temperature

·   Power: Manual

·   Media: Water

·   Structure: Diaphragm

·   Brand Name: DONJOY

·   Model Number:1105006

·   Port Size:1/2"-2",DN10-DN50

Clamp plastic manual tank bottom diaphragm valve for Cosmetic

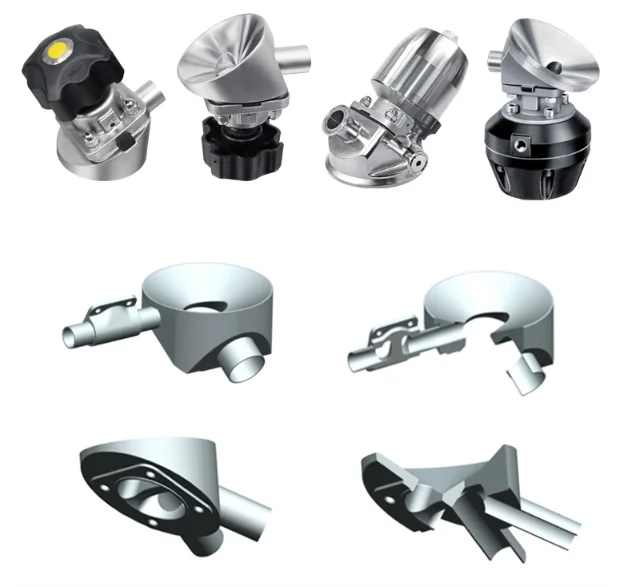

Product structure



Technical Parameters

Availably  size

1"-4", DN25-DN100

Max. temperature

-30 to 150 °C(depending on diaphragm) (stainless steel wheel)

Max. temperature

-30 to 130 °C (depending on diaphragm) (plastic wheel)

Max. pressure

10Bar

Valve body

316L / BPE 316L

Availably connection

Clamp / weld / thread / flange

Seal Material

PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)

Availably standard

3A/BPE/DIN/ISO/IDF

Control

Smart valve positioner / C-TOP control / position sensor

Operated

Manual, Pneumatic

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

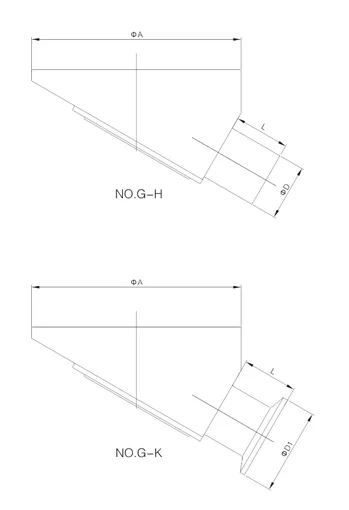

Dimensions

Dimension of diaphragm valve



DIN32676/DIN11850-1/2

SIZE

D

D1

L

A

DN15

18/19

34

25

95

DN20

22/23

34

25

95

DN25

28

50.5

25

95

DN32

34

50.5

25

126

DN40

40

50.5

30

134

DN50

52

64

30

161

DN65

70

91

30

250

DN80

85

106

30

250

DN100

104

119

30

320



ASME BPE/ASTM 269

SIZE

D

D1

L

A

¾”

19

25.4

25

95

1”

25.4

50.5

25

95

1.25”

31.8

50.5

25

95

1.5”

38.1

50.5

25

126

2”

50.8

64

30

134

2.5”

63.5

77.5

30

161

3”

76.2

91

30

250

3.5”

89

106

30

250

4”

101.6

119

30

320





Lưu ý

Sản phẩm Donjoy Clamp plastic manual Diaphragm tank bottom valve for Cosmetic  được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
