DONJOY factory Sanitary manual double seat divert Valve weld

  •    Model NO.: 11
  •    FOB Price: USD 106.00-121.00 / pieces
  •    Min order:2 pieces
  •    Accept Min order: Yes
  •    Supply Ability:1000 pieces / Month
  •    Country of Origin: Shanghai or Ningbo

Product Description

  •    Structure: Regulating
  •    Power: Manual
  •    Temperature of Media: Normal Temperature
  •    Place of Origin: CN; ZHE
  •    Media: Other
  •    Port Size:DN25-100
  •    Brand Name: Donjoy
  •    Application: General
  •    Model Number:11

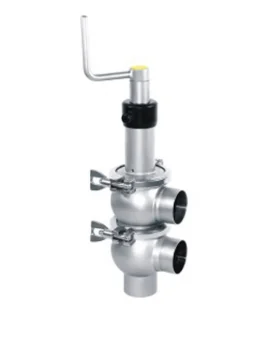

DONJOY flow adjustment stainless steel manual double seat divert seat valve

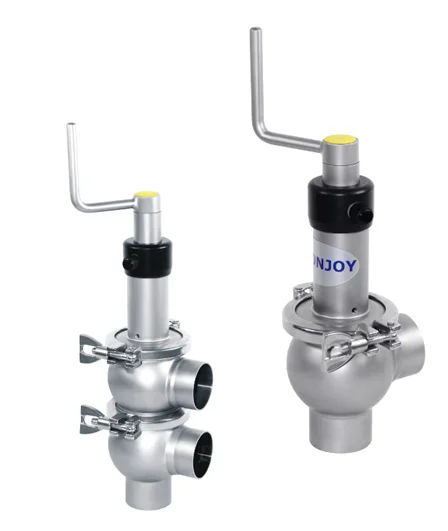

Product structure



Technical Parameters

Product Name:

hygienic manual reversing valve

Valve Body Material:

SS304 or SS316L

Seal Material:

EPDM

Max. Working Pressure:

10Bar

Max. Working Temperature:

120 degree C

Availably  size:

DN25-DN100 or 1"- 4"

Availably connection:

Thread, Weld, Clamp

Availably standard:

DIN,SMS,RJT,3A

Operated:

Manual, Pneumatic

Certificate:

FDA,CE

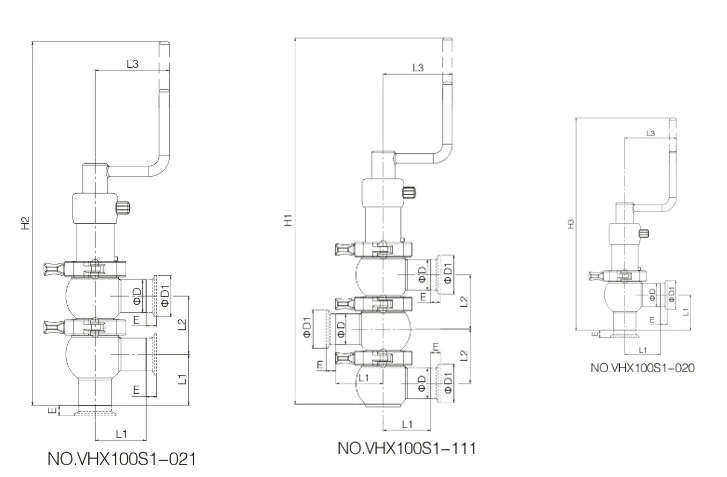

Dimensions





INCH Manual Divert Seat Valve

1

2

3

SIZE

H1

H2

H3

D

D1

L1

L2

L3

E

Weight

(kg)

Weight

(kg)

Weight

(kg)

1”

-

393

326

25.4

50.5

50

67

86

12.7

4

3

2

1.25’

-

398

331

31.8

55

12.7

4

3

2

1.5”

440

403

336

38.1

60

12.7

4

3

2

2”

489

446

370

50.8

64

70

76

86

12.7

5

4

3

2.5”

526

475

386

63.5

77.5

80

88

86

12.7

8

6

5

3”

579

520

415

76.2

91

99

105

86

12.7

10

8

6

4”

702

576

430

101.6

119

114

146

86

12.7

15

12

9





DIN Manual Divert Seat Valve

1

2

3

SIZE

H1

H2

H3

D

D1

L1

L2

L3

E

Weight

(kg)

Weight

(kg)

Weight

(kg)

DN25

-

393

326

25.4

50.5

50

67

86

12.7

4

3

2

DN32

-

398

331

31.8

55

12.7

4

3

2

DN40

440

403

336

38.1

60

12.7

4

3

2

DN50

489

446

370

50.8

64

70

76

86

12.7

5

4

3

DN65

526

475

386

63.5

77.5

80

88

86

12.7

8

6

5

DN80

579

520

415

76.2

91

99

105

86

12.7

10

8

6

DN100

702

576

430

101.6

119

114

146

86

12.7

15

12

9
