DONJOY factory stainless steel sanitary valve position can be adjusted divert seat

Name: DONJOY factory stainless steel sanitary valve position can be adjusted divert seat
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY factory stainless steel sanitary valve position can be adjusted divert seat

Model NO.: regulate
FOB Price: USD 275.00-1545.00 / pieces
Min order:10 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo

Product Description

Structure: Regulating
Power: Pneumatic
Temperature of Media: Normal Temperature
Place of Origin: CN; ZHE
Media: Other
Port Size:DN25-100
Brand Name: Donjoy
Model Number: regulate

DONJOY factory stainless steel sanitary valve position can be adjusted divert seat

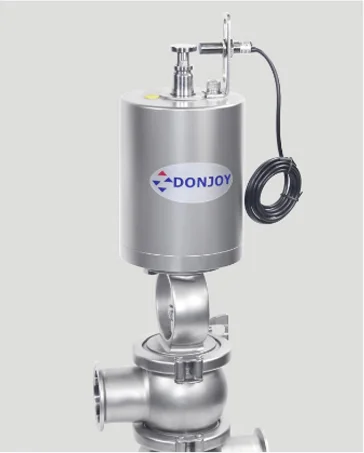

Product structure

donjoy-factory-stainless-steel-sanitary-2

Technical Parameters

Product Name:	DONJOY factory stainless steel sanitary valve position can be adjusted divert seat
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM factory stainless steel sanitary valve position can be adjusted divert seat
Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to intelligent/C-TOP controller
Operate:	Pneumatic
Certificate:	FDA,CE

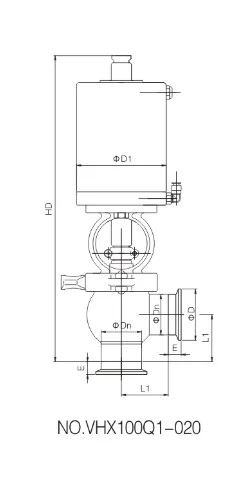

Dimensions

DIN Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
DN25	476	433	314	28	50.5	50	67	88	113	12.7	5
DN32				34		55				12.7	5
DN40				40		60				12.7	5
DN50	537	494	378	52	64	70	76	113	132	12.7	8
DN65	583	540	406	70	91	99	105	132	180	12.7	15
DN80	583	540	406	85	106	99	105	132	180	12.7	15
DN100	662	619	489	104	119	114	146	180		15.8	17

INCH Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
1”	476	433	314	28	50.5	50	67	88	113	12.7	5
1.25’				34		55				12.7	5
1.5”				40		60				12.7	5
2”	537	494	378	52	64	70	76	113	132	12.7	8
2.5”	583	540	406	70	91	99	105	132	180	12.7	15
3”	583	540	406	85	106	99	105	132	180	12.7	15
4”	662	619	489	104	119	114	146	180		15.8	17

Lưu ý

Sản phẩm DONJOY factory stainless steel sanitary valve position can be adjusted divert seat được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
