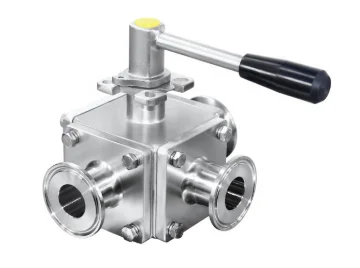

Donjoy factory Three 3 way Ball Valve with clamp end

Name: Donjoy factory Three 3 way Ball Valve with clamp end
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Donjoy factory Three 3 way Ball Valve with clamp end

· Model NO.: BW-1

· FOB Price: USD 91.00-104.00 / pieces

· Min order:2 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: ningbo

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Manual

· Media: Water

· Structure: Ball

· Brand Name: DONJOY

· Port Size:DN25-100 or 1"-4"

· Model Number:BW-1

DONJOY forged stainless steel Industrial 1pc ball valve

Product structure

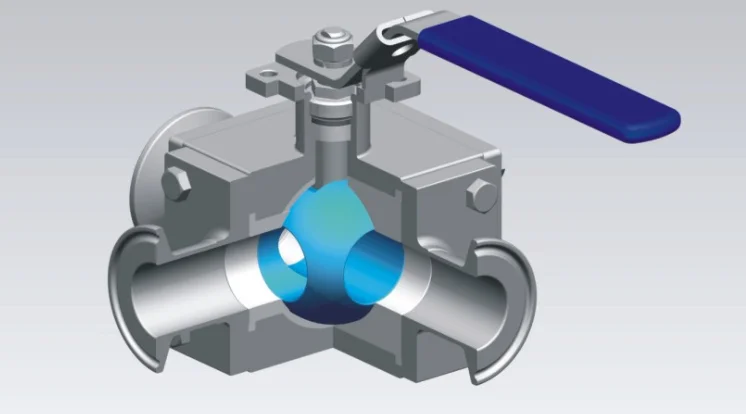

donjoy-factory-three-2

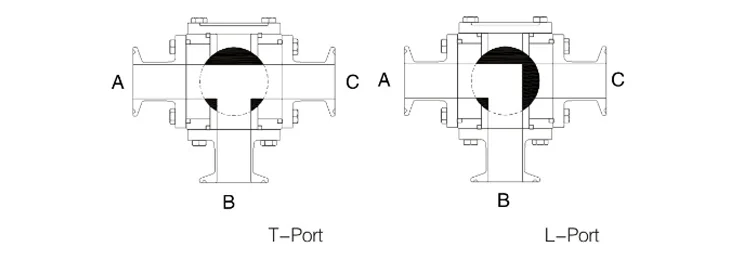

donjoy-factory-three-3

Technical Parameters

Product Name:	Donjoy factory Three 3 way Ball Valve with clamp end
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	30Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	Thread, Weld, Clamp, Flange
Availably standard:	DIN,SMS,3A
Certificate:	CE,FDA,3A
Operated:	Manual

Dimensions

INCH

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3
1”	F04\F05	22.4	25.4	50.5	148	92	165	210	190	240	165	247	86
1.25”	F04\F05	28.8	31.8	50.5	152	96	165	215	207	245	165	252	86
1.5”	F06\F07	35.1	38.1	50.5	180	100	165	234	207	252	165	312	113
2”	F07\F07	47.8	50.8	64	198	106	165	262	213	271	165	331	113
2.5”	F07\F10	59.5	63.5	77.5	252	116	236	274	213	314	212	380	133
3”	F07\F10	72.2	76.2	91	264	137	236	341	259	335	212	402	133
4”	F07\F10	97.6	101.6	119	323	165	236	396	267	565	269	448	196

DIN

SIZE	ISO5211	FDn	FD	FD1	L	H	A	H1	A1	H2	A2	H3	A3
DN25	F04\F05	22.4	25.4	50.5	148	92	165	210	190	240	165	247	86
DN32	F04\F05	28.8	31.8	50.5	152	96	165	215	207	245	165	252	86
DN40	F06\F07	35.1	38.1	50.5	180	100	165	234	207	252	165	312	113
DN50	F07\F07	47.8	50.8	64	198	106	165	262	213	271	165	331	113
DN65	F07\F10	59.5	63.5	77.5	252	116	236	274	213	314	212	380	133
DN80	F07\F10	72.2	76.2	91	264	137	236	341	259	335	212	402	133
DN100	F07\F10	97.6	101.6	119	323	165	236	396	267	565	269	448	196

Lưu ý

Sản phẩm Donjoy factory Three 3 way Ball Valve with clamp end được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
