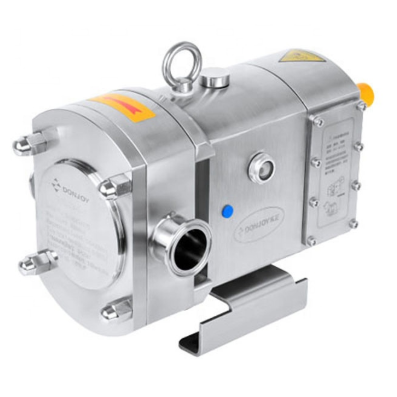

Donjoy food grade rotary lobe pump sanitary lobe pump price stainless steel rotor pump

  • Model NO.: STUR/L-10
  • FOB Price: USD 1056.00-1155.00 / sets
  • Min order:2 sets
  • Accept Min order: Yes
  • Supply Ability:100 sets / Month
  • Country of Origin: NINGBO OR SHANGHAIBottom of Form

Product Description



  • Place of Origin: CN;ZHE
  • Structure: Single-stage Pump
  • Usage: Dairy, food, beverage, pharmacy
  • Application: Liquid sampling
  • Power:0.75-3kw
  • Fuel: electric power
  • Pressure: Max pressure 12bar
  • Brand Name: DONJOY
  • Model Number: STUR/L-10

Mini Type Lobe pump Whole stainless steel lobe pump

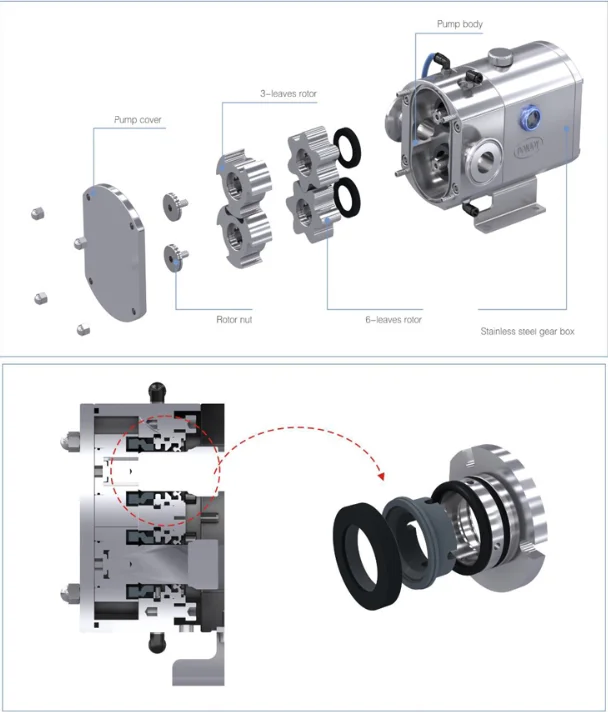

Product structure

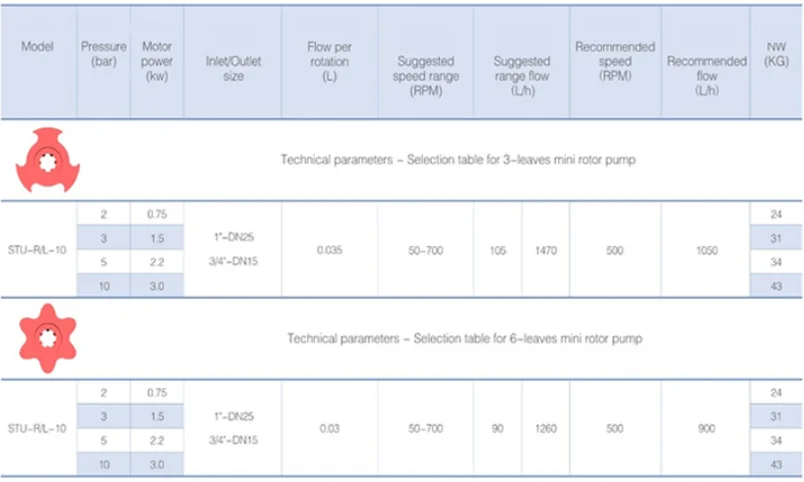

Technical Parameters

Max flow

90m3/h

Max pressure

15bar

Max temperature

150 °C

Max speed

750 R.P.M

Surface treatment

Ra≤0.8μm,Ra≤0.6μm, Ra≤0.4μm

Material

316L, ASME BPE 316L

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Note

Suqqested speed it is the suggested value based on years of experience.

Recommended speed. It is the value given be considering efficiency, life, noise, etc.

Flow per rotation refers to the flow of one rotation (360˚). If speed is confirmed flow = speed flow pet rotation. Pay attention to the unit, it is ‘L’.
