Donjoy food grade SS304 and SS316L stainless steel lobe pump sanitary honey transfer pump

0 Bình luận



Donjoy food grade SS304 and SS316L stainless steel lobe pump sanitary honey transfer pump

  • Model NO.: STU
  • FOB Price: USD 1099.85-1319.81 / sets
  • Min order: 2 sets
  • Accept Min order: Yes
  • Supply Ability: 100 sets / Month
  • Country of Origin: Ningbo or Shanghai



Product Description

  • Place of Origin: CN; ZHE
  • Power: Electric
  • Structure: Gear Pump
  • Usage: food &dairy processing
  • Application: High viscosity transfer
  • Fuel: Electric
  • Pressure: depend on request
  • Brand Name: donjoy
  • Model Number: STU

Donjoy food grade SS304 and SS316L stainless steel lobe pump sanitary honey transfer pump

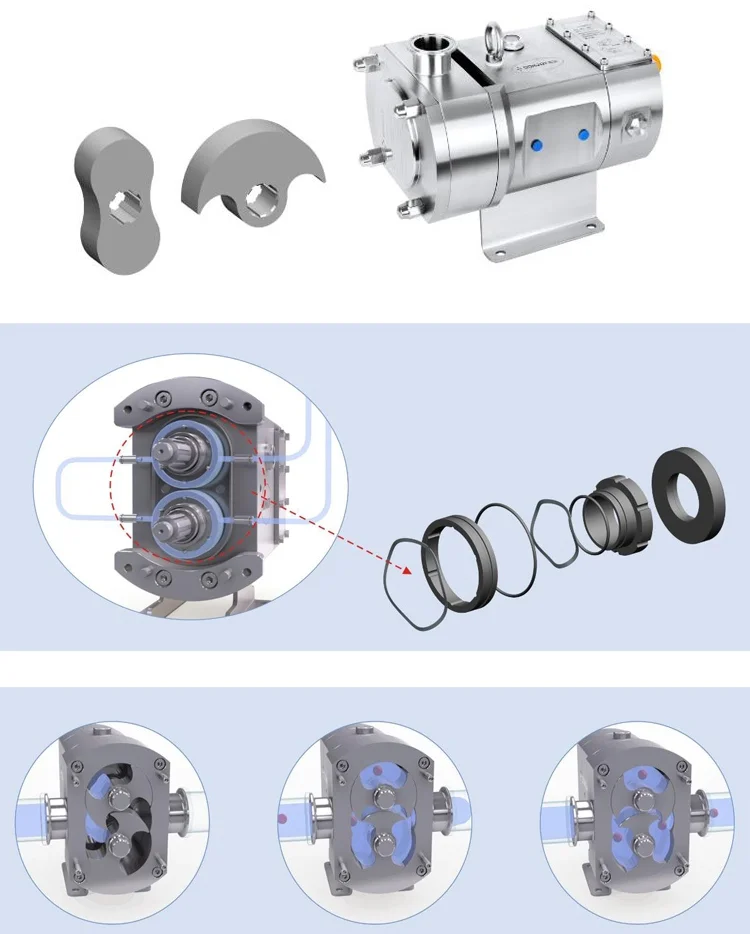

Product structure



Technical Parameters



Max flow

3000L/h

Max pressure

12bar

Rotating speed

10-1450 R.P.M

Working temperature

-40°C to 150 °C

Surface treatment

Ra≤0.6μm, Ra≤0.4μm

Material

100% stainless steel, product contact part316L

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00



Dimensions



Model

Flow per rotation (L/r)

Max speed (RPM/min)

Max flow rate (L/h)

Suggested speed range (RPM)

Suggested range flow (L/h)

Recommended speed (RPM)

Recommended flow (L/h)

Inlet/Outlet size

Max pressure (bar)

Weight (KG)



Technical parameters - Selection table for 3-leaves mini rotor pump

STU/L/R-10

0.035

1450

3045

50-700

105

1470

500

1050

1'-DN25

12

10.6

3/4'-DN15



Technical parameters - Selection table for 6-leaves mini rotor pump

STU/L/R-10

0.030

1450

2610

50-700

90

1260

500

900

1'-DN25

12

10.6

3/4'-DN15







Lưu ý

Sản phẩm Donjoy food grade SS304 and SS316L stainless steel lobe pump sanitary honey transfer pump được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
