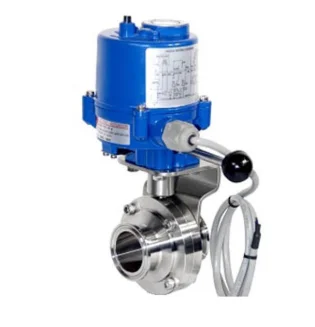

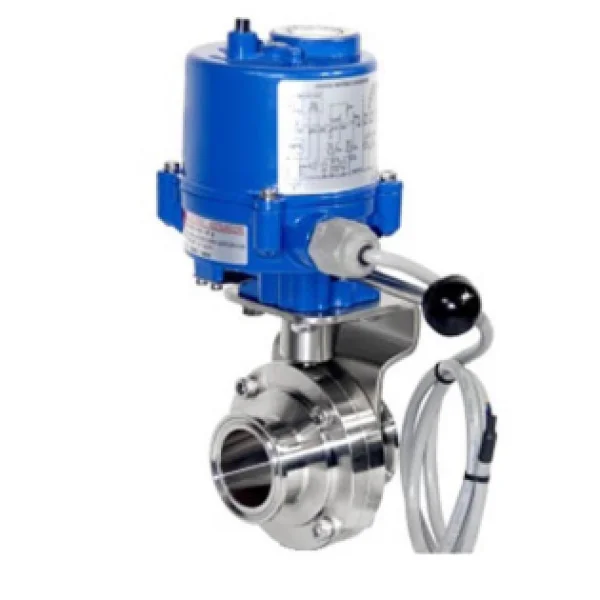

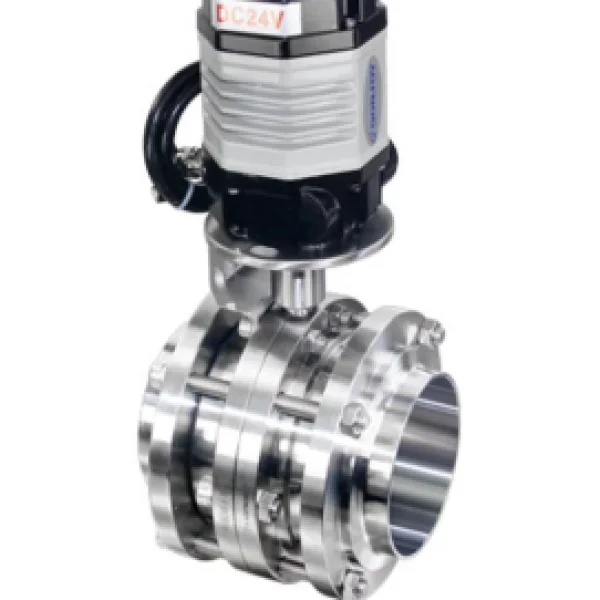

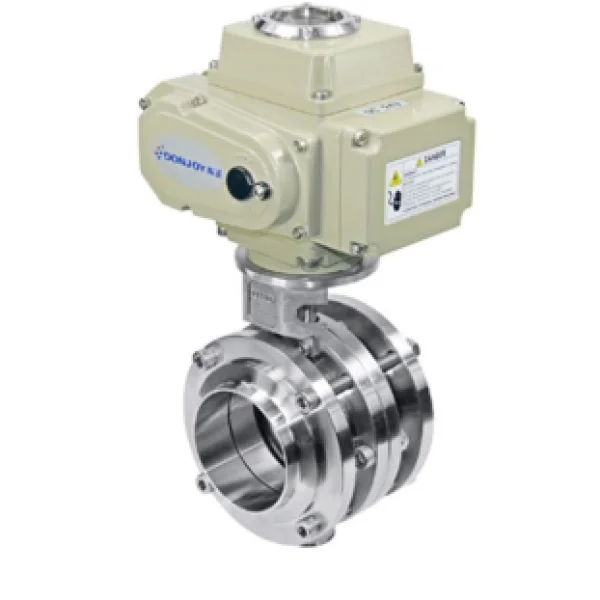

Donjoy food grade stainless steel clamped type electric sanitary butterfly valve

Name: Donjoy food grade stainless steel clamped type electric sanitary butterfly valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Donjoy food grade stainless steel clamped type electric sanitary butterfly valve

· Model NO.: Butterfly valve

· FOB Price: USD 154.00-194.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: ningbo or shanghai

Product Description

· Place of Origin: CN; ZHE

· Application: General

· Temperature of Media: Normal Temperature

· Media: Water

· Structure: Butterfly

· Power: Electric

· Brand Name: DONJOY

· Model Number: Butterfly valve

· Port Size:DN25-100 or 1"-4"

Donjoy food grade stainless steel clamped type electric butterfly valve

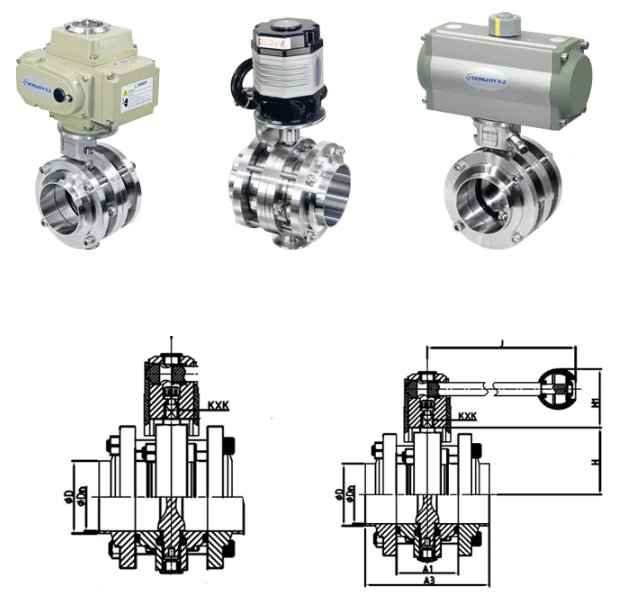

Product structure

Technical Parameters

Max.working pressure	10Bar
Max.Working Temperature	120 degree C
Valve Body Material	1.4404/1.4301, SS304/SS316L
Seal Material	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably size	1/2"-12", DN10-DN300
Availably connection	Clamp / weld / thread/ weld thread/ flange
Availably standard	3A/DIN/SMS/RJT/ISO/IDF
Operated	Manual, Pneumatic, Electric
Control	Sensor, C-TOP, C-top controller(AS-I)
Handle option	pull handle, plastic/SS multi-positon handle
Handle application	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Actuator application	Stainless steel actuator/ Horizontal pneumatic actuator
Certificate	ISO, PED/97/23/EC, FDA.177.2600

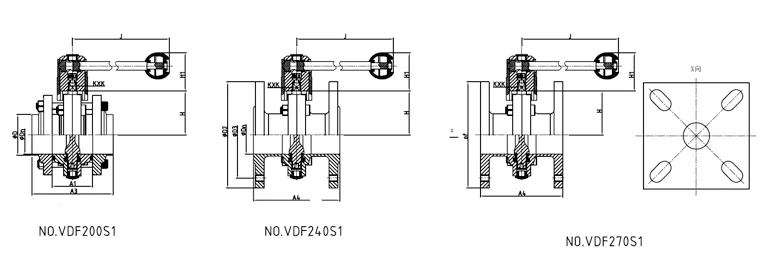

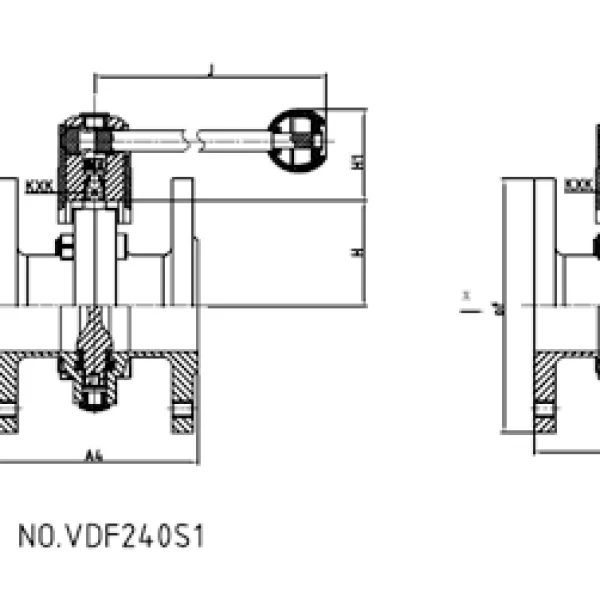

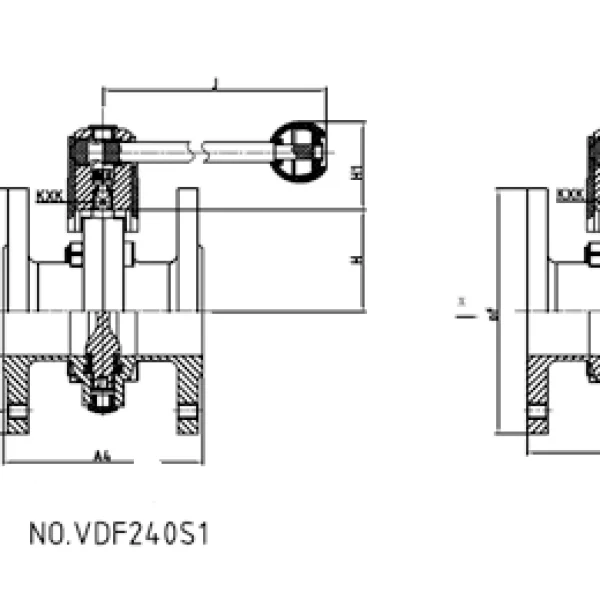

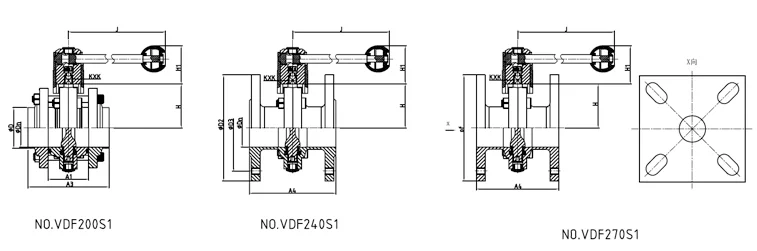

Dimensions

donjoy-food-grade-stainless-steel-clamped-type-electric-sanitary-butterfly-valve-picture-5

SIZE	Dn	D	D2	D3	KXK	J	H	H1	A3	A1	A4	of
½”	9.7	12.7	\	\	8X8	126	40	43.5	100	50	\	\
¾”	16.1	25.4	126	65	8X8	126	40	43.5	100	50	\	100x100
1”	22.4	50.5	126	85	8X8	126	40	43.5	100	50	110	100x100
1 ¼”	28.8	50.5	126	100	8X8	126	40	43.5	100	50	110	100x100
1 ½”	35.1	50.5	126	110	8X8	126	44.5	43.5	100	50	116	100x100
F45	41	64	126	110	8X8	126	46.5	43.5	100	50	118	100x100
F48	45	64	126	110	8X8	126	48.5	43.5	100	50	118	100x100
2”	47.8	50.8	160	125	10X10	133	52.5	47.5	104	52	118	100x100
F57	53	57	160	125	10X10	144	54	47.5	104	52	120	100x100
2 ½”	59.5	63.5	180	145	10X10	144	59	47.5	112	56	120	120x120
3”	72.2	76.2	180	145	11X11	144	65.5	47.5	112	56	124	140x140
3.5”	85	89	195	160	11X11	144	72	50	120	60	130	140x140
4”	97.6	101.6	215	180	11X11	144	79	50	128	64	130	140x140
4”	97.6	101.6	215	180	11X11	160	81	50	128	64	130	140x140
108	104	108	215	180	11X11	160	82.5	50	128	64	152	\
114.3	110.3	114.3	215	180	11X11	160	82.5	52.5	160	80	152	\
133	128	133	245	210	11X11	220	94.5	52.5	160	80	178	\
6”	146.8	152.4	280	240	14X14	220	110	52.5	180	90	198	\
159	153	159	280	240	14X14	220	110	52.5	180	90	198	\
8”	197.6	203.2	335	295	14X14	360	145	52.5	180	90	270	\
219	211	219	335	295	14X14	360	145	52.5	180	90	270	\
10”	247.2	254	390	350	14X14	360	174	52.5	\	\	270	\

donjoy-food-grade-stainless-steel-clamped-type-electric-sanitary-butterfly-valve-picture-6

SIZE	Dn	D	D2	D3	KXK	J	H	H1	A3	A1	A4	of
DN10	10	13	\	\	8X8	126	40	43.5	100	50	\	\
DN15	15	18	95	65	8X8	126	40	43.5	100	50	110	100x100
DN20	19	22	105	85	8X8	126	40	43.5	100	50	110	100x100
DN25	25	28	115	100	8X8	126	40	43.5	100	50	110	100x100
DN32	31	34	135	110	8X8	126	44.5	43.5	100	50	116	100x100
DN40	37	40	145	110	8X8	126	46.5	43.5	100	50	118	100x100
DN50	49	52	160	110	8X8	126	48.5	43.5	100	50	120	100x100
DN65	66	70	180	125	10X10	133	52.5	47.5	104	52	124	120x120
DN80	81	85	195	125	10X10	144	54	47.5	104	52	130	140x140
DN100	100	104	215	145	10X10	144	59	47.5	112	56	152	140x140
DN125	125	129	245	145	11X11	144	65.5	47.5	112	56	178	\
DN150	150	154	280	180	11X11	144	79	50	128	64	198	\
DN200	200	204	335	180	11X11	160	82.5	50	128	64	270	\
DN250	250	254	390	210	11X11	220	94.5	52.5	160	80	270	\

Lưu ý

Sản phẩm Donjoy food grade stainless steel clamped type electric sanitary butterfly valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
