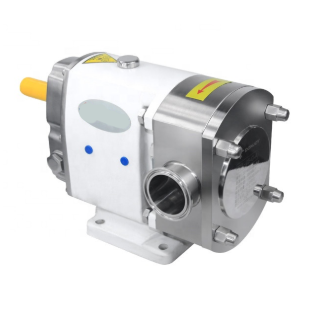

DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing

Name: DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing

Model NO.: TUL
FOB Price: USD 900.00-5000.00 / set
Min order:1 set
Accept Min order: Yes
Supply Ability:100 set / Month
Country of Origin: Ningbo or Shanghai

Product Description

Place of Origin: CN;ZHE
Structure: Gear Pump
Power: Electric
Pressure: Low Pressure
Usage: food &dairy processing
Fuel: electric
Application: transmission
Brand Name: donjoy
Model Number: TUL

DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing

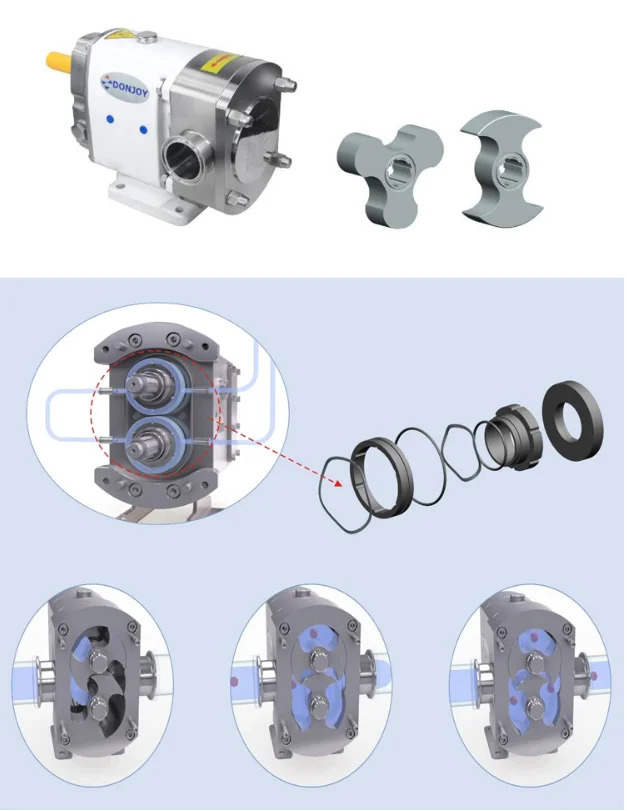

Product structure

Technical Parameters

Max flow	90m3/h
Max pressure	15bar
Max temperature	150 °C
Max speed	750 R.P.M
Surface treatment	Ra≤0.8μm, Ra≤0.6μm, Ra≤0.4μm
Material	316L, ASME BPE 316L
Certification	3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Dimensions

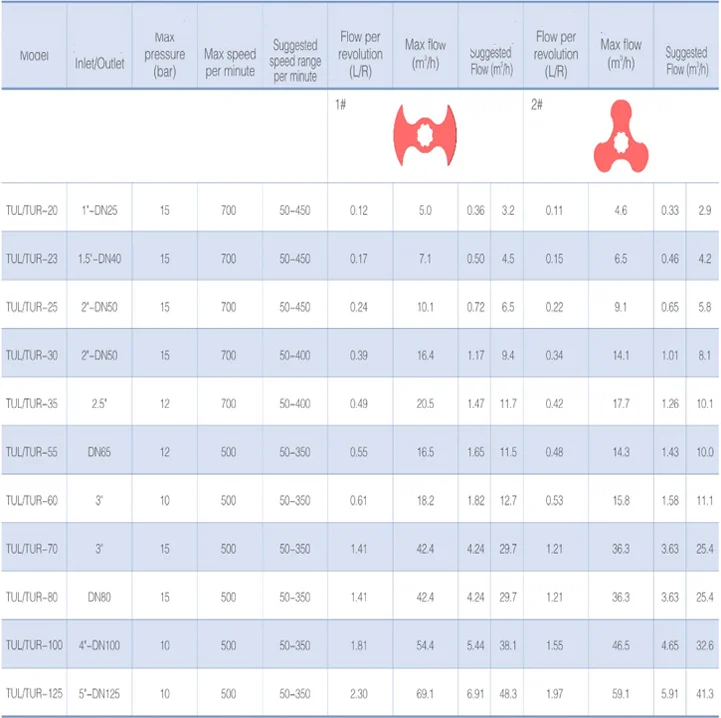

TU&STU series lobe pump, parameter selection table

DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing-3

Lưu ý

Sản phẩm DONJOY Horizontal Positive Displacement Rotary Lobe Pump for meat processing được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
