DONJOY HOT SALE Stainless steel sanitary Electric actuators

0 đánh giá
Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Mô tả

Đánh giá

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-1

DONJOY HOT SALE Stainless steel sanitary Electric actuators

  • Model NO.: electric
  • FOB Price: USD 109.00-409.00 / pieces
  • Min order:2 pieces
  • Accept Min order: Yes
  • Supply Ability:1000 pieces / Month
  • Country of Origin: Shanghai or NingboTop of Form Bottom of Form

Product Description

  • Place of Origin: CN;ZHE
  • Application: General
  • Temperature of Media: Normal Temperature
  • Power: Electric
  • Structure: Control
  • Media: Other
  • Brand Name: Donjoy
  • Model Number: electric

DONJOY HOT SALE Stainless steel sanitary Electric actuators

Product structure

 donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-4

Technical Parameters

Product Name:

DONJOY HOT SALE Stainless steel sanitary Electric actuators

Valve Body Material:

AISI304, AISI316L

Model:

DJ-ZX/DJ-5/DJ-10/DJ-20/DJ-50/DJ-100/DJ-200

Action time:

7s-100s

Output torque:

6N*M--2000N*M

Outputted signal:

4-20mA.DC

Product type:

Standard switch type (B),Passive contact type (S),Position signal type (K),Opening degree signal type (R),Modulating type (A)

Operate:

Electric

Dimensions

HL-05 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-10

HL-05 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-11

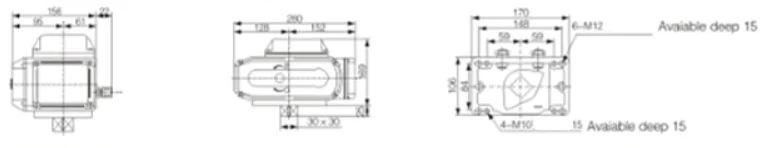

HL-25/50 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-12

HL-100/200 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-9

Selection table

Model

Motor power

Rated current

Output torque Operation time (S)

DC24V

AC24V

AC24V

AC220-240V

AC380-420V

DC24V

AC24V AC110V AC220V-240V AC380-420V



DJ-5

10W

2A

22A

0.48A

0.24A

30Nm/6s 50SNm/10

15Nm/10S, 30Nm/20S 50Nm/30S



DJ-10

23W

24A

3A

0.64A

0.32A

100Nm/10S

50Nm/15S, 60Nm/20S 100Nm/30S



DJ-20

40W

85A

5A

0.9A

0.48A

200Nm/20S

100Nm/15S, 150Nm/20S, 200Nm/30S



DJ-50

90W

85A



2A

0.92A

150Nm/250Nm/300Nm/500Nm, 15S/20S/30S/60S



DJ-100

100W



9A

2.2A

1A

800Nm/100Nm, 30S/50S



DJ-200

100W



9A

2.2A

1.2A

2000Nm, 100S



Lưu ý

Sản phẩm DONJOY HOT SALE Stainless steel sanitary Electric actuators được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
