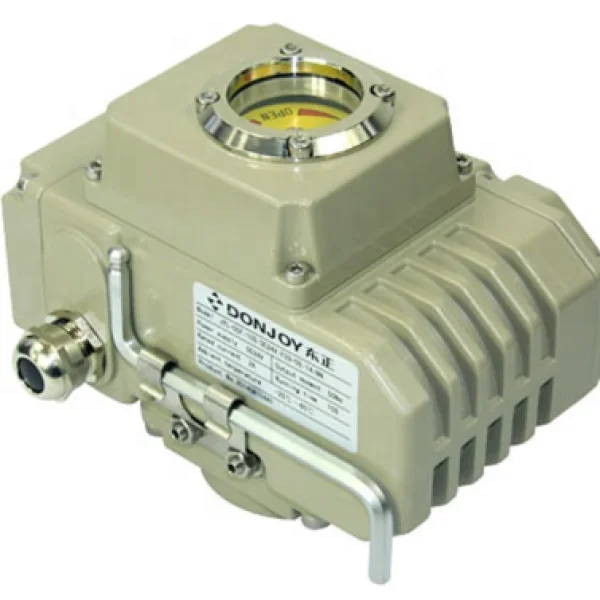

DONJOY HOT SELE Stainless steel sanitary DC24V electric actuator 4-20mA electric actuator

Name: DONJOY HOT SELE Stainless steel sanitary DC24V electric actuator 4-20mA electric actuator
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY HOT SELE Stainless steel sanitary DC24V electric actuator 4-20mA electric actuator

Model NO.: electric
FOB Price: USD 109.00-409.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or NingboTop of Form Bottom of Form

Product Description

Place of Origin: CN;ZHE
Application: General
Temperature of Media: Normal Temperature
Power: Electric
Structure: Control
Media: Other
Brand Name: Donjoy
Model Number: electric

DONJOY HOT SALE Stainless steel sanitary Electric actuators

Product structure

Technical Parameters

Product Name:	DONJOY HOT SELE Stainless steel sanitary DC24V electric actuator 4-20mA electric actuator
Valve Body Material:	AISI304, AISI316L
Model:	DJ-ZX/DJ-5/DJ-10/DJ-20/DJ-50/DJ-100/DJ-200
Action time:	7s-100s
Output torque:	6NM--2000NM
Outputted signal:	4-20mA.DC
Product type:	Standard switch type (B),Passive contact type (S),Position signal type (K),Opening degree signal type (R),Modulating type (A)
Operate:	Electric

Dimensions

HL-05 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-10

HL-05 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-11

HL-25/50 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-12

HL-100/200 series Dimension drawing

donjoy-hot-sale-stainless-steel-sanitary-electric-actuators-9

Selection table

Model	Motor power	Rated current					Output torque Operation time (S)
Model	Motor power	DC24V	AC24V	AC24V	AC220-240V	AC380-420V	DC24V	AC24V AC110V AC220V-240V AC380-420V
DJ-5	10W	2A	22A	0.48A	0.24A	0.15A	30Nm/6s 50SNm/10	15Nm/10S, 30Nm/20S 50Nm/30S
DJ-10	23W	24A	3A	0.64A	0.32A	0.19A	100Nm/10S	50Nm/15S, 60Nm/20S 100Nm/30S
DJ-20	40W	85A	5A	0.9A	0.48A	0.25A	200Nm/20S	100Nm/15S, 150Nm/20S, 200Nm/30S
DJ-50	90W	85A		2A	0.92A	0.45A	150Nm/250Nm/300Nm/500Nm, 15S/20S/30S/60S
DJ-100	100W		9A	2.2A	1A	0.48A	800Nm/100Nm, 30S/50S
DJ-200	100W		9A	2.2A	1.2A	0.48A	2000Nm, 100S
