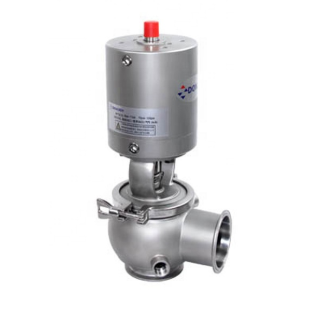

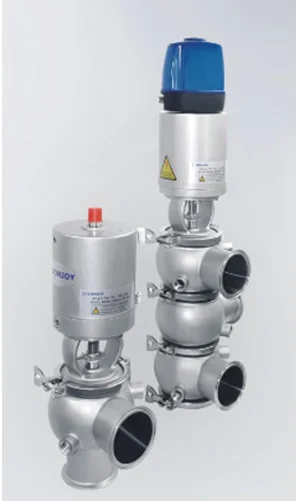

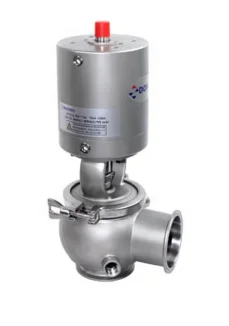

DONJOY Jacketed Type Insulation divert seat Valve
Model NO.: jaketed type
FOB Price: USD 208.00-238.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo
Product Description
Place of Origin: CN;ZHE
Power: Pneumatic
Structure: Regulating
Temperature of Media
Normal Temperature
Media: Other
Brand Name: Donjoy
Model Number: jaketed type
Port Size:DN25-100
DONJOY Jacketed Type Insulation divert seat Valve
Product structure
Technical Parameters
Product Name:
DONJOY Jacketed Type Insulation divert seat Valve
Valve Body Material:
AISI304, AISI316L
Seal Material:
EPDM
Working Pressure:
10Bar
Max. Working Temperature:
120 degree C
Availably size:
DN25-DN100
Availably connection:
CLAMP, WELD,THREAD
Operate:
Pneumatic
The heating medium interface
G1-2"

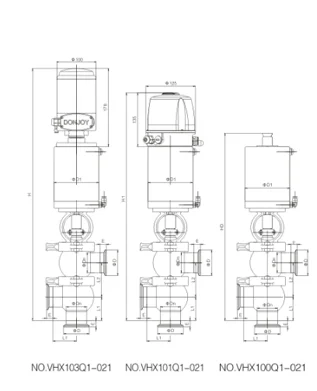

Dimensions
DIN Pneumatic Divert Seat Valve
SIZE
H
H1
HD
Dn
D
L2
D1
Weight
(kg)
6bar
10bar
DN25
543
500
381
28
50.5
50
67
88
113
12.7
6
DN32
34
55
12.7
6
DN40
40
60
12.7
6
DN50
613
570
455
52
64
70
76
113
132
12.7
8
DN65
688
645
511
70
91
99
105
132
180
12.7
15
DN80
688
645
511
85
106
99
105
132
180
12.7
15
DN100
505
765
635
104
119
114
146
180
15.8
17
INCH Pneumatic Divert Seat Valve
SIZE
H
H1
HD
Dn
D
L2
D1
Weight
(kg)
6bar
10bar
1”
543
500
381
28
50.5
50
67
88
113
12.7
6
1.25’
34
55
12.7
6
1.5”
40
60
12.7
6
2”
613
570
455
52
64
70
76
113
132
12.7
8
2.5”
688
645
511
70
91
99
105
132
180
12.7
15
3”
688
645
511
85
106
99
105
132
180
12.7
15
4”
505
765
635
104
119
114
146
180
15.8
17
VIDEO
Lưu ý
Sản phẩm DONJOY Jacketed Type Insulation divert seat Valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
