DONJOY Manual single nut single thread butterfly valve with pull handle

0 Bình luận

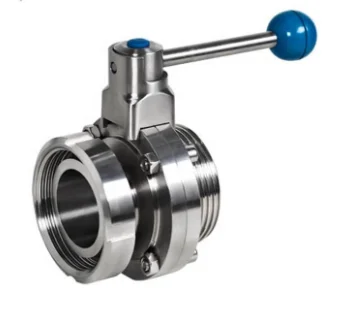

donjoy-manual-single-nut-single-thread-butterfly-valve-with-pull-handle-picture-1

DONJOY Manual single nut single thread butterfly valve with pull handle

·         Model NO.: Butterfly valve

·         FOB Price: USD 36.00-351.00 / pieces

·         Min order:10 pieces

·         Accept Min order: Yes

·         Supply Ability:5000 pieces / Month

·         Country of Origin: NINGBO OR SHANGHAI

Product Description

·         Place of Origin: CN; ZHE

·         Temperature of Media: Normal Temperature

·         Power: Manual

·         Media: Water

·         Structure: Butterfly

·         Application: General

·         Brand Name: DONJOY

·         Model Number: Butterfly valve

·         Port Size:DN40-DN150

DONJOY Manual single nut single thread butterfly valve with pull handle

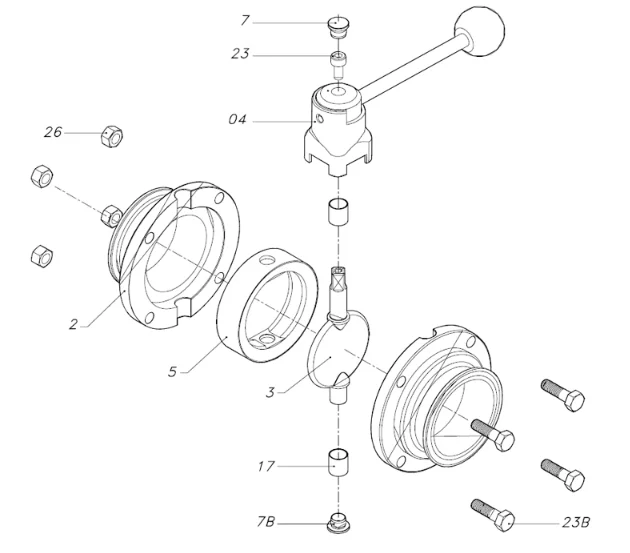

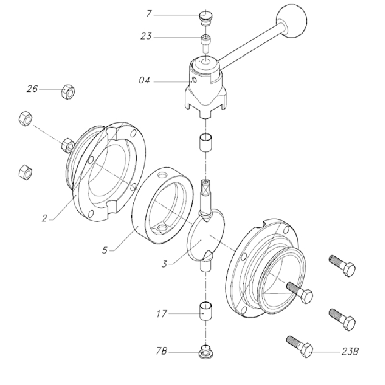

Product structure

donjoy-manual-single-nut-single-thread-butterfly-valve-with-pull-handle-picture-2

Technical Parameters

Max.working pressure

10Bar

Max.Working Temperature

120 degree C

Valve Body Material

1.4404/1.4301, SS304/SS316L

Seal Material

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Availably  size

1/2"-12", DN10-DN300

Availably connection

Clamp / weld / thread/ weld thread/ flange

Availably standard

3A/DIN/SMS/RJT/ISO/IDF

Operated

Manual, Pneumatic, Electric

Control

Sensor, C-TOP, C-top controller(AS-I)

Handle option

pull handle, plastic/SS multi-positon handle

Handle application

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Actuator application

Stainless steel actuator/ Horizontal pneumatic actuator

Certificate

ISO, PED/97/23/EC, FDA.177.2600

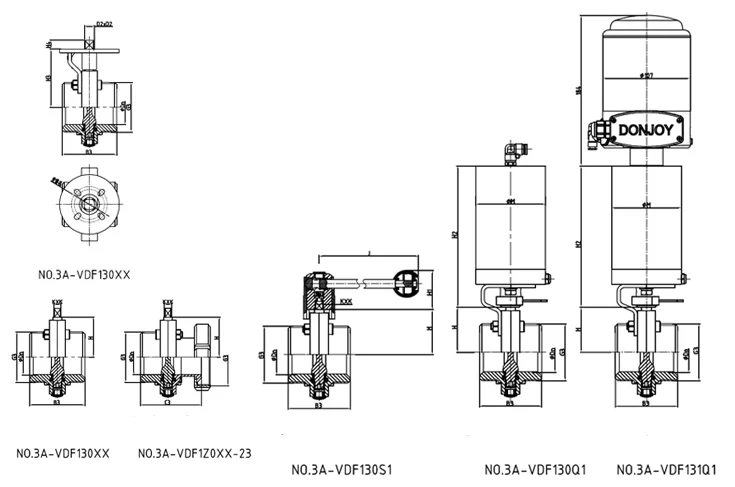

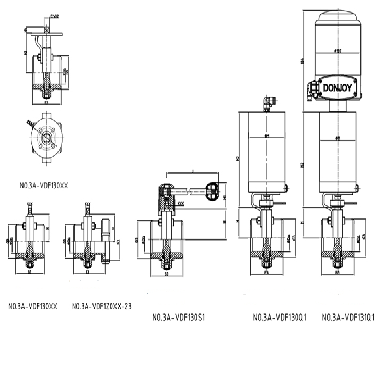

Dimensions

donjoy-manual-single-nut-single-thread-butterfly-valve-with-pull-handle-picture-3

SIZE

Dn

KXK

H

H1

H2

B3

C3

3A

H3

H4

D2



G3

1”

22.1

8X8

40

43.5

172.5

66

93

37.1X1/8Acme

68.4

13

11

F04-F05

1 ¼”

28.8

8X8

40

43.5

172.5

70

95

45.9 X1/8Acme

69.4

11.5

11

F04-F05

1 ½”

34.8

8X8

44.5

43.5

172.5

70

98

50.6 X1/8Acme

73.3

11.6

14

F04-F05

2”

47.5

10X10

52.5

47.5

172.5

76

102

64.1 X1/8Acme

81.1

13.9

14

F04-F05

2 ½”

60.2

10X10

59

47.5

172.5

80

112.5

77.6 X1/8Acme

87.5

12.5

14

F04-F05

3”

72.9

10X10

65.5

47.5

172.5

84

114.5

91.1 X1/8Acme

95.3

11.5

14

F04-F05

4”

97.4

11X11

79

50

172.5

104

128.5

119.2 X1/8Acme

109.7

17.5

17

F04-F05
