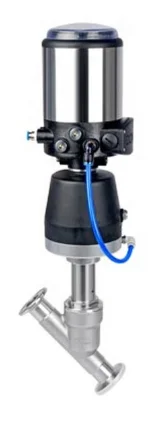

DONJOY Pneumatic Angle Seat Valve with positioner

Name: DONJOY Pneumatic Angle Seat Valve with positioner
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Pneumatic Angle Seat Valve with positioner

Model NO.: VJZ
FOB Price: USD 144.00-165.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo

Product Description

Place of Origin: CN;ZHE
Temperature of Media: Normal Temperature
Power: Pneumatic
Media: Water
Structure: Angle
Brand Name: Donjoy
Port Size:DN15-65
Application: Flow control
Model Number: VJZ

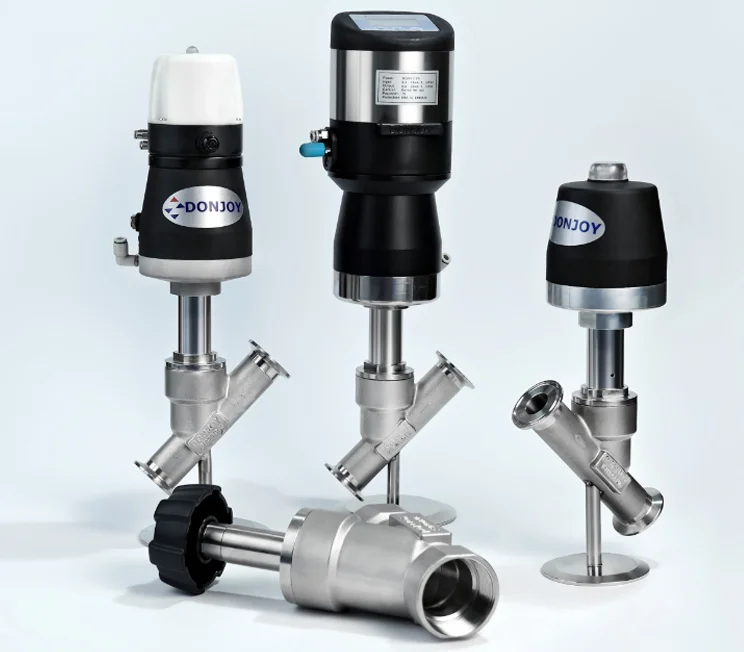

Product structure

Technical Parameters

Product Name:	Angle Seat Valve with positioner
Valve Body Material:	CF8/304 or CF8M/316L
Seal Material:	EPDM
Working Pressure:	8 Bar, 10Bar(option).
Max. Working Temperature:	120 degree C
Availably size:	DN15-DN65 or 0.5"- 2.5"
Availably connection:	Thread,Weld,Clamp,BSP/BSP/NPT
Operate:	Pneumatic
Certificate:	FDA,CE

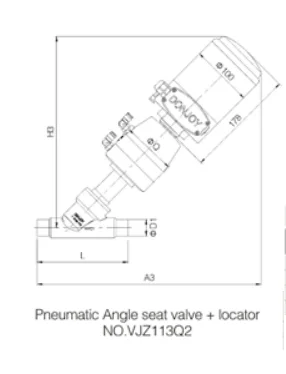

Dimensions

donjoy-pneumatic-3

INCH

SIZE	t/mm	D	D1	L	L2	A	A1	A2	A3	H	H1	H2	H3	LM	M	Q	J
0.5’	1.5/1.65	12.7	25.4	145	95	197.5	232	310	360	141.5	275.5	275.5	325	14	0.5’	70	87.2
0.75’	1.5/1.65	19.1	25.4	145	95	197.5	232	310	360	141.5	275.5	275.5	325	14	0.75’	70	87.2
1’	1.5/1.65	25.4	50.5	152	105	199	256	319	370	145	282	282	330	16	1’	100	87.2
1.25’	1.5/1.65	31.8	50.5	152	120	232	272	330	3880	175	295	295	343	16	1.25’	100	114
1.5’	1.5/1.65	38.1	50.5	182	130	232	272	335	385	175	295	295	343	18	1.5’	100	114
1.5’	1.5/1.65	38.1	50.5	182	130	232	307	370	420	175	300	300	378	18		135	114
2’	1.5/1.65	50.8	64	210	155	268	345	400	450	190	350	350	398	24	2’	135	138
2.5’	1.65/2.0	63.5	77.5	210	255	275	350	485	496	220	370	370	418	28	2.5’	135	138
3’	1.65/2.0	76.2	91	210	255	275	350	485	496	220	370	370	418	28	3’	135	138

DIN

SIZE	t/mm	D	D1	L	L2	A	A1	A2	A3	H	H1	H2	H3	LM	M	Q	J
DN10	1.5	13	34	145	95	197.5	232	310	360	141.5	275.5	275.5	325	14	0.5’	70	87.2
DN15	1.5	18/19	34	145	95	197.5	232	310	360	141.5	275.5	275.5	325	14	0.75’	70	87.2
DN25	1.5	28/29	50.5	152	105	199	256	319	370	145	282	282	330	16	1’	100	87.2
DN32	1.5	34/35	50.5	152	120	232	272	330	3880	175	295	295	343	16	1.25’	100	114
DN40	1.5	40/41	50.5	182	130	232	272	335	385	175	295	295	343	18	1.5’	100	114
DN40	1.5	40/41	50.5	182	130	232	307	370	420	175	300	300	378	18		135	114
DN50	1.5	52/53	64	210	155	268	345	400	450	190	350	350	398	24	2’	135	138
DN65	2.0	70	91	210	255	275	350	485	496	220	370	370	418	28	2.5’	135	138

Lưu ý

Sản phẩm DONJOY Pneumatic Angle Seat Valve with positioner được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
