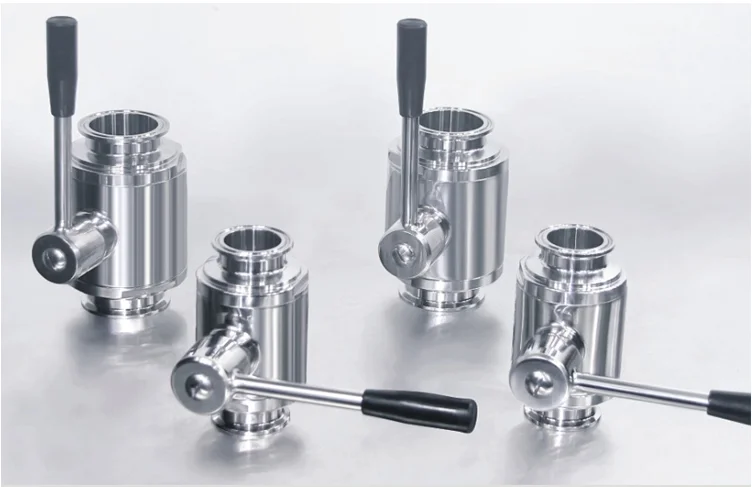

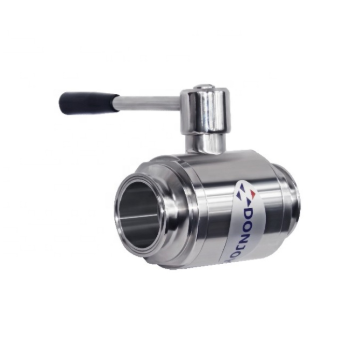

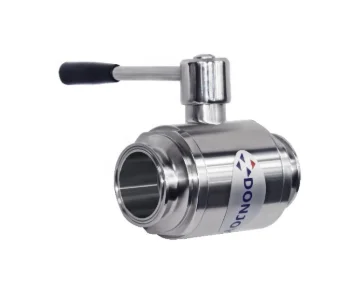

DONJOY Pneumatic clamp direct way ball valve

·   Model NO.: DIN

·   FOB Price: USD 84.00-96.00 / pieces

·   Min order:2 pieces

·   Accept Min order: Yes

·   Supply Ability:5000 pieces / Month

·   Country of Origin: Ningbo/Shanghai



Product Description

·         Place of Origin: CN; ZHE

·         Temperature of Media: Normal Temperature

·         Power: Pneumatic

·         Media: Water

·         Structure: Ball

·         Brand Name: DONJOY

·         Model Number: DIN

·         Port Size:DN10-DN100

Product structure





Applications

It is widely used in beverage, breweng, oil refinery, cosmetic chemical industries…..

Technical Parameters

Product Name:

DONJOY Pneumatic clamp direct way ball valve

Valve Body Material:

SS304 or SS316L

Seal Material:

PTFE

Max. Working Pressure:

10Bar

Max. Working Temperature:

120 degree C

Availably size:

DN10-DN100 or 1/2"- 4"

Availably connection:

Thread, Weld, Clamp, Flange

Availably standard:

DIN,SMS,3A

Certificate:

CE,FDA,3A

Operated:

Manual

Dimensions



DIN Direct way ball valve

INCH Direct way ball valve

SIZE

Dn

D

D1

A

H

J

DN10

9.7

13

34

95

58

126.5

DN15

16

19

34

95

58

126.5

DN20

19

22

34

95

58

126.5

DN25

25

28

50.5

100

68

126.5

DN32

31

34

50.5

108

70

126.5

DN40

37

40

50.5

123

83

164.5

DN50

49

52

64

136

89

164.5

DN65

66

70

91

162

113

164.5

DN80

81

85

106

180

123

233

DN100

100

104

119

206

137

233

SIZE

Dn

D

D1

A

H

J

½”

9.7

13

34

95

58

126.5

¾”

16

19

34

95

58

126.5

1”

19

22

34

95

58

126.5

1 1/4”

25

28

50.5

100

68

126.5

1 1/2”

31

34

50.5

108

70

126.5

2”

37

40

50.5

123

83

164.5

2 1/2”

49

52

64

136

89

164.5

3”

66

70

91

162

113

164.5

4”

81

85

106

180

123

233
