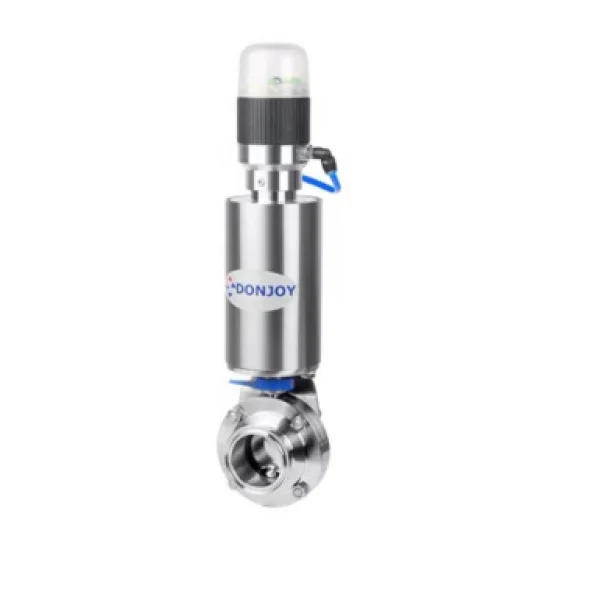

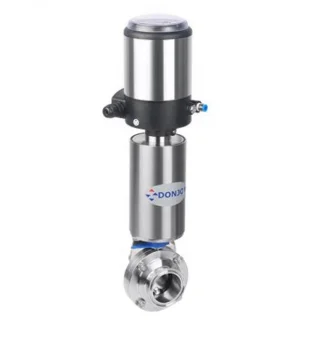

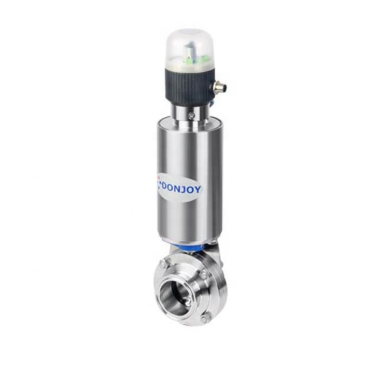

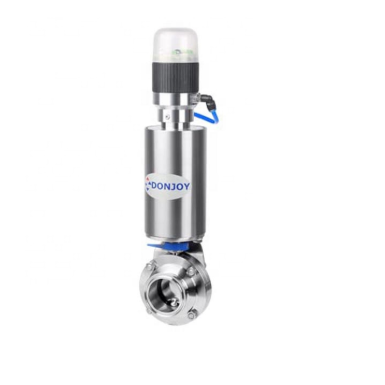

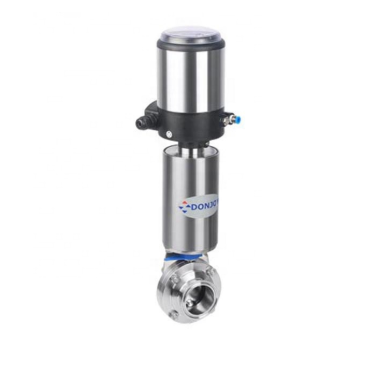

DONJOY sanitary clamp pneumatic butterfly valve with positioner for beer

Name: DONJOY sanitary clamp pneumatic butterfly valve with positioner for beer
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY sanitary clamp pneumatic butterfly valve with positioner for beer

· Model NO.: Butterfly valve

· FOB Price: USD 133.00-170.00 / pieces

· Min order:2 pieces

· Accept Min order: Yes

· Supply Ability:5000 pieces / Month

· Country of Origin: NINGBO& SHANGHAI

Product Description

· Structure: Butterfly

· Power: Pneumatic

· Temperature of Media: Medium Temperature

· Media: Water

· Place of Origin: CN; ZHE

· Port Size:DN10-DN300, 1/2"-12"

· Model Number: Butterfly valve

· Brand Name: DONJOY

· Application: Dairy, food, beverage, pharmacy, cosmetic, Chemical

DONJOY sanitary clamp pneumatic butterfly valve with positioner for beer

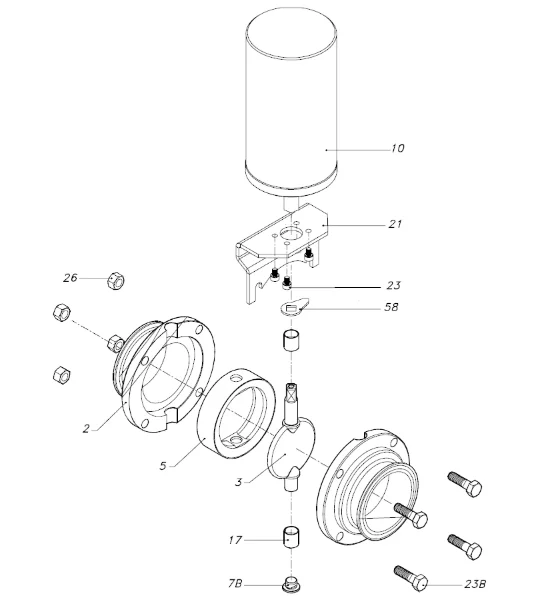

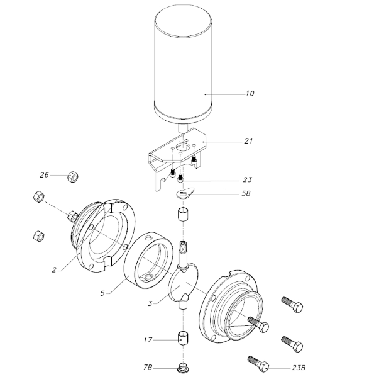

Product structure

Technical Parameters

Max.working pressure	10Bar
Max.Working Temperature	120 degree C
Valve Body Material	1.4404/1.4301, SS304/SS316L
Seal Material	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably size	1/2"-12", DN10-DN300
Availably connection	Clamp / weld / thread/ weld thread/ flange
Availably standard	3A/DIN/SMS/RJT/ISO/IDF
Operated	Manual, Pneumatic, Electric
Control	Sensor, C-TOP, C-top controller(AS-I)
Handle option	pull handle, plastic/SS multi- positon handle
Handle application	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Actuator application	Stainless steel actuator/ Horizontal pneumatic actuator
Certificate	ISO, PED/97/23/EC, FDA.177.2600

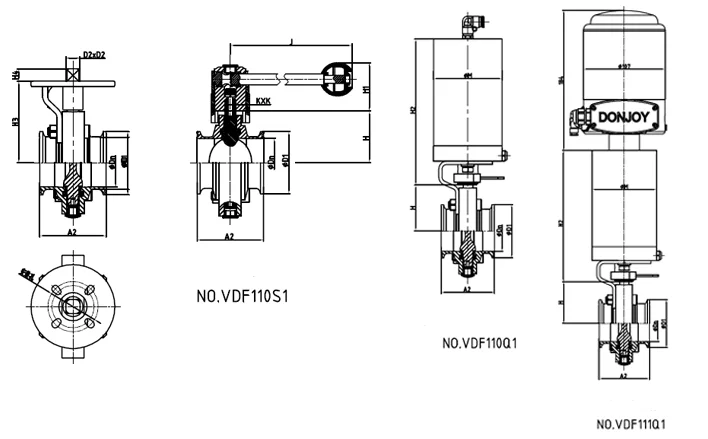

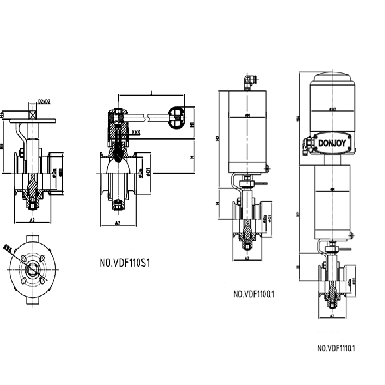

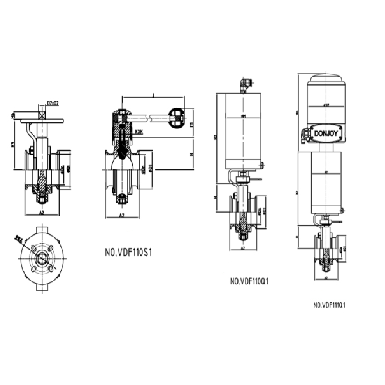

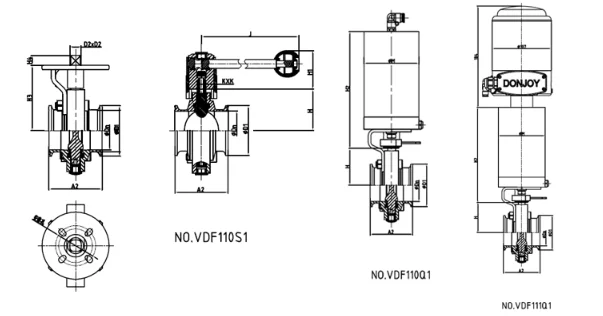

Dimensions

donjoy-sanitary-clamp-pneumatic-butterfly-valve-with-positioner-for-beer-picture-5

SIZE	Dn	D1	J	H	H1	H2	M	A2	H3	H4	D2
½”	9.7	25.4	126	40	43.5	172.5	86	66	68.5	12.5	11	F04-F05
¾”	16.1	25.4	126	40	43.5	172.5	86	66	68.5	12.5	11	F04-F05
1”	22.4	50.5	126	40	43.5	172.5	86	66	68.4	13	11	F04-F05
1 ¼”	28.8	50.5	126	40	43.5	172.5	86	66	69.4	11.5	11	F04-F05
1 ½”	35.1	50.5	126	44.5	43.5	172.5	86	70	73.3	11.6	14	F04-F05
F45	41	64	126	46.5	43.5	172.5	86	74	73.3	11.6	14	F04-F05
F48	45	64	126	48.5	43.5	172.5	86	76	73.3	11.6	14	F04-F05
2”	47.8	64	133	52.5	47.5	172.5	86	76	81.1	13.9	14	F04-F05
F57	53	77.5	144	54	47.5	172.5	86	76	87.5	12.5	14	F04-F05
2 ½”	59.5	77.5	144	59	47.5	172.5	86	80	87.5	12.5	14	F04-F05
3”	72.2	91	144	65.5	47.5	172.5	86	84	95.3	11.5	14	F04-F05
3.5”	85	106	144	72	50	172.5	86	86	99.4	15.5	14	F04-F05
4”	97.6	119	144	79	50	172.5	86	104	109.7	17.5	17	F04-F05
4”	97.6	119	160	81	50	172.5	86	104	111.5	15.7	17	F04-F05
108	104	119	160	82.5	50	172.5	86	106	111.5	15.7	17	F04-F05
114.3	110.3	130	160	82.5	52.5	248	113	106	111.5	15.7	17	F04-F05
133	128	144.5	220	94.5	52.5	248	113	122	158.6	19	17	F07
6”	146.8	167	220	110	52.5	285	133	146	174	19	17	F07
159	153	183	220	110	52.5	285	133	146	174	19	17	F07
8”	197.6	217.4	360	145	52.5	306	166	166	208	20	22	F07
219	211	233.5	360	145	52.5	306	166	166	208	20	22	F07
10”	247.2	268	360	174	52.5	306	166	166	236.7	20	22	F07
12”	298.2	319	360	174	52.5	306	166	146	236.7	20	22	F07

donjoy-sanitary-clamp-pneumatic-butterfly-valve-with-positioner-for-beer-picture-6

SIZE	Dn	D1	J	H	H1	H2	M	A2	H3	H4	D2
DN10	10	34	126	40	43.5	172.5	86	66	68.4	12.6	11	F04-F05
DN15	15	34	126	40	43.5	172.5	86	66	68.4	12.6	11	F04-F05
DN20	19	34	126	40	43.5	172.5	86	66	68.4	12.6	11	F04-F05
DN25	25	50.5	126	40	43.5	172.5	86	66	69	12	11	F04-F05
DN32	31	50.5	126	44.5	43.5	172.5	86	66	73.5	12.1	11	F04-F05
DN40	37	50.5	126	46.5	43.5	172.5	86	70	73.5	14	14	F04-F05
DN50	49	64	133	54.5	47.5	172.5	86	76	82.9	12.8	14	F04-F05
DN65	66	91	144	64	47.5	172.5	86	80	90.6	14	14	F04-F05
DN80	81	106	160	70.5	50	172.5	86	84	100	14.6	14	F04-F05
DN100	100	119	160	81	50	172.5	86	104	109.7	19	17	F04-F05
DN125	125	144.5	220	94.5	52.5	248	113	122	158.6	19	17	F07
DN125	125	155	220	94.5	52.5	248	113	122	158.6	19	17	F07
DN150	150	167	220	110	52.5	285	133	146	174	19	17	F07
DN150	150	183	220	110	52.5	285	133	146	174	19	17	F07
DN200	200	217.4	360	145	52.5	306	166	166	208	20	22	F07
DN200	200	233.5	360	145	52.5	306	166	166	208	20	22	F07
DN250	250	268	360	174	52.5	306	166	167	236.7	20	22	F07
DN300	300	319	360	174	52.5	306	166	146	236.7	20	22	F07

Lưu ý

Sản phẩm DONJOY sanitary clamp pneumatic butterfly valve with positioner for beer được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
