DONJOY Sanitary high flow rate high discharge head stainless steel water beverage centrifugal pump

Name: DONJOY Sanitary high flow rate high discharge head stainless steel water beverage centrifugal pump
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Sanitary high flow rate high discharge head stainless steel water beverage centrifugal pump

Model NO.: Centrifugal pump
FOB Price: USD 300.00-3000.00 / set
Min order: 1 set
Accept Min order: Yes
Supply Ability: 1000 set / Quarter
Country of Origin: NINGBO OR SHANGHAI

Product Description

Place of Origin: CN; ZHE
Structure: Single-stage Pump
Usage: Water
Power: Electric
Pressure: High Pressure
Brand Name: DONJOY
Model Number: Centrifugal pump

DONJOY Sanitary high flow rate high discharge head stainless steel water beverage centrifugal pump

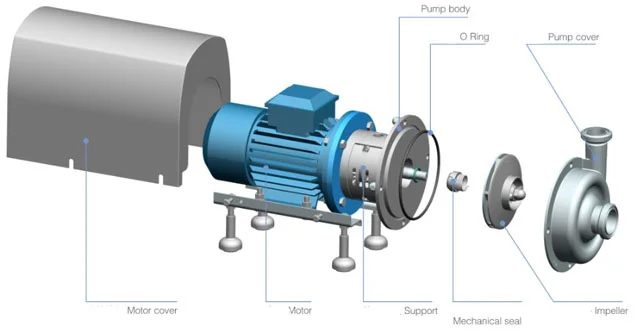

Product structure

Technical Parameters

Max flow	40m3/h
Max head	40m
Max temperature	-20°C to 140 °C
Power	1.5KW-5.5KW
Material	304/316L
Surface treatment	Ra≤0.8μm ≤Ra0.6μm, Ra ≤0.4μm
Mechanical seal	Single mechanical seal, double mechanical seal
Inlet/Outlet	Threaded, clamped, flange, Aseptic flange
Certification	MD/06/42-EC NO.70521616101-00; FDA 177.2600 ; USP CLASS II; EG/VO 1935/2004

Dimensions

Model	Power	Flow rate (m³)	Head (M)	Inlet/Outlet
BS-4	2.2KW	20	14	2'/1.5'
	2.2KW	18	18
	2.2KW	15	21
	2.2KW	12	23
	2.2KW	10	24
	1.5KW	8	25
	1.5KW	5	25
	1.5KW	3	26
BS-6	4KW	29	13	2.5'/2'
	4KW	25	20
	3KW	20	25
	3KW	15	27
	3KW	12	29
	3KW	10	30
	3KW	5	32
BS-10	5.5KW	35	19	3'/2'
	5.5KW	30	26	3'/2'
	5.5KW	25	26	2.5'/2'
	5.5KW	20	29
	5.5KW	15	31
	3KW	10	34
	3KW	5	36
BS-12	5.5KW	40	25	3'/2'
	5.5KW	35	29
	5.5KW	30	31
	5.5KW	25	31
	4KW	20	33	2.5'/2'
	4KW	15	35
	3KW	10	37
