DONJOY sanitary mixing proof valve with controller

Name: DONJOY sanitary mixing proof valve with controller
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

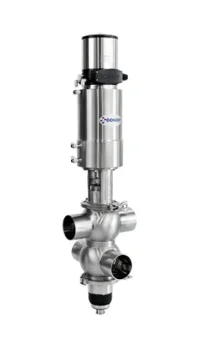

DONJOY sanitary mixing proof valve with controller

Model NO.: VFT101Q1-41022-0°
FOB Price: USD 969.00-1108.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo

Product Description

Place of Origin: CN; ZHE
Temperature of Media: Medium Temperature
Power: Pneumatic
Media: Water
Structure: Regulating
Brand Name: DONJOY
Model Number:VFT101Q1-41022-0°
Port Size:DN40-DN100 or 1.5"-4"

Product structure

Technical Parameters

Product Name:	Mixing proof cavity spray valve with controller
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM/NBR/FPM
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	Thread, Weld, Clamp
Availably standard:	DIN,SMS,RJT,3A
Operated:	Pneumatic, C-Top, Process controller
Certificate:	FDA,CE

Dimensions

(INCH) Mixing proof valve

SIZE	D1	D2	D3	H1	H2	H	welding	clamp
SIZE	D1	D2	D3	H1	H2	H	L	L1
1.5”	38.1	113	50.5	70	204	356.5	160	185.4
2”	50.8	113	64	80	224	356.5	160	185.4
2/2”	63.5	132	77.5	96	263.5	396	220	245.4
3”	76.2	132	91	110	281.5	404	220	245.4
4”	101.6	180	119	130	338.5	455.5	254	285.6

(DN) Mixing proof valve

SIZE	D1	D2	D3	H1	H2	H	welding	clamp
SIZE	D1	D2	D3	H1	H2	H	L	L1
DN40	40/41	118	50.5	70	204	356.5	160	185.4
DN50	52/53	118	64	80	224	356.5	160	185.4
DN65	70	133	77.5	96	263.5	396	220	245.4
DN80	85	133	91	110	281.5	404	220	245.4
DN100	104	168	119	130	338.5	455.5	254	285.6

Lưu ý

Sản phẩm DONJOY sanitary mixing proof valve with controller được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
