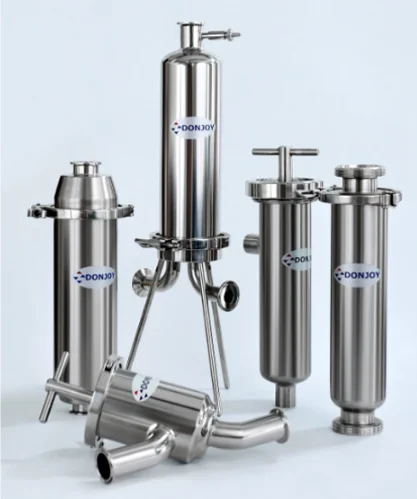

DONJOY sanitary stainless steel angle type mesh filter for milk strainer

Name: DONJOY sanitary stainless steel angle type mesh filter for milk strainer
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY sanitary stainless steel angle type mesh filter for milk strainer

FOB Price: USD 73.50-84.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo /Shanghai or as per customers requireTop of FormBottom o

Product Description

Place of Origin: CN;ZHE
Warranty:1 Year
After-sales Service Provided: Field maintenance and repair service
Brand Name: DONJOY
Applicable Industries: Food & Beverage Factory

DONJOY sanitary stainless steel angle type mesh filter for milk strainer

Product structure

Technical Parameters

Housing	316L/304
Gasket	EPDM according to FDA 177.2600
Inner polish	Ra<0.8μm
Outside polish	mirror polish
Sizes	DN25-DN150
Working temperature	-10℃-+120℃
Max working pressure	10bar
Connections	clamp, thread, weld

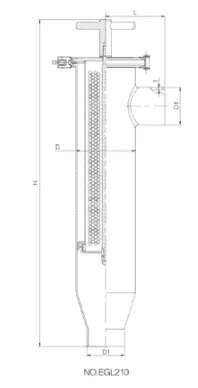

Dimensions

donjoy-sanitary-stainless-steel-angle-type-mesh-filter-for-milk-strainer-4

DIN Angel Type Filter

SIZE	H	L	D1		D	t
SIZE	H	L	1	2	D	t
DN25	431	77.5	28	29	85	1.5
DN32	431	77.5	34	35	85	1.5
DN40	431	77.5	40	43	85	1.5
DN50	431	77.5	52	53	85	1.5
DN65	561	101	70	-	102	2.0
DN80	580	107	85	-	114	2.0
DN100	724	105.5	100	-	154	2.0

INCH Angel Type Filter

SỈZE	H	L	D1	D
1’	431	77.5	25.4	85
1 ¼’	431	77.5	31.8	85
1 ½’	431	77.5	38	85
2’	431	77.5	50.8	85
2 ½’	561	101	63.5	102
3’	580	107	76.2	114
3 ½’	580	107	89	114
4’	724	105.5	101.6	154

Lưu ý

Sản phẩm DONJOY sanitary stainless steel angle type mesh filter for milk strainer được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
