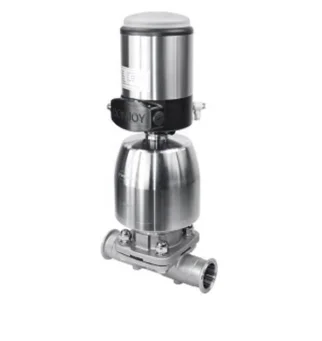

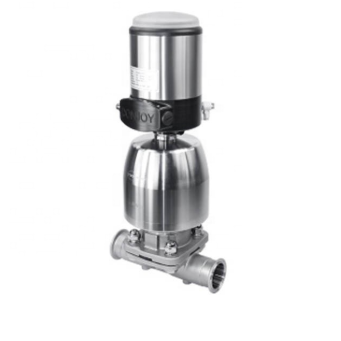

Donjoy Sanitary valve/ pneumatic diaphragm valve with positioner

Name: Donjoy Sanitary valve/ pneumatic diaphragm valve with positioner
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Donjoy Sanitary valve/ pneumatic diaphragm valve with positioner

· Model NO.: 12030902

· FOB Price: USD 735.00-1310.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: NINGBO OR SHANGHAI

Product Description

· Structure: Diaphragm

· Power: Pneumatic

· Temperature of Media: Medium Temperature

· Media: Water

· Place of Origin: CN; ZHE

· Port Size:1"-3",DN20-DN65

· Model Number:12030902

· Brand Name: DONJOY

· Application: Dairy, food, beverage

Donjoy Sanitary valve/ pneumatic diaphragm valve with positioner

Product structure

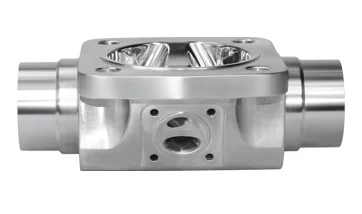

Diapharagm valve forging body

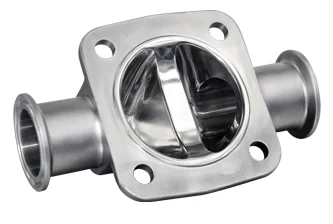

Diapharagm valve casging body

donjoy-sanitary-valve-pneumatic-diaphragm-3

donjoy-sanitary-valve-pneumatic-diaphragm-4

Technical Parameters

Availably size	1"-4", DN25-DN100
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	Normally close EPDM 8 bar, PTFE 6 bar(option) Normally close EPDM 6 bar, PTFE 4.5 bar(standard) and double action EPDM 8 bar, PTFE 6 bar
Actuators	Assemble different actuators can meet the higher pressure rating
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Dimensions

DIN32676/DIN11850-1/2

SIZE	D	D1	L	H	L1
DN20	22	34	117	17.2	22
DN25	28	50.5	127	17.2	25
DN32	34	50.5	146	21.2	25
DN40	40	50.5	159	24.2	25
DN50	52	64	190	31.5	30
DN65	70	91	216	40	30
DN80	85	106	254	50
DN100	104	119	305	58

ASME BPE/ASTM 269

SIZE	D	D1	L	H	L1
1”	25.4	50.5	127	17.2	20
1.25”	31.8	50.5	146	21.2	20
1.5”	38.1	50.5	159	24.2	20
2”	50.8	64	190	31.5	30
2.5”	63.5	77.5	216	40	30
3”	76.2	91	254	43	30
3.5”	89	106	254	50
4”	101.6	119	305	58

ISO1127

SIZE	D	D1	L	H
¾”	26.9	50.5	127	17.2
1”	33.7	50.5	146	21.2
1.1/4’	42.4	50.5	159	24.2
1.5”	48.3	64	190	31.5
2’	60.3	77.5	216	40
2.5”	76.2	91	254	43

Lưu ý

Sản phẩm Donjoy Sanitary valve/ pneumatic diaphragm valve with positioner được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
