DONJOY SS304 and SS316L sanitary centrifugal dairy milk pump with stainless steel protective cover

Name: DONJOY SS304 and SS316L sanitary centrifugal dairy milk pump with stainless steel protective cover
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY SS304 and SS316L sanitary centrifugal dairy milk pump with stainless steel protective cover

FOB Price: USD 462.00-528.00 / set
Min order: 1 set
Accept Min order: Yes
Supply Ability: 1000 set / Week
Country of Origin: NINGBO OR SHANGHAI

Product Description

Place of Origin: CN; ZHE
Applicable Industries: Food & Beverage pumps
Brand Name: DONJOY

DONJOY food grade centrifugal pump with abb motor

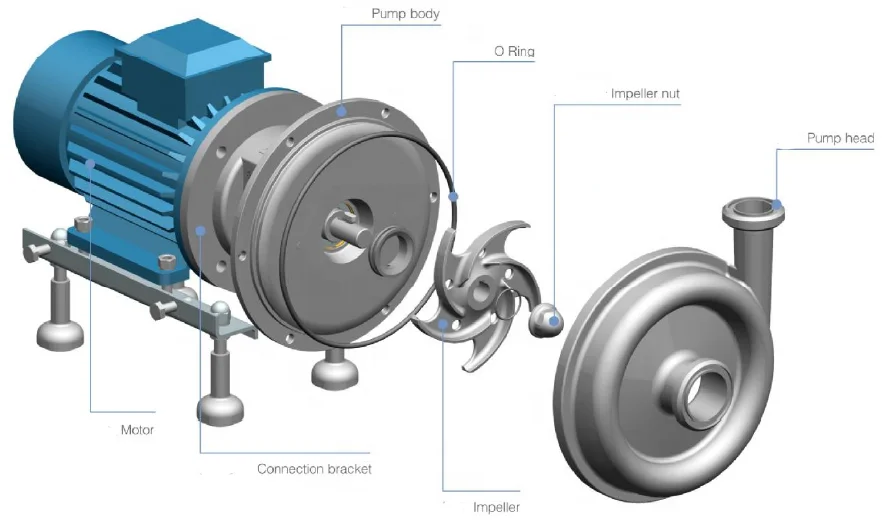

Product structure

donjoy-ss304-and-ss316l-sanitary-centrifugal-dairy-milk-pump-with-stainless-steel-protective-cover-2

Technical Parameters

Max flow	1m3/h to 140m3/h
Max head	70m
Max temperature	-20°C to 140 °C
Power	0.37KW-30KW
Material	304/316L
Surface treatment	Ra≤0.8μm ≤Ra0.6μm, Ra ≤0.4μm
Mechanical seal	Single mechanical seal, double mechanical seal
Inlet/Outlet	Threaded, clamped, flange, Aseptic flange
Certification	3-A-02-10 NO.1579; MD/06/42-EC NO.70521616101-00; FDA 177.2600 ; USP CLASS II; EG/VO 1935/2004

Dimensions

Model	Power	Flow rate (m³)	Head (M)	Inlet/Outlet	Weight (KG)
DJ-KLX-10	1.1KW	3	22	1.5'/1.5'	30
	1.1KW	5	22		30
	1.5KW	3	22		36
	1.5KW	5	22		36
	1.5KW	8	22		36
	1.5KW	9	22		36
	1.5KW	12	20		36
	1.5KW	15	18		36
	2.2KW	15	18		40
	2.2KW	18	16		40
DJ-KLX-15	1.5KW	3	28	2'/1.5'	39
	1.5KW	5	28		39
	1.5KW	8	26		39
	2.2KW	8	26		42
	2.2KW	10	25		42
	2.2KW	15	22		42
	2.2KW	18	18		42
	3.0KW	18	18		54
	2.2KW	20	16		42
	3.0KW	20	16		54

Model	Power	Flow rate (m³)	Head (M)	Inlet/Outlet	Weight (KG)
DJ-KLX-20-1	2.2KW	5	36	2'/2'	47
	3.0KW	5	36		56
	3.0KW	10	36		56
	4.0KW	10	36		61
	4.0KW	15	35		61
	4.0KW	20	33		61
	4.0KW	25	30		61
	5.5KW	25	30		83
	5.5KW	30	30	2.5'/2'	83
	5.5KW	38	32	2.5'/2'	83
DJ-KLX-20-2	5.5KW	20	40	2'/2'	82
	5.5KW	25	37	2'/2'	82
	5.5KW	30	36	2.5'/2'	82
	5.5KW	36	32		82
	7.5KW	40	30		86
	7.5KW	45	28		86
DJ-KLX-25	4.0KW	5	50	2.5'/1.5'	61
	5.5KW	10	50		82
	5.5KW	15	48		82
	5.5KW	20	45		82
DJ-KLX-30	5.5KW	10	60	2.5'/1.5'	83
	5.5KW	15	55		83
	5.5KW	20	50		83
	7.5KW	20	50		87
	7.5KW	25	45		87
	7.5KW	30	40		87

Lưu ý

Sản phẩm DONJOY SS304 and SS316L sanitary centrifugal dairy milk pump with stainless steel protective cover được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
