DONJOY SS304 and SS316L stainless steel sanitary pneumatic divert seat valve with position sensors

Model NO.: VHX103Q1-020
FOB Price: USD 564.00-644.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo

Product Description

Structure: Regulating
Power: Pneumatic
Temperature of Media: Medium Temperature
Media: Water
Place of Origin: CN; ZHE
Port Size:DN25-DN100 or 1"-4"
Brand Name: DONJOY
Application: General
Model Number:VHX103Q1-020

DONJOY SS304 and SS316L stainless steel sanitary pneumatic divert seat valve with position sensors

Product structure

donjoy-ss304-and-ss316l-stainless-steel-sanitary-5

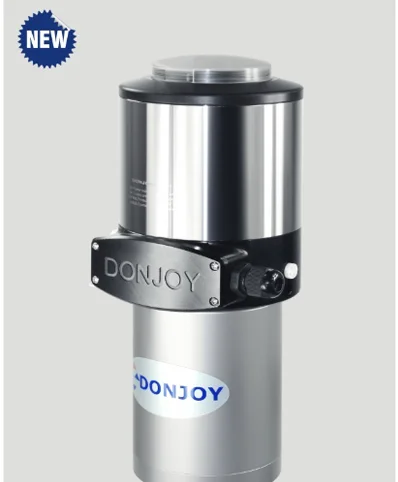

Pneumatic divert seat valve

+control unit

Technical Parameters

Product Name:	DONJOY high quality hygienic pneumatic divert seat valve with control unit
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1"- 4"
Availably connection:	Thread, Weld, Clamp
Availably standard:	DIN,SMS,RJT,3A

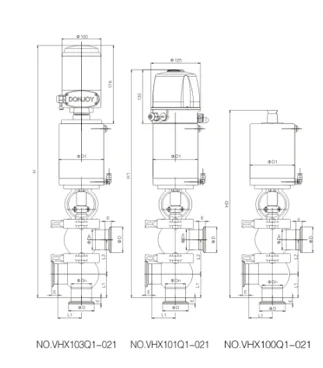

Dimensions

donjoy-ss304-and-ss316l-stainless-steel-sanitary-6

DIN Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
DN25	543	500	381	28	50.5	50	67	88	113	12.7	6
DN32				34		55				12.7	6
DN40				40		60				12.7	6
DN50	613	570	455	52	64	70	76	113	132	12.7	8
DN65	688	645	511	70	91	99	105	132	180	12.7	15
DN80	688	645	511	85	106	99	105	132	180	12.7	15
DN100	505	765	635	104	119	114	146	180		15.8	17

INCH Pneumatic Divert Seat Valve

SIZE	H	H1	HD	Dn	D		L2	D1			Weight (kg)
SIZE	H	H1	HD	Dn	D		L2	6bar	10bar		Weight (kg)
1”	543	500	381	28	50.5	50	67	88	113	12.7	6
1.25’				34		55				12.7	6
1.5”				40		60				12.7	6
2”	613	570	455	52	64	70	76	113	132	12.7	8
2.5”	688	645	511	70	91	99	105	132	180	12.7	15
3”	688	645	511	85	106	99	105	132	180	12.7	15
4”	505	765	635	104	119	114	146	180		15.8	17
