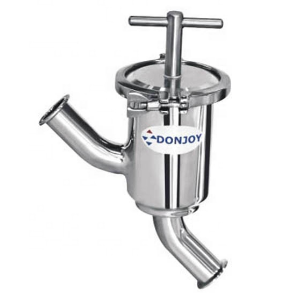

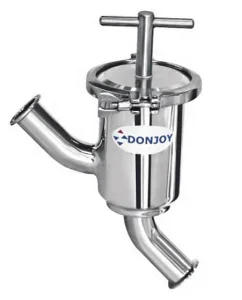

DONJOY SS304 SS316 SMS clamp sanitary stainless steel y strainer

Product Name:

DONJOY SS304 SS316 SMS clamp sanitary stainless steel y strainer

Valve Body Material:

 SS304/SS316L

Seal Material:

EPDM (standard) FPM/SILICON/NVQ, FDA177.2600

Mex working pressure:

10 bar 145 PSI

Mesh size:

0.5-2.0mm

Screen:

30-300mesh

Max. Working Temperature:

120 °C(EPDM)

Availably  size:

DN25-DN100 1"-4"

Availably connection:

weld, clamp, thread

Availably standard:

DIN/ SMS/ RJT/ IDF/ 3A

Certificate:

ISO, PED/97/23/EC, FDA.177.2600

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 15 days after receiving T/T down payment.

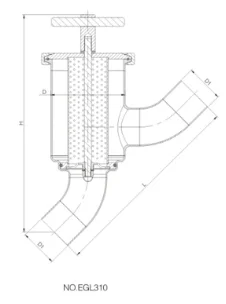

SIZE

H

L

D1

D

t

1

2

DN25

282

204

28

29

102

1.5

DN32

292

226

34

36

102

1.5

DN40

293

242

40

41

102

1.5

DN50

313

280

52

53

102

1.5

DN65

384

362

70

-

114

2.0

DN80

401

406

85

-

114

2.0

DN100

544

460

104

-

154

2.0

SỈZE

H

L

D1

D

1’

280

204

25.4

102

1 ¼’

290

226

31.8

102

1 ½’

298

242

38

102

2’

315

280

50.8

102

2 ½’

387

362

63.5

114

3’

407

406

76.2

114

3 ½’

140

406

89

114

4’

554

460

101.6

154
