DONJOY Stainless Steel Flange Y type filter

Name: DONJOY Stainless Steel Flange Y type filter
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Stainless Steel Flange Y type filter

Model NO.: Y type
FOB Price: USD 20.00-50.00 / piece
Min order:1 piece
Accept Min order: Yes
Supply Ability:1000 piece / Month
Country of Origin: Ningbo or ShanghaiTop of FormBottom o

Product Description

Place of Origin: CN
Power: Manual
Media: Oil
Temperature of Media: Medium Temperature
Structure: drainer
Brand Name: DONJOY
Model Number: Y type
Port Size:DN15-DN50

DONJOY water filter system Y Type Strainer with high quality

Product structure

Technical Parameters

Housing	316L/304
Gasket	EPDM according to FDA 177.2600
Inner polish	Ra<0.8μm
Outside polish	mirror polish
Sizes	DN25-DN150
Working temperature	-10℃-+120℃
Max working pressure	10bar
Connections	clamp, thread, weld

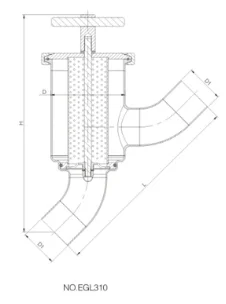

Dimensions

donjoy-3

DIN Angel Type Filter

SIZE	H	L	D1		D	t
SIZE	H	L	1	2	D	t
DN25	282	204	28	29	102	1.5
DN32	292	226	34	36	102	1.5
DN40	293	242	40	41	102	1.5
DN50	313	280	52	53	102	1.5
DN65	384	362	70	-	114	2.0
DN80	401	406	85	-	114	2.0
DN100	544	460	104	-	154	2.0

INCH Angel Type Filter

SỈZE	H	L	D1	D
1’	280	204	25.4	102
1 ¼’	290	226	31.8	102
1 ½’	298	242	38	102
2’	315	280	50.8	102
2 ½’	387	362	63.5	114
3’	407	406	76.2	114
3 ½’	140	406	89	114
4’	554	460	101.6	154

Lưu ý

Sản phẩm DONJOY Stainless Steel Flange Y type filter được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
