DONJOY stainless steel Industrial 3 way Ball Valve

Name: DONJOY stainless steel Industrial 3 way Ball Valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY stainless steel Industrial 3 way Ball Valve

· Model NO.: FM-1

· FOB Price: USD 15.00-100.00 / piece

· Min order:1 piece

· Accept Min order: Yes

· Supply Ability:1000 piece / Month

Country of Origin: NINGBO/SHANGHAI

Product Description

· Structure: Ball

· Power: Manual

· Temperature of Media: Normal Temperature

· Media: Acid

· Place of Origin: CN; ZHE

· Brand Name: DONJOY

· Application: General

· Model Number:FM-1

· Port Size:3/4"-6"

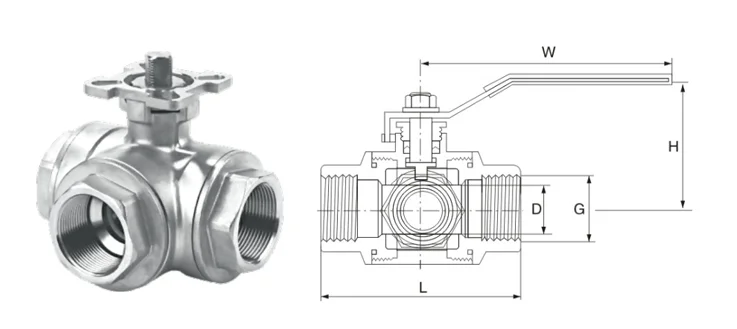

Product structure

donjoy-stainless-steel-2

Dimensions

Female Three Way Ball Valve

DN	G	d	L	H	W
8	¼”	5	40	28	70
10	3/8”	7	45	30	70
15	½”	9	55	34	90
20	¾”	12	60	38	90
25	1”	15	70	50	110
32	1 ¼”	20	80	56	120
40	1 ½”	25	86	60	130
50	2”	32	101	65	140
65	2 ½”	38	117	72	170
80	3”	50	140	105	185

Technical Parameters

Product Name:	DONJOY Stainless Steel industrial Ball Valve 3 way valve	DONJOY Stainless Steel industrial Ball Valve 3 way valve
Valve Body Material:	CF8/CF8M	CF8/CF8M
Seal Material:	PTFE	PTFE
Max. Working Pressure:	PN16-PN64	PN16-PN64
Max. Working Temperature:	-40-150 degree	-40-150 degree
Availably size:	DN8-DN50 or 1/4"- 2"	DN8-DN50 or 1/4"- 2"
Availably connection:	Female	Female
Availably standard:	BSP/NPT	BSP/NPT
Operated:	Handle/Manual	Handle/Manual
Ball:	T port, L port	T port, L port

Lưu ý

Sản phẩm DONJOY stainless steel Industrial 3 way Ball Valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
