DONJOY stainless steel Manual quick release air valve pressure relief valve safety valve for pharmacy

0 Bình luận



DONJOY stainless steel Manual quick release air valve pressure relief valve safety valve for pharmacy

  • Model NO.: safte
  • FOB Price: USD 131.00-163.00 / pieces
  • Min order:10 pieces
  • Accept Min order: Yes
  • Supply Ability:1000 pieces / Month
  • Country of Origin: Ningbo or Shanghai

Product Description

  • Place of Origin: CN;ZHE
  • Temperature of Media: Normal Temperature
  • Power: Manual
  • Structure: Safety
  • Media: Food, Beer, Beverage, Dairy
  • Brand Name: Donjoy
  • Port Size:1"-4"or DN25-DN100
  • Model Number: safte

DONJOY stainless steel Manual quick release air valve safety valve for pharmacy

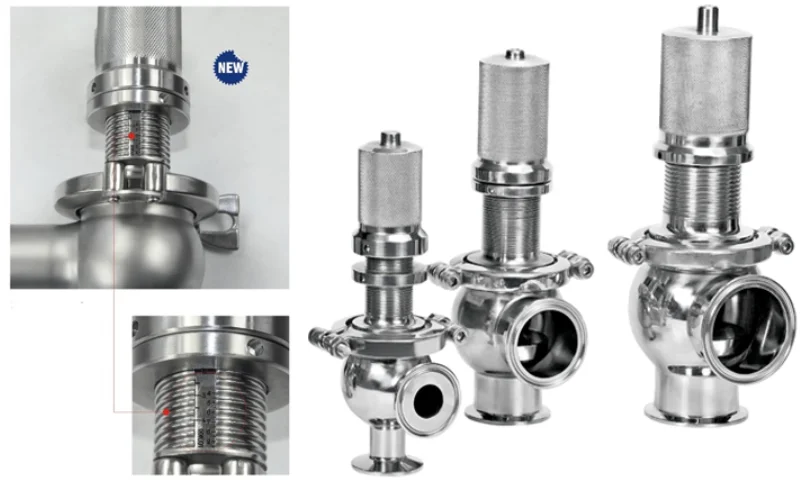

Product structure



Technical Parameters

Valve body material

SS304 or SS316L

Material of gasket

EPDM,NBR,FPM

Size

1"-4"

Max. working temperature

121  °C

Max. operating pressure

0-3bar/0-6bar/0-10bar

Availably connection

Thread, Weld, Clamp

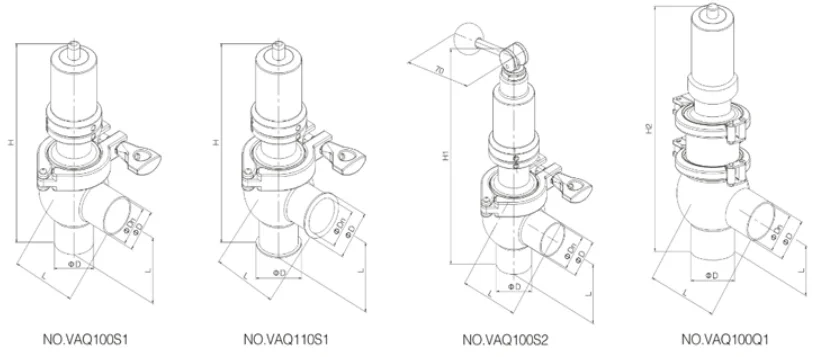

Dimensions



SIZE

D

Dn

L

h

H1

H2

1’

25.4

2.4

50

216

260

269

1.25’

31.8

28.8

55

218

260

269

1.5’

38.1

35.1

60

222

266

309

2’

50.8

47.8

70

265

300

350

2.5’

63.5

59.5

80

297

340

392

3’

76.2

72.2

99

339

370

507

SIZE

D

Dn

L

h

H1

H2

1’

50.5

22.4

62.7

228.5

260

269

1.25’

50.5

28.8

67.7

230.5

260

269

1.5’

50.5

35.1

72.7

234.5

266

309

2’

64

47.8

82.7

277.5

300

350

2.5’

77.5

59.5

92.7

309.5

340

392

3’

91

72.2

111.7

351.5

370

507





Lưu ý

Sản phẩm DONJOY stainless steel Manual quick release air valve pressure relief valve safety valve for pharmacy được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
