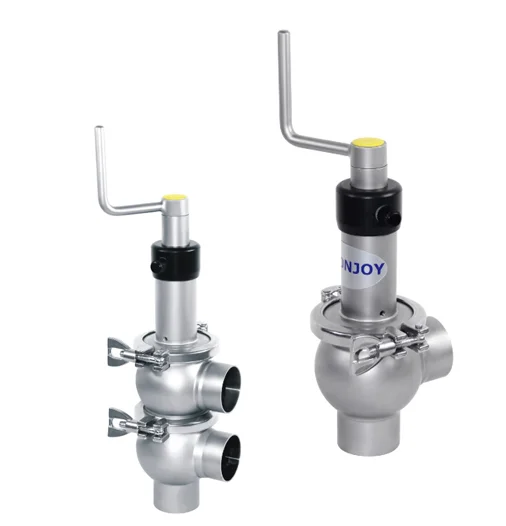

DONJOY Stainless steel manual type divert seat Valve
Model NO.: INCH/DIN
FOB Price: USD 79.00-90.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo
Product Description
Model NO.: INCH/DIN
FOB Price: USD 79.00-90.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo

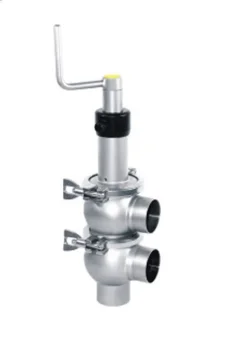

DONJOY Stainless steel jacket Insulation Type manual divert seat Valve
Product structure
Technical Parameters
Parts in contact with medium
304/316L
Other parts in stainless steel
304
Gasket
EPDM
Internal surface finish
Ra<0.8μm
External surface finish
Sandblast or mirror polish
Size
DN25-DN100 1"-4"
Working temperature
-10°C to 120 °C
Max working pressure
10bar

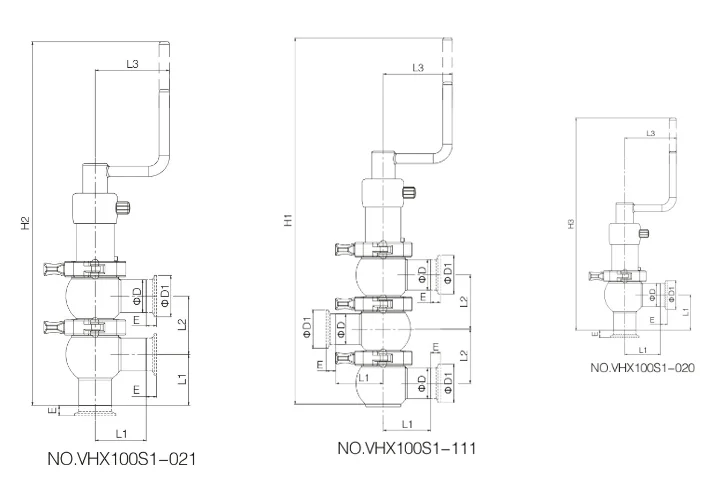

Dimensions
INCH Manual Divert Seat Valve
1
2
3
SIZE
H1
H2
H3
D
D1
L1
L2
L3
E
Weight
(kg)
Weight
(kg)
Weight
(kg)
1”
-
393
326
25.4
50.5
50
67
86
12.7
4
3
2
1.25’
-
398
331
31.8
55
12.7
4
3
2
1.5”
440
403
336
38.1
60
12.7
4
3
2
2”
489
446
370
50.8
64
70
76
86
12.7
5
4
3
2.5”
526
475
386
63.5
77.5
80
88
86
12.7
8
6
5
3”
579
520
415
76.2
91
99
105
86
12.7
10
8
6
4”
702
576
430
101.6
119
114
146
86
12.7
15
12
9
DIN Manual Divert Seat Valve
1
2
3
SIZE
H1
H2
H3
D
D1
L1
L2
L3
E
Weight
(kg)
Weight
(kg)
Weight
(kg)
DN25
-
393
326
25.4
50.5
50
67
86
12.7
4
3
2
DN32
-
398
331
31.8
55
12.7
4
3
2
DN40
440
403
336
38.1
60
12.7
4
3
2
DN50
489
446
370
50.8
64
70
76
86
12.7
5
4
3
DN65
526
475
386
63.5
77.5
80
88
86
12.7
8
6
5
DN80
579
520
415
76.2
91
99
105
86
12.7
10
8
6
DN100
702
576
430
101.6
119
114
146
86
12.7
15
12
9
Lưu ý
Sản phẩm DONJOY Stainless steel manual type divert seat Valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
