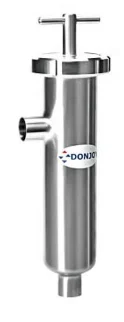

DONJOY Stainless steel sanitary angle type filter

Product Name:

DONJOY Stainless steel sanitary angle type filter

Valve Body Material:

1.4404/1.4301, SS304/SS316L

Seal Material:

EPDM (standard) FPM/SILICON/NVQ, FDA177.2600

Mex working pressure:

10 bar 145 PSI

Mesh size:

0.5-2.0mm

Screen:

30-300mesh

Max. Working Temperature:

120 °C(EPDM)

Availably size:

DN25-DN100 1"-4"

Availably connection:

Clamp / weld / thread

Availably standard:

DIN/ SMS/ RJT/ IDF/ 3A

Certificate:

ISO, PED/97/23/EC, FDA.177.2600

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.

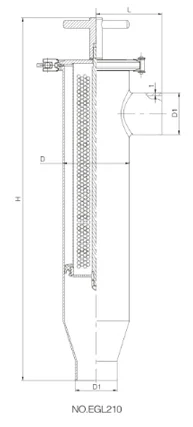

SIZE

H

L

D1

D

t

1

2

DN25

431

77.5

28

29

85

1.5

DN32

431

77.5

34

35

85

1.5

DN40

431

77.5

40

43

85

1.5

DN50

431

77.5

52

53

85

1.5

DN65

561

101

70

-

102

2.0

DN80

580

107

85

-

114

2.0

DN100

724

105.5

100

-

154

2.0

SỈZE

H

L

D1

D

1’

431

77.5

25.4

85

1 ¼’

431

77.5

31.8

85

1 ½’

431

77.5

38

85

2’

431

77.5

50.8

85

2 ½’

561

101

63.5

102

3’

580

107

76.2

114

3 ½’

580

107

89

114

4’

724

105.5

101.6

154
