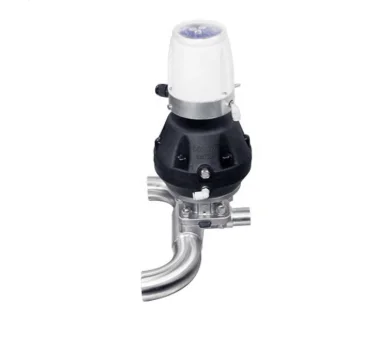

DONJOY Stainless steel sanitary three port diaphragm valve with C-top

· Model NO.: 12030902

· FOB Price: USD 188.00-215.00 / pieces

· Min order:2 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: NINGBO OR SHNAGHAI

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Medium Temperature

· Power: Pneumatic

· Media: Water

· Structure: Diaphragm

· Brand Name: DONJOY

· Model Number:12030902

· Port Size:1"-3"DN25-DN80

DONJOY Stainless steel sanitary three port diaphragm valve with C-top

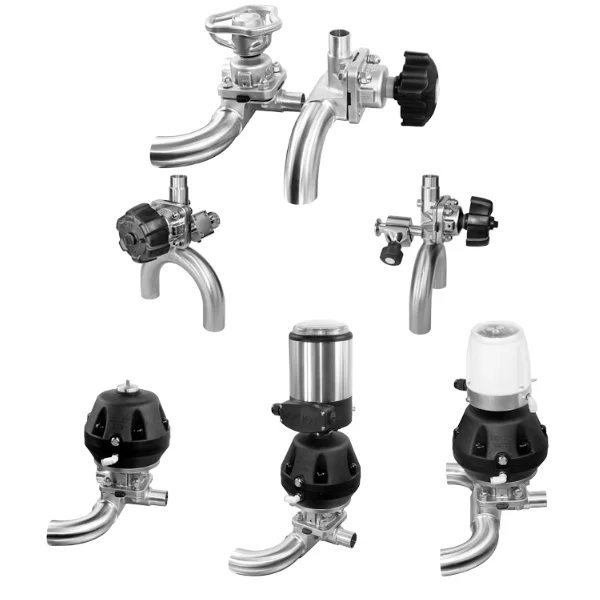

Product structure

Technical Parameters

Availably size	1"-4", DN25-DN100
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	10Bar
Valve body	316L / BPE 316L
Tee type	U type C series and U type B series
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

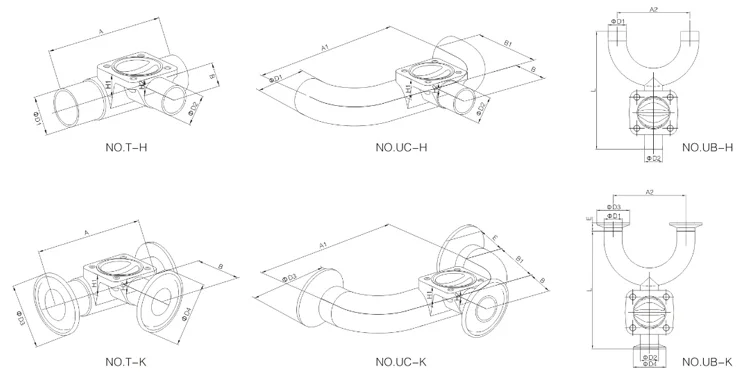

Dimensions

ASME BPE/ASTM 269

SIZE	D1	D2	D3	D4	A	A1	A2	B	B1	H1	H2	L	E
1”-1/2”	25.4	12.7	50.5	25.4	100	176	76.2	59	68	24.5	9	142.9	12.7
1”-3/4”		19.1		25.4	100	176		59		24.5	13	154.3
1”-1”		25.4		50.5	124	200		85		29.8	17	188.3
1 ¼”-1/2”	31.8	12.7	50.5	25.4	100	195.5	95.4	61	78	26.5	9	155.7	12.7
1 ¼”-3/4”		19.1		25.4	100	195.5		61		26.5	13	167.1
1 ¼”-1”		25.4		50.5	124	219.5		85		32.8	17	201.1
1 ¼”-1 ¼”		31.8		50.5	124	219.5	95.4	85		32.8	20	222.6
1.5”-1/2”	38	12.7	50.5	25.4	100	214	114.3	64	87	29.5	9	168.3	12.7
1.5”-3/4”		19.1		25.4	100	214		64		29.5	13	179.7
1.5”-1”		25.4		50.5	124	238		89		35.8	17	213.7
1.5”-1 ¼”		31.8		50.5	150	266	114.3	109			20	235.2
1.5”- 1.5”		38.1		50.5	150	266	114.3	109			23	241.7
2”-1/2”	50.8	12.7	64	25.4	100	252.5	152.4	70	106	33.5	9	193.7	12.7
2”-3/4”		19		25.4	100	252.5		70		33.5	13	205.1
2”-1”		25.4		50.5	124	276.5		95		41.8	17	239.1
2”-1 ¼”		31.8		50.5	152	304.5	152.4	115		43.8	20	260.6
2”-1.5”		38.1		50.5			152.4	115		43.8	23	267.1
2”- 2”		50.8		64			152.4	123		43.3	29	289.6

DIN32676/DN11850-1/2

SIZE	D1	D2	D3	D4	A	A1	A2	B	B1	H1	H2	L	E
DN25-1/2”	28	12.7	50.5	25.4	100	200	100	59	80	24.5	9	166.1	21.5
DN25-3/4”		19		34							13	177.5
DN25- DN20		22		34							13	206.5
DN25- DN25		28		50.5	124	224		85		29.8	17	211.5
DN32-1/2”	34	12.7	50.5	25.4	100	210	110	61	85	26.5	9	174.1	21.5
DN32-3/4		16		25.4							13	185.5
DN32-DN20		22		34							13	214.5
DN32-DN25		28		50.5	124	234		85		32.8	17	219.5
DN32-32		34		50.5	124	234		85		32.8	20	241
DN40-1/2”	40	12.7	50.5	25.4	100	220	120	64	90	29.5	9	182.1	21.5
DN40-3/4”		19		25.4							13	193.5
DN40-DN20		22		34							13	222.5
DN40-DN25		28		50.5	124	244		89		35.8	17	227.5
DN40-DN32		34		50.5	152	272		109			20	249
DN40-DN40		40		50.5	152	272		109			23	255.5
DN50-1/2”	52	12.7	64	25.4	100	240	140	70	100	33.5	9	198.1	21.5
DN50-3/4”		19.		25.4							13	209.5
DN50-DN20		22		34							13	238.5
DN50-DN25		28		50.5	124	264		95		41.8	17	243.5
DN50-DN32		34		50.5	152	292		115		43.8	20	265
DN50-DN40		40		50.5	152	292		115		43.8	23	271.5
DN50-DN50		52		64	184	324		123		43.3	29	294
