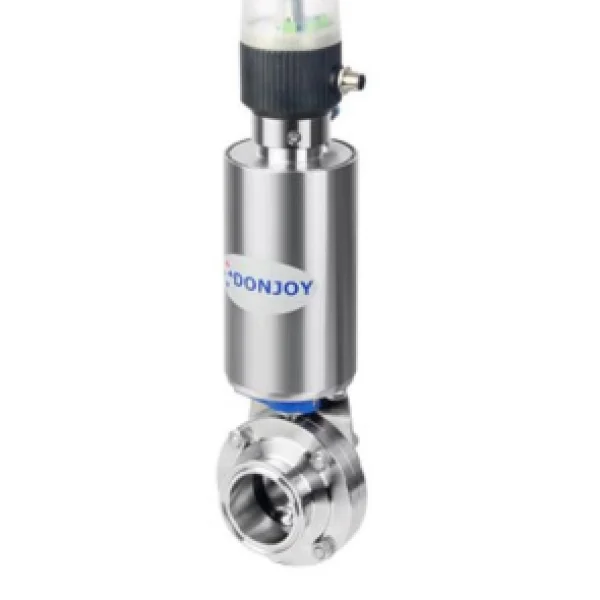

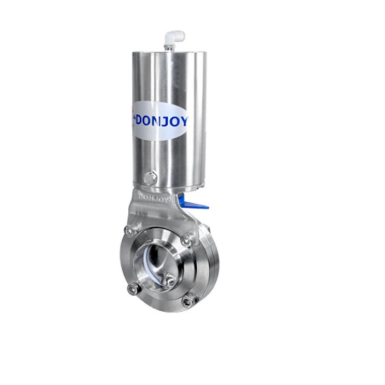

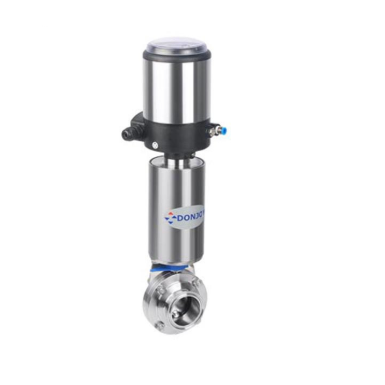

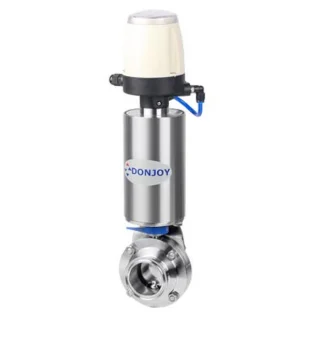

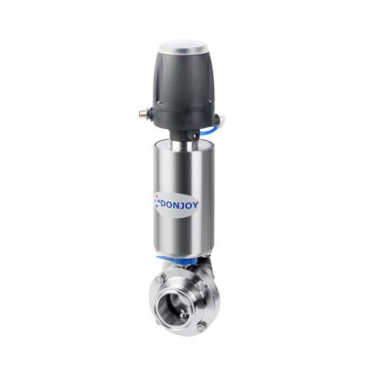

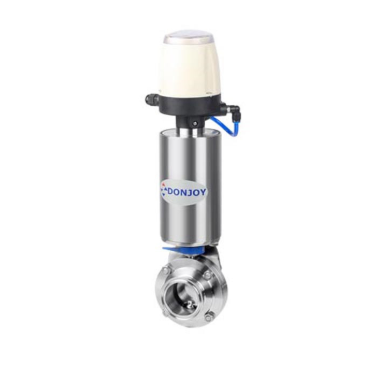

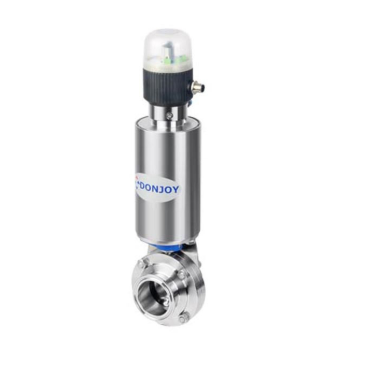

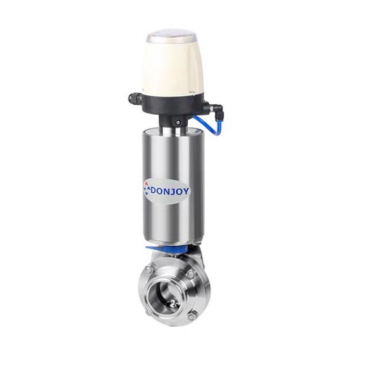

DONJOY Stainless steel Vertical pneumatic threaded butterfly valve with controller
· Model NO.: 1103012
· FOB Price: USD 220.00-225.00 / pieces
· Min order:10 pieces
· Accept Min order: Yes
· Supply Ability:1000 pieces / Month
· Country of Origin: NINGBO OR SHANGHAI
|
|
Product Description
|
|
· Place of Origin: CN; ZHE
· Temperature of Media: Medium Temperature
· Power: Pneumatic
· Media: Water
· Structure: Butterfly
· Brand Name: DONJOY
· Model Number:1103012
· Port Size:DN10-DN150, 3/4"-4"
|
|
DONJOY Stainless steel pneumatic threaded butterfly valve with controller
|
|

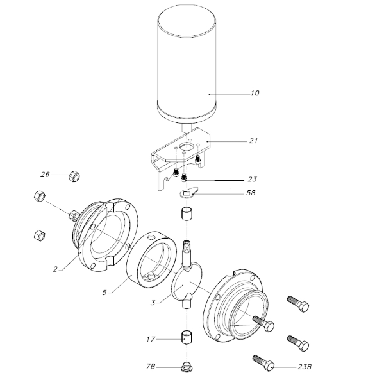

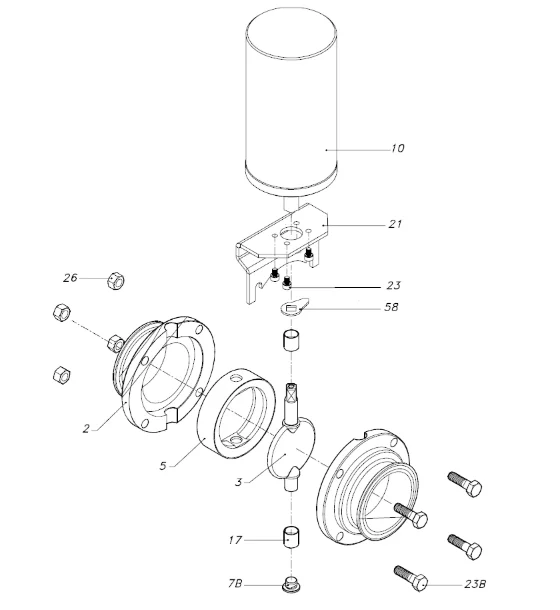

Product structure
|
 |
|
Technical Parameters
|
|
Max.working pressure
|
10Bar
|
|
Max.Working Temperature
|
120 degree C
|
|
Valve Body Material
|
1.4404/1.4301, SS304/SS316L
|
|
Seal Material
|
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
|
|
Availably size
|
1/2"-12", DN10-DN300
|
|
Availably connection
|
Clamp / weld / thread/ weld thread/ flange
|
|
Availably standard
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated
|
Manual, Pneumatic, Electric
|
|
Control
|
Sensor, C-TOP, C-top controller(AS-I)
|
|
Handle option
|
pull handle, plastic/SS multi- positon handle
|
|
Handle application
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
|
|
Actuator application
|
Stainless steel actuator/ Horizontal pneumatic actuator
|
|
Certificate
|
ISO, PED/97/23/EC, FDA.177.2600
|
|
|

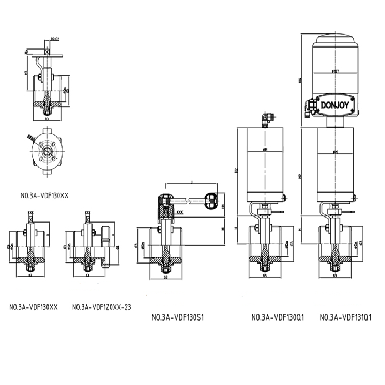

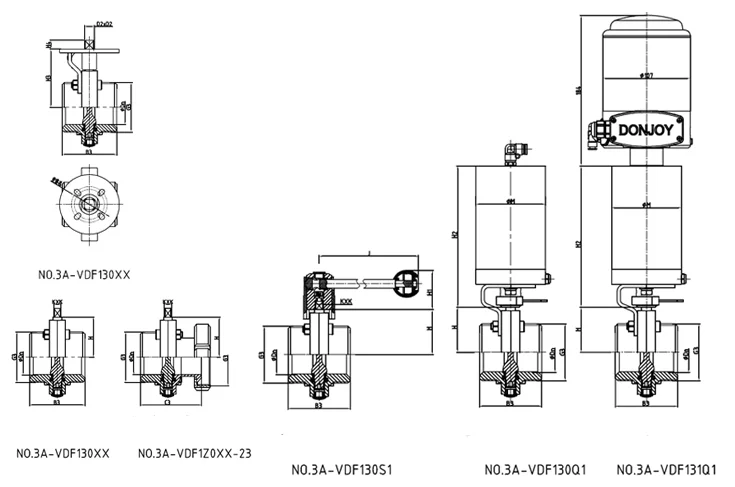

Dimensions
|
 |
|
SIZE
|
Dn
|
KXK
|
H
|
H1
|
H2
|
B3
|
C3
|
3A
|
H3
|
H4
|
D2
|
|
|
G3
|
|
1”
|
22.1
|
8X8
|
40
|
43.5
|
172.5
|
66
|
93
|
37.1X1/8Acme
|
68.4
|
13
|
11
|
F04-F05
|
|
1 ¼”
|
28.8
|
8X8
|
40
|
43.5
|
172.5
|
70
|
95
|
45.9 X1/8Acme
|
69.4
|
11.5
|
11
|
F04-F05
|
|
1 ½”
|
34.8
|
8X8
|
44.5
|
43.5
|
172.5
|
70
|
98
|
50.6 X1/8Acme
|
73.3
|
11.6
|
14
|
F04-F05
|
|
2”
|
47.5
|
10X10
|
52.5
|
47.5
|
172.5
|
76
|
102
|
64.1 X1/8Acme
|
81.1
|
13.9
|
14
|
F04-F05
|
|
2 ½”
|
60.2
|
10X10
|
59
|
47.5
|
172.5
|
80
|
112.5
|
77.6 X1/8Acme
|
87.5
|
12.5
|
14
|
F04-F05
|
|
3”
|
72.9
|
10X10
|
65.5
|
47.5
|
172.5
|
84
|
114.5
|
91.1 X1/8Acme
|
95.3
|
11.5
|
14
|
F04-F05
|
|
4”
|
97.4
|
11X11
|
79
|
50
|
172.5
|
104
|
128.5
|
119.2 X1/8Acme
|
109.7
|
17.5
|
17
|
F04-F05
|
|
Lưu ý
Sản phẩm DONJOY Stainless steel Vertical pneumatic threaded butterfly valve with controller được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
