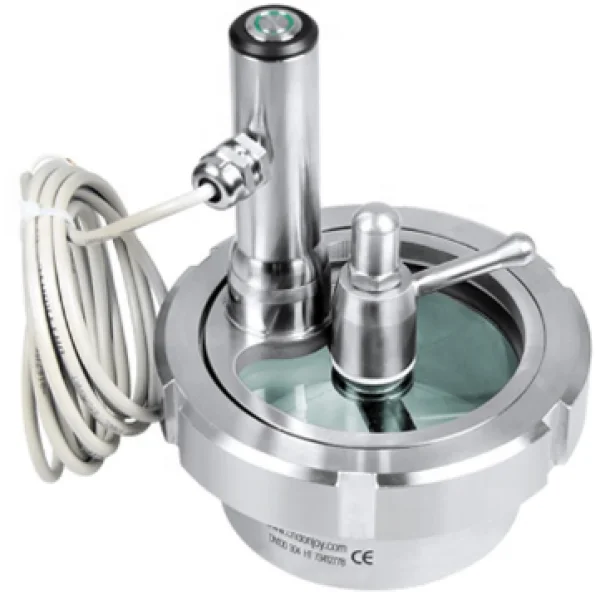

DONJOY Union Type Sight Glass with recharge lighting and scraper

Product Name:

DONJOY Union type Sight Glass with recharge lighting and scraper

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM, PTFE, SILICON,etc

Sight glass:

tempered glass

Max.temperature:

120 degree

Battery:

use high light flashlight, rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

Availably connection:

Clamp, Thread, weld, Flange

Availably standard:

DIN, SMS, 3A, ISO

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers

Delivery details:

10-20 day

SIZE

D

Dn

h

DN50*

92

55

45

DN65*

110

72

48

DN80*

125

87

53

DN100*

146

106

63

DN125*

178

132

57

DN150*

210

157

62

SIZE

D

Dn

h

2’

92

50.8

33

2.5’

110

63.5

37

3’

125

76.2

37

4’

146

101.6

40

-

-

-

-

6’

210

152.4

62
