  • Centrifugal pump is an efficient and economical pump. Which due to not only meet the requirements of the sanitary gentle handing but also, with its chemical stability.

Máy bơm ly tâm thực phẩm HT - OMO

Centrifugal Pumps HT - OMO



Technical Data:

Power: 2.2kw

Flow: 10T/h

Lift: 24M

Max inlet pressure: 500kpa (5bar)

Temperature range: -10°C - +140°C

Noise level (Distance of 1 meter): 60-85Db (A)

Double-end mechanical seal inlet pressure: Max 500kpa (5Bar); Water consumption: 0.25 - 0.5L/h

Application:

Centrifugal pump is an efficient and economical pump. Which due to not only meet the requirements of the sanitary gentle handing but also, with its chemical stability.

It is applies to most fields of the sanitary industry.

Design Standards:

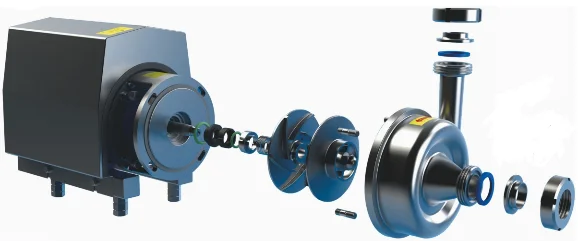

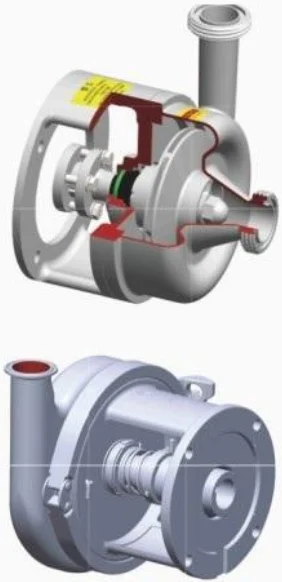

The basic components of centrifugal pump included: a standard motor, spindle, expansion couplings, converters, backboard, impeller, pump case and shaft seal.

centrifugal pumps for sanitary

applications have stainless steel case shields for the protection of the Mazda, and each pump unit equipped with a complete set of four stainless steel support can be adjustable feet.

centrifugal pumps special design of amplifying outlet and advanced impeller allows smooth flow and meets the minimum NPSH requirements (minimum requirements can be reduced NPSH cavitation phenomena occur).

This product can be cleaned by CIP or by hand.

It also has a cleanable seal.

Material:

Teel part: 304/316L

Seal: EPDM

Motor:

With a basic flange mater, according to IEC metric standard, then the Voltage frequency 50/60Hz, two electrodes is 3000/3600rpm



Frequency, Voltage and Power

50HZ, 220-240V380-420V

≤4KW (Recommended)

60HZ, 250-280V/ 440-480VY ≤6KW
