Nắp bịt clamp inox 3A 15WI

Sanitary Clamp fitting

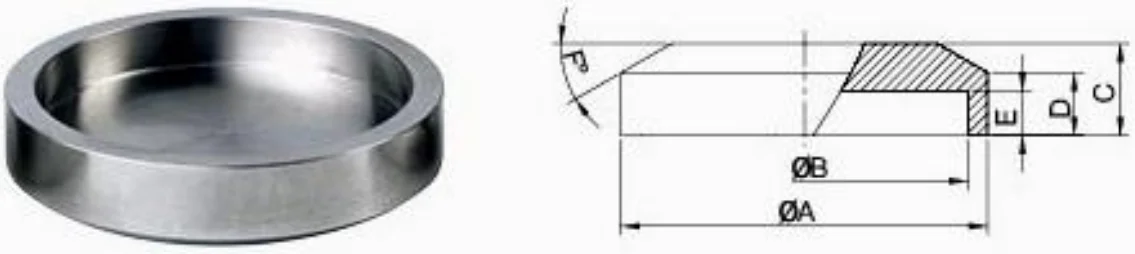

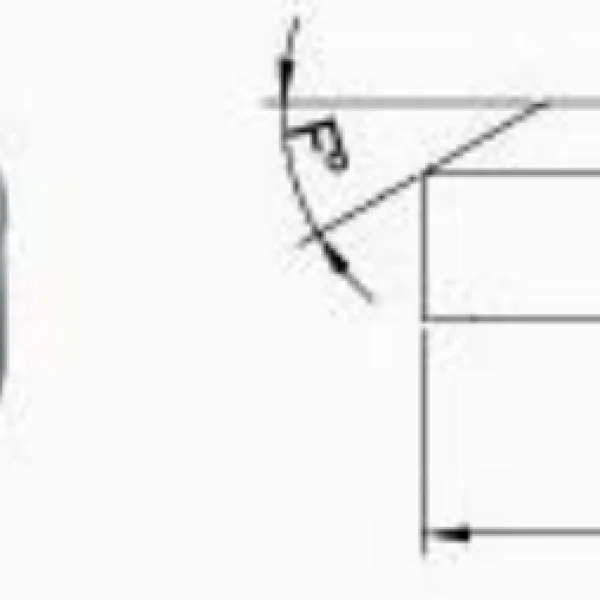

16AI-15WI Female Solid End Cap 3A

Size

A

B

C

D

E

F

1"

50.42

32.13

12.70

8.0

6.32

37°

1 1/2"

50.42

44.58

12.70

8.0

6.32

37°

2"

67.06

57.28

14.27

11.61

7.85

37°

2 1/2"

84.00

69.98

19.05

11.13

9.25

37°

3"

98.30

84.20

17.78

11.13

9.25

37°

4"

123.70

109.60

19.05

11.13

9.25

37°

6"

190.37

175.74

22.35

11.13

6.10

30°

8"

241.17

226.54

22.35

11.13

6.10

30°
