STAINLESS STEEL BUTT-WELD SEAMLESS FITTINGS
PHỤ KIỆN ĐÚC NỐI HÀN ĐƯỜNG ỐNG ĐÚC INOX CÔNG NGHIỆP
|
|

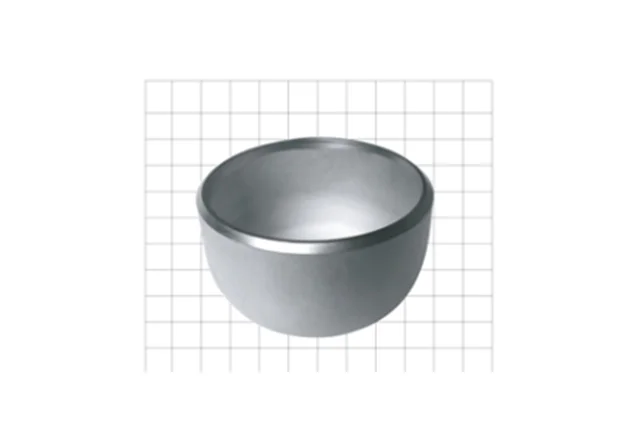

CAP
NẮP BỊT ĐẦU ỐNG ĐÚC
|
CAP
|
|
|
|
GB
|
mm
|
|
NPS
|
|
SCH 5S
|
SCH 10S
|
SCH 40S
|
H
|
|
A
|
B
|
OD
|
OD
|
T
|
I
|
II
|
T
|
I
|
II
|
T
|
I
|
II
|
E
|
E1
|
|
15A
|
1/2”
|
21.3
|
18.00
|
1.65
|
18.03
|
14.70
|
2.11
|
16.43
|
17.08
|
2.77
|
15.80
|
12.46
|
25
|
25
|
|
20A
|
3/4”
|
26.9
|
25.00
|
1.65
|
23.37
|
21.70
|
2.11
|
22.45
|
22.68
|
2.87
|
20.93
|
19.28
|
25
|
25
|
|
25A
|
1”
|
33.7
|
32.00
|
1.65
|
30.10
|
28.70
|
2.77
|
27.86
|
28.16
|
3.38
|
26.64
|
25.24
|
38.00
|
38
|
|
32A
|
1.1/4”
|
42.4
|
38.00
|
1.65
|
38.86
|
34.70
|
2.77
|
36.63
|
36.86
|
3.56
|
35.05
|
30.88
|
38.00
|
38
|
|
40A
|
1.1/2”
|
48.3
|
45.00
|
1.65
|
44.96
|
41.70
|
2.77
|
42.72
|
42.76
|
3.68
|
40.89
|
37.64
|
38.00
|
38
|
|
50A
|
2”
|
60.3
|
57.00
|
1.65
|
57.02
|
53.70
|
2.77
|
54.79
|
54.76
|
3.91
|
52.50
|
49.18
|
38.00
|
38
|
|
65A
|
2.1/2”
|
73.0
|
76.00
|
2.11
|
68.81
|
71.78
|
3.05
|
66.93
|
66.90
|
5.16
|
62.71
|
65.68
|
38.00
|
41
|
|
80A
|
3”
|
88.9
|
89.00
|
2.11
|
84.68
|
84.78
|
3.05
|
82.80
|
82.80
|
5.49
|
77.93
|
78.02
|
51.00
|
51
|
|
90A
|
3.1/2”
|
101.6
|
…..
|
2.11
|
97.38
|
…..
|
3.05
|
95.50
|
95.50
|
5.74
|
90.12
|
…..
|
64.00
|
64
|
|
100A
|
4”
|
114.3
|
108.00
|
2.11
|
112.19
|
103.78
|
3.05
|
108.20
|
108.20
|
6.02
|
102.26
|
95.96
|
64.00
|
76
|
|
125A
|
5”
|
141.3
|
133.00
|
2.77
|
135.76
|
127.46
|
3.40
|
139.49
|
134.50
|
6.55
|
128.19
|
119.90
|
76.00
|
76
|
|
150A
|
6”
|
168.3
|
159.00
|
2.77
|
162.74
|
153.46
|
3.40
|
161.47
|
161.50
|
7.11
|
154.05
|
144.78
|
89.00
|
89
|
|
200A
|
8”
|
219.1
|
219.00
|
2.77
|
213.54
|
213.46
|
3.76
|
211.56
|
211.58
|
8.18
|
202.72
|
202.64
|
102.00
|
12
|
|
250A
|
10”
|
273.0
|
273.00
|
3.40
|
266.24
|
266.20
|
4.19
|
264.67
|
264.62
|
9.27
|
254.51
|
254.46
|
127.00
|
127
|
|
300A
|
12”
|
323.9
|
325.00
|
3.96
|
315.93
|
317.08
|
4.57
|
314.71
|
314.76
|
9.52
|
304.80
|
305.96
|
152.00
|
152
|
|
350A
|
14”
|
355.6
|
377.00
|
3.96
|
347.68
|
369.09
|
4.78
|
346.05
|
346.04
|
…..
|
…..
|
…..
|
165.00
|
178
|
|
400A
|
16”
|
406.4
|
426.00
|
4.19
|
398.02
|
417.62
|
4.78
|
396.85
|
396.84
|
…..
|
…..
|
…..
|
178.00
|
191
|
|
450A
|
18”
|
457.0
|
480.00
|
4.19
|
448.82
|
471.62
|
4.78
|
447.65
|
474.44
|
…..
|
…..
|
…..
|
203.00
|
203
|
|
500A
|
20”
|
508.0
|
530.00
|
4.78
|
498.45
|
520.44
|
5.54
|
496.93
|
496.92
|
…..
|
…..
|
…..
|
229.00
|
229
|
|
550A
|
22”
|
559.0
|
…..
|
4.78
|
549.25
|
…..
|
5.54
|
547.73
|
547.92
|
…..
|
…..
|
…..
|
254.00
|
254
|
|
600A
|
24”
|
610.0
|
630.00
|
5.54
|
598.53
|
618.92
|
6.35
|
596.90
|
597.30
|
…..
|
…..
|
…..
|
267.00
|
305
|
|
|
|
|
|
ASME
|
mm
|
|
NPS
|
ANSI/ASME
|
SCH 5S
|
SCH 10S
|
SCH 40S
|
E
|
|
A
|
B
|
OD
|
T
|
ID
|
T
|
ID
|
T
|
ID
|
E1
|
E2
|
|
15A
|
1/2”
|
21.3
|
1.65
|
18.03
|
2.11
|
16.43
|
2.77
|
15.80
|
25
|
25
|
|
20A
|
3/4”
|
26.9
|
1.65
|
23.37
|
2.11
|
22.45
|
2.87
|
20.93
|
25
|
25
|
|
25A
|
1”
|
33.7
|
1.65
|
30.10
|
2.77
|
27.86
|
3.38
|
26.64
|
38
|
38
|
|
32A
|
1.1/4”
|
42.4
|
1.65
|
38.86
|
2.77
|
36.63
|
3.56
|
35.05
|
38
|
38
|
|
40A
|
1.1/2”
|
48.3
|
1.65
|
44.96
|
2.77
|
42.72
|
3.68
|
40.89
|
38
|
38
|
|
50A
|
2”
|
60.3
|
1.65
|
57.02
|
2.77
|
54.79
|
3.91
|
52.50
|
38
|
38
|
|
65A
|
2.1/2”
|
73.0
|
2.11
|
68.81
|
3.05
|
66.93
|
5.16
|
62.71
|
38
|
41
|
|
80A
|
3”
|
88.9
|
2.11
|
84.68
|
3.05
|
82.80
|
5.49
|
77.93
|
51
|
51
|
|
90A
|
3.1/2”
|
101.6
|
2.11
|
97.38
|
3.05
|
95.50
|
5.74
|
90.12
|
64
|
64
|
|
100A
|
4”
|
114.3
|
2.11
|
112.19
|
3.05
|
108.20
|
6.02
|
102.26
|
64
|
76
|
|
125A
|
5”
|
141.3
|
2.77
|
135.76
|
3.40
|
139.49
|
6.55
|
128.19
|
76
|
76
|
|
150A
|
6”
|
168.3
|
2.77
|
162.74
|
3.40
|
161.47
|
7.11
|
154.05
|
89
|
89
|
|
200A
|
8”
|
219.1
|
2.77
|
213.54
|
3.76
|
211.56
|
8.18
|
202.72
|
102
|
12
|
|
250A
|
10”
|
273.0
|
3.40
|
266.24
|
4.19
|
264.67
|
9.27
|
254.51
|
127
|
127
|
|
300A
|
12”
|
323.9
|
3.96
|
315.93
|
4.57
|
314.71
|
9.52
|
304.80
|
152
|
152
|
|
350A
|
14”
|
355.6
|
3.96
|
347.68
|
4.78
|
346.05
|
…..
|
…..
|
165
|
178
|
|
400A
|
16”
|
406.4
|
4.19
|
398.02
|
4.78
|
396.85
|
…..
|
…..
|
178
|
191
|
|
450A
|
18”
|
457.0
|
4.19
|
448.82
|
4.78
|
447.65
|
…..
|
…..
|
203
|
203
|
|
500A
|
20”
|
508.0
|
4.78
|
498.45
|
5.54
|
496.93
|
…..
|
…..
|
229
|
229
|
|
550A
|
22”
|
559.0
|
4.78
|
549.25
|
5.54
|
547.73
|
…..
|
…..
|
254
|
254
|
|
600A
|
24”
|
610.0
|
5.54
|
598.53
|
6.35
|
596.90
|
…..
|
…..
|
267
|
305
|
|
|
JIS
|
mm
|
|
NPS
|
JIS
|
SCH 10S
|
SCH 20S
|
SCH 40S
|
|
|
A
|
B
|
OD
|
T
|
ID
|
T
|
ID
|
T
|
ID
|
E1
|
E2
|
|
15A
|
1/2”
|
21.7
|
2.1
|
17.5
|
2.5
|
16.7
|
2.8
|
16.10
|
25.40
|
---
|
|
20A
|
3/4”
|
27.2
|
2.1
|
23.0
|
2.5
|
22.2
|
2.9
|
21.40
|
25.40
|
---
|
|
25A
|
1”
|
34.0
|
2.8
|
28.4
|
3.0
|
28.0
|
3.4
|
27.20
|
38.10
|
---
|
|
32A
|
1.1/4”
|
42.7
|
2.8
|
37.1
|
3.0
|
36.7
|
3.6
|
35.50
|
38.10
|
---
|
|
40A
|
1.1/2”
|
48.6
|
2.8
|
43.0
|
3.0
|
43.0
|
3.7
|
41.20
|
38.10
|
44.5
|
|
50A
|
2”
|
60.5
|
2.8
|
54.9
|
3.5
|
54.9
|
3.9
|
52.70
|
38.10
|
50.8
|
|
65A
|
2.1/2”
|
76.3
|
3.0
|
70.3
|
3.5
|
70.3
|
5.2
|
65.90
|
38.10
|
63.5
|
|
80A
|
3”
|
89.1
|
3.0
|
83.1
|
4.0
|
83.1
|
5.5
|
78.10
|
50.80
|
76.2
|
|
90A
|
3.1/2”
|
101.6
|
3.0
|
95.6
|
4.0
|
95.6
|
5.7
|
90.20
|
63.50
|
88.9
|
|
100A
|
4”
|
114.3
|
3.0
|
108.3
|
4.0
|
108.3
|
6.0
|
102.30
|
63.50
|
101.6
|
|
125A
|
5”
|
139.8
|
3.4
|
133.0
|
5.0
|
133.0
|
6.6
|
126.60
|
76.20
|
127.0
|
|
150A
|
6”
|
165.2
|
3.4
|
158.4
|
5.0
|
158.4
|
7.1
|
15.10
|
88.90
|
152.4
|
|
200A
|
8”
|
216.3
|
4.0
|
208.3
|
6.5
|
208.3
|
8.2
|
199.90
|
101.60
|
127.0
|
|
250A
|
10”
|
267.4
|
4.0
|
259.4
|
6.5
|
259.4
|
9.3
|
248.80
|
127.00
|
152.4
|
|
300A
|
12”
|
318.5
|
4.5
|
309.5
|
6.5
|
309.5
|
10.3
|
297.90
|
152.40
|
177.8
|
|
350A
|
14”
|
355.6
|
5.0
|
345.6
|
8.0
|
345.6
|
11.1
|
333.40
|
165.10
|
190.5
|
|
400A
|
16”
|
406.4
|
5.0
|
396.4
|
8.0
|
396.4
|
12.7
|
381.00
|
177.80
|
203.2
|
|
450A
|
18”
|
457.2
|
5.0
|
447.2
|
8.0
|
447.2
|
14.3
|
428.60
|
203.00
|
228.6
|
|
500A
|
20”
|
508.0
|
5.5
|
497.0
|
9.5
|
489.0
|
15.1
|
477.80
|
228.60
|
254.0
|
|
550A
|
22”
|
558.8
|
5.5
|
547.8
|
9.5
|
539.8
|
15.9
|
527.00
|
254.00
|
254.0
|
|
600A
|
24”
|
609.6
|
5.5
|
596.6
|
9.5
|
590.6
|
17.5
|
574.60
|
266.70
|
304.8
|
|
LƯU Ý:
Sản phẩm Nắp bịt đầu ống đúc được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
