Sanitary plastic pneumatic diaphragm valve with mini C TOP for beverage

·   Model NO.: 12030902

·   FOB Price: USD 262.77-559.33 / piece

·   Min order:1 piece

·   Accept Min order: Yes

·   Supply Ability:1000 piece / Month

·   Country of Origin: NINGBO OR SHNAGHAI

Product Description

·   Place of Origin: CN; ZHE

·   Temperature of Media: Medium Temperature

·   Power: Pneumatic

·   Media: Water

·   Structure: Diaphragm

·   Brand Name: DONJOY

·   Model Number:12030902

·   Port Size:DN10-DN80 1"-3.5"

Sanitary plastic pneumatic diaphragm valve with mini C TOP for beverage

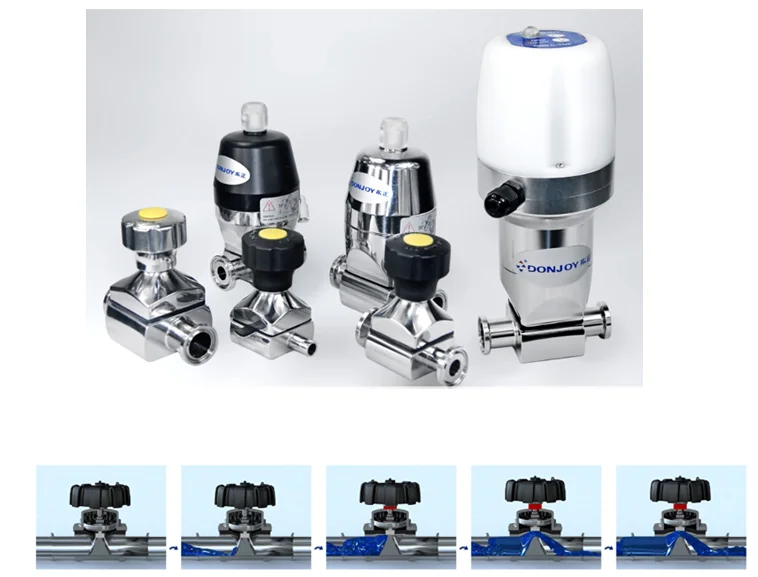

Product structure

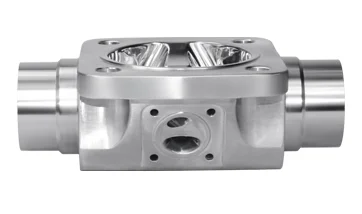

Diapharagm valve forging body

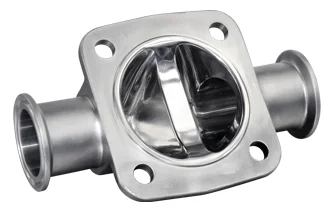

Diapharagm valve casging body



Technical Parameters

Availably  size

1/4"-3/4", DN6-DN15

Max. temperature

-30 to 150 °C(depending on diaphragm) (stainless steel wheel)

Max. temperature

-30 to 130 °C (depending on diaphragm) (plastic wheel)

Max. pressure

Normally close EPDM 8 bar, PTFE 6 bar(option)
Normally close EPDM 6 bar, PTFE 4.5 bar(standard)
and double action EPDM 8 bar, PTFE 6 bar

Actuators

Assemble different actuators can meet the higher pressure rating

Pneumatic actuators suitable for body

straight, tee, multichannel body, welding combination valve, tank bottom valve

Valve body

316L / BPE 316L

Availably connection

Clamp / weld / thread / flange

Seal Material

PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)

Availably standard

3A/BPE/DIN/ISO/IDF

Control

Smart valve positioner / C-TOP control / position sensor

Operated

Manual, Pneumatic

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

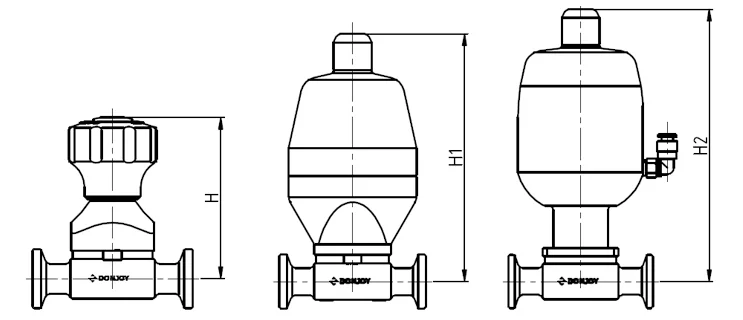

Dimensions



SIZE

SIZE

H

H1

H1

¼”

DN6

69

116

130

3/8”

DN8

69

116

130

½”

DN10

69

116

130

¾”

DN15

72

119

133





Lưu ý

Sản phẩm Sanitary plastic pneumatic diaphragm valve with mini C TOP for beverage được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
