Sanitary SS304 and SS316L pneumatic radial diaphragm valve for food and pharmacy

·   Model NO.: New

·   FOB Price: USD 79.00-211.00 / piece

·   Min order:1 piece

·   Accept Min order: Yes

·   Supply Ability:1000 piece / Month

·   Country of Origin: NINGBO OR SHANGHAI

Product Description

·   Place of Origin: CN; ZHE

·   Temperature of Media: Medium Temperature

·   Power: Manual

·   Media: Water

·   Structure: Diaphragm

·   Brand Name: DONJOY

·   Model Number: New

·   Port Size:3/4"-2.5"DN20-DN65

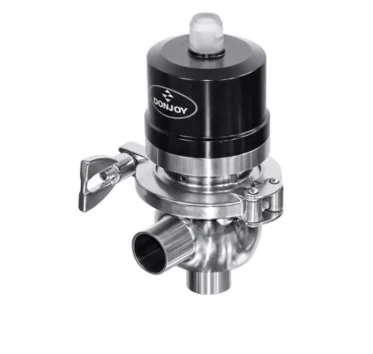

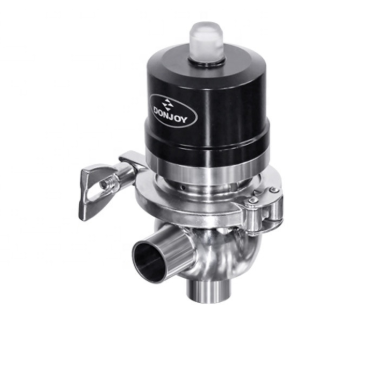

sanitary SS304 and SS316L pneumatic radial diaphragm valve for food and pharmacy

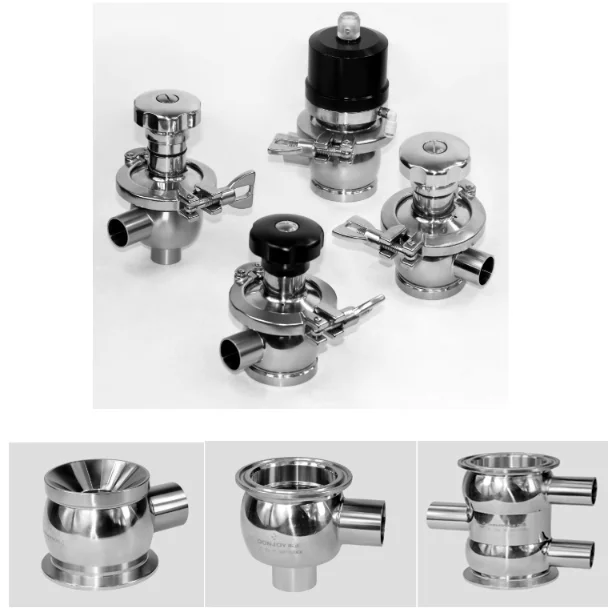

Product structure



Technical Parameters

Vailably  size

1/4"-2.5", DN20-DN65

Max. temperature

'-10°C to 120 °C(EPDM/SILICON)

Max. pressure

6Bar

Operated

Manual, Pneumatic

Actuator  pressure

5-6Bar

Availably connection

Clamp / weld / thread / flange

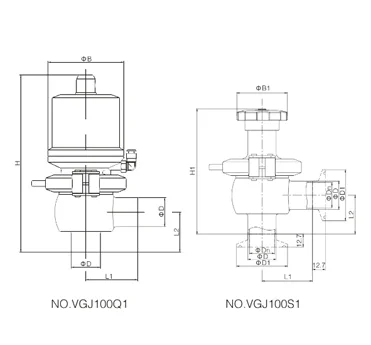

Dimensions

Radial diaphragm valve



INCH

SIZE

Dn

D

D1

L1

L2

H

B

H1

B1

¾”

16

19

25.4

50

40

171

73

145

55

1”

22.4

25.4

50.5

50

40

171

73

145

55

1.5”

35

35

50.5

55

43.5

205

100

156

55

2”

47.8

47.8

64

65

55

238

106

180

75

2.5”

59.5

59.5

77.5

80

70

268

130

205

85







DIN

SIZE

Dn

D

D1

L1

L2

H

B

H1

B1

DN20

19

22

34

50

40

171

73

145

55

DN25

25

28

50.5

50

40

171

73

145

55

DN32

31

34

50.5

50

40

205

100

156

55

DN40

37

40

50.5

55

40

205

100

156

55

DN50

49

52

64

65

55

238

106

180

75

DN65

66

70

91

80

70

268

130

205

85





Lưu ý

Sản phẩm Sanitary SS304 and SS316L pneumatic radial diaphragm valve for food and pharmacy được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
