2PC Ball Valve-VVM203M
|
 |
2PC Ball Valve-VVM203M

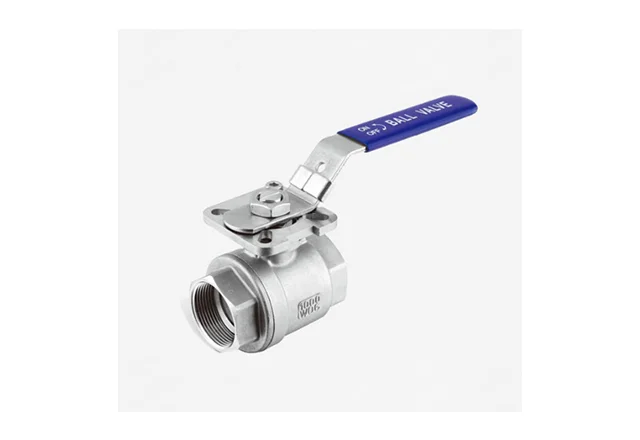

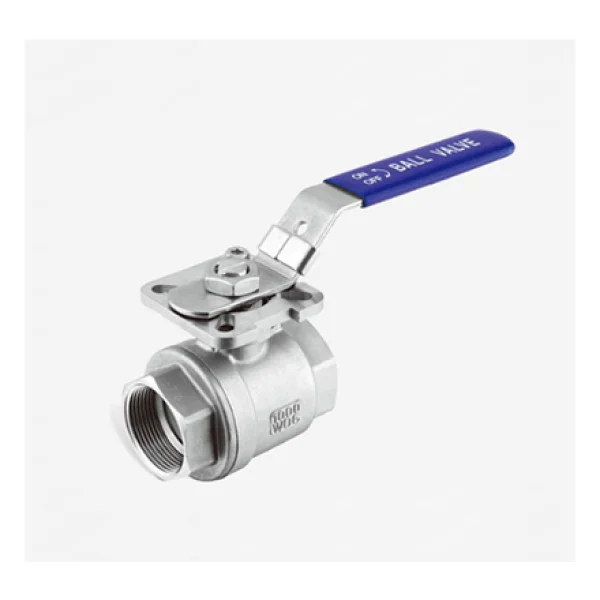

2PC Ball Valve With ISO5211 Mounting Pad
Material : 304, 316, 1.4308, 1.4408, CF8, CF8M
Model : 2PC, ISO5211 Mounting Pad
Connection : Thread
Medium : Water, Oil, Gas
|
|
FEATURES
|
|
Full Port 1000PSI/PN63
|
Investment Casting
|
|
Blow-out-Proof Stem
|
ISO5211 Mounting Pad
|
|
PED97/23/PE(CE0036) Approved
|
Locking Device Handle (option)
|
|
Inspection Testing:API598,EN12266
|
Casting approved AD2000-W0
|
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|
|
|
MATERIALS LIST
|
|
|
ITEM
|
DESIGNATION
|
MATERIAL
|
|
1
|
BODY
|
CF8/CF8M
|
|
2
|
CAP
|
CF8/CF8M
|
|
3
|
BALL
|
CF8/CF8M
|
|
4
|
STEM
|
304/316
|
|
5
|
BALL STEM
|
RPTFE
|
|
6
|
THRUST WASHER
|
PTFE
|
|
7
|
JOINT GASKET
|
PTFE
|
|
8
|
STEM PACKING
|
PTFE
|
|
9
|
GLAND RING
|
304
|
|
10
|
SPRING WASHER
|
304
|
|
11
|
STEM NUT
|
304
|
|
12
|
AGAINST PINE PAD
|
304
|
|
13
|
HANDLE
|
304
|
|
14
|
KANDLE SLEEVE
|
PVC
|
|
|

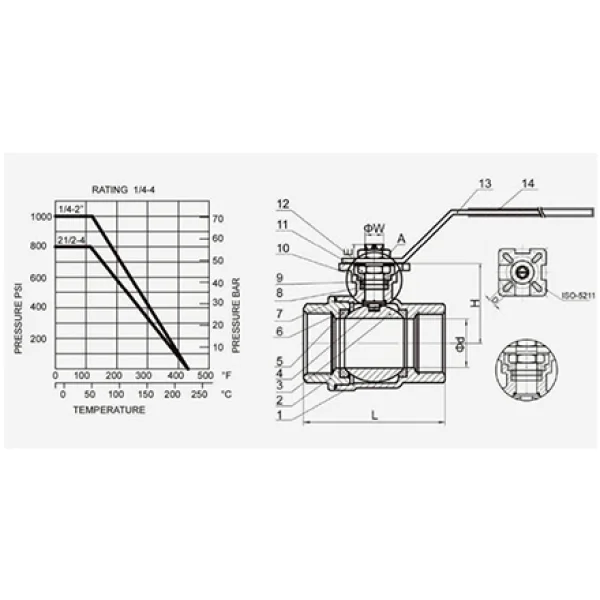

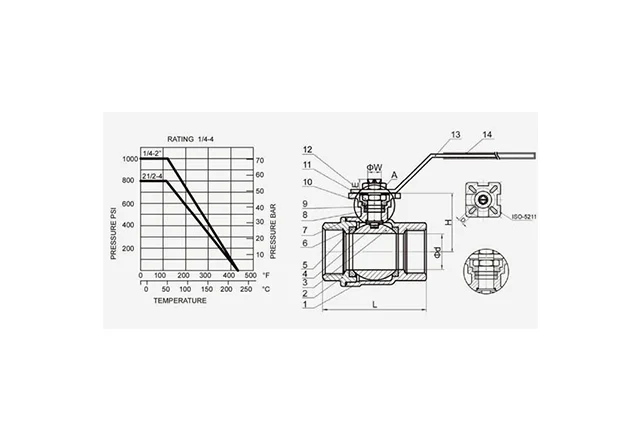

DIMENSIONS (mm)
|
|
SIZE \ ITEM
|
d
|
L
|
H
|
D
|
E
|
W
|
ISO5211
|
|
1/4"
|
11.6
|
49
|
36.5
|
9
|
9
|
12
|
F04/03
|
|
3/8"
|
12.5
|
49
|
36.5
|
9
|
9
|
12
|
F04/03
|
|
1/2"
|
15
|
58
|
37.8
|
9
|
9
|
12
|
F04/03
|
|
3/4"
|
20
|
65
|
42.5
|
9
|
9
|
12
|
F04/03
|
|
1"
|
25
|
77
|
45
|
11
|
11
|
14
|
F05/04
|
|
1.1/4"
|
32
|
90
|
51.5
|
11
|
11
|
14
|
F05/04
|
|
1.1/2"
|
38
|
98
|
59.5
|
14
|
14
|
18
|
F07/05
|
|
2"
|
50
|
121
|
68.5
|
14
|
14
|
18
|
F07/05
|
|
2.1/2"
|
64
|
156
|
98.5
|
17
|
16
|
22
|
F10/07
|
|
3"
|
76
|
186
|
108
|
17
|
16
|
22
|
F10/07
|
|
LƯU Ý:
Sản phẩm Van bi 2PC VVM203M được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
