Van bi 2PC VVM205

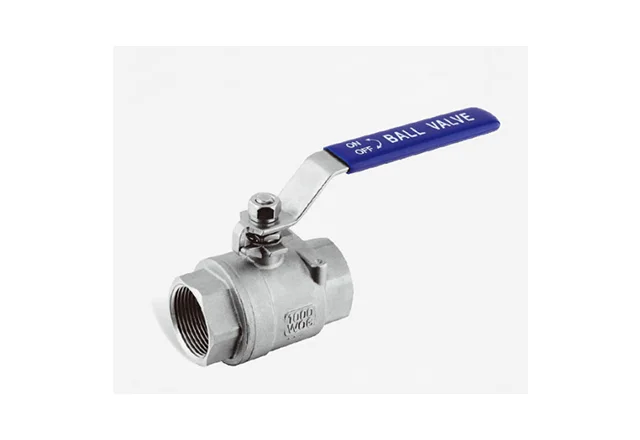

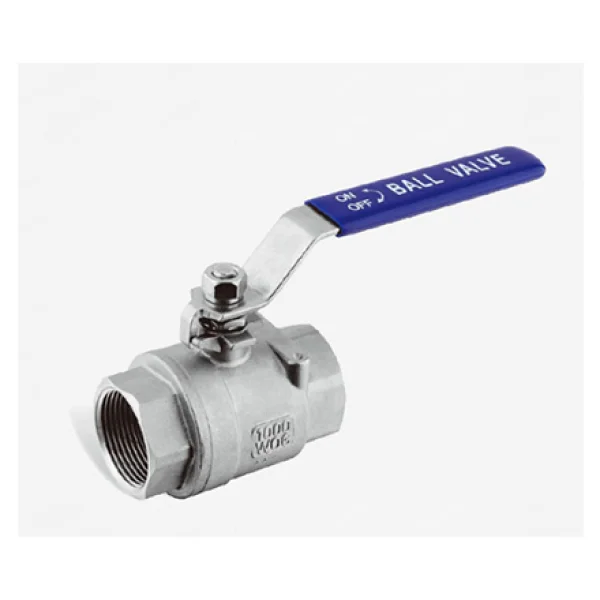

2PC Ball Valve-VVM205
|
 |
2PC Ball Valve-VVM205
2PC Heavy Type Ball Valve
Material : 304, 316, 1.4308, 1.4408, CF8, CF8M
Model : 2PC
Connection : Thread
Medium : Water, Oil, Gas
|
|
FEATURES
|
|
1000PSI/PN63
|
Full Port
|
|
Investment Casting
|
Blow-out-Proof Stem
|
|
Casting Approved AD2000-W0
|
PED97/23/PE(CE0036) Approved
|
|
Testing:API598,EN12266
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203, ISO7/1
|
|
|
MATERIALS LIST
|
|
|
ITEM
|
DESIGNATION
|
QTY
|
MATERIAL
|
|
1
|
HANDLE SLEEVE
|
1
|
PVC
|
|
2
|
HANDLE
|
1
|
304
|
|
3
|
GLAND NUT
|
1
|
304
|
|
4
|
STEM NUT
|
1
|
304
|
|
5
|
STEM
|
1
|
304/316
|
|
6
|
SPRING WASHER
|
1
|
304
|
|
7
|
STEM PACKING
|
1
|
PTFE
|
|
8
|
THRUST WASHER
|
1
|
PTFE
|
|
9
|
JOINT GASKET
|
1
|
PTFE
|
|
10
|
CAP
|
1
|
CF8/CF8M
|
|
11
|
BODY
|
2
|
CF8/CF8M
|
|
12
|
BALL SEAT
|
1
|
RPTFE
|
|
13
|
BALL
|
1
|
304/316
|
|
|

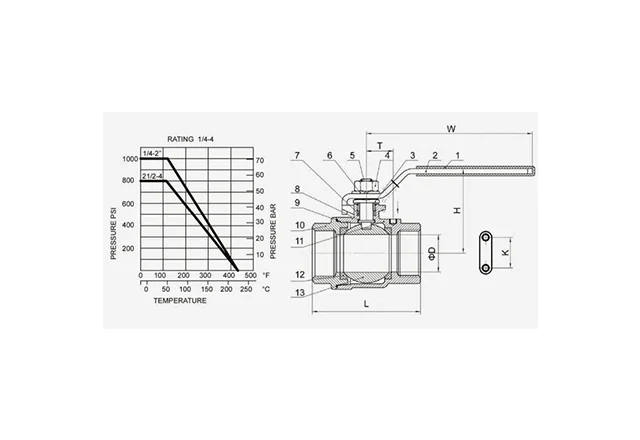

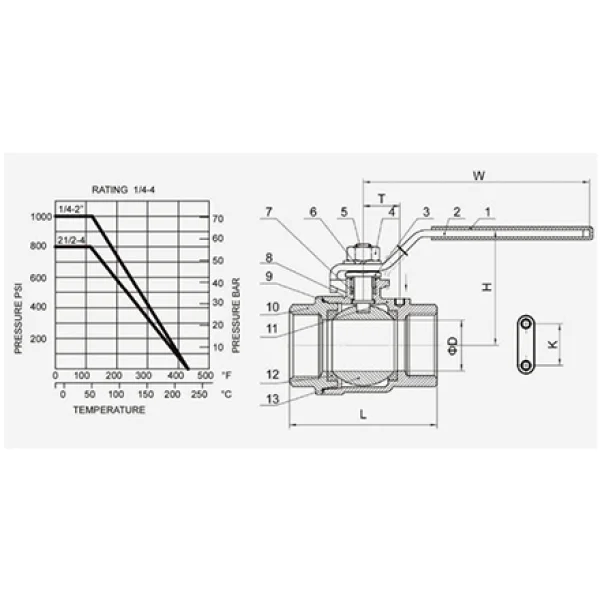

DIMENSIONS (mm)
|
|
SIZE \ ITEM
|
D
|
L
|
H
|
W
|
K
|
T
|
|
1/4"
|
11.6
|
50
|
48
|
91
|
28.5
|
12.5
|
|
3/8"
|
12.5
|
50
|
48
|
91
|
28.5
|
12.5
|
|
1/2"
|
15
|
58
|
52
|
103
|
28.5
|
13
|
|
3/4"
|
20
|
65
|
61
|
111
|
34.8
|
21
|
|
1"
|
25
|
80
|
65
|
126
|
34.8
|
22.5
|
|
1.1/4"
|
32
|
92
|
79
|
154
|
38.1
|
23.5
|
|
1.1/2"
|
38
|
105
|
83
|
154
|
38.1
|
23.5
|
|
2"
|
50
|
125
|
97
|
191
|
38.1
|
23.5
|
|
2.1/2"
|
64
|
155.6
|
129
|
244
|
56
|
32
|
|
3"
|
76
|
183
|
138
|
244
|
56
|
35
|
|
4"
|
94
|
240
|
175
|
317
|
63
|
50
|
|
LƯU Ý:
Sản phẩm Van bi 2PC VVM205 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
