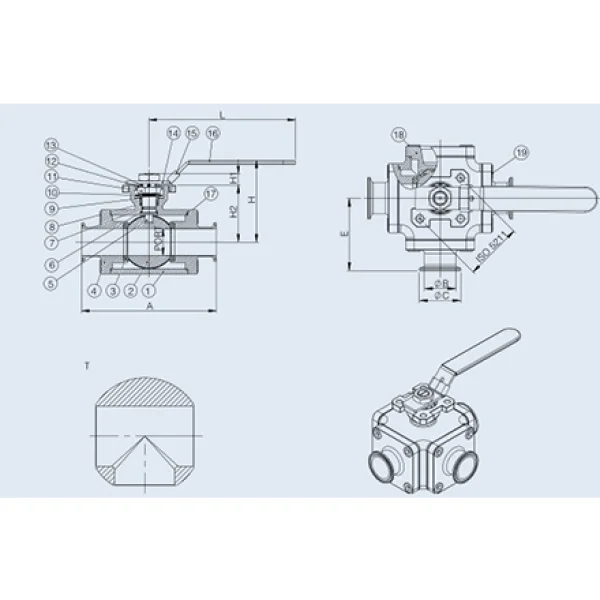

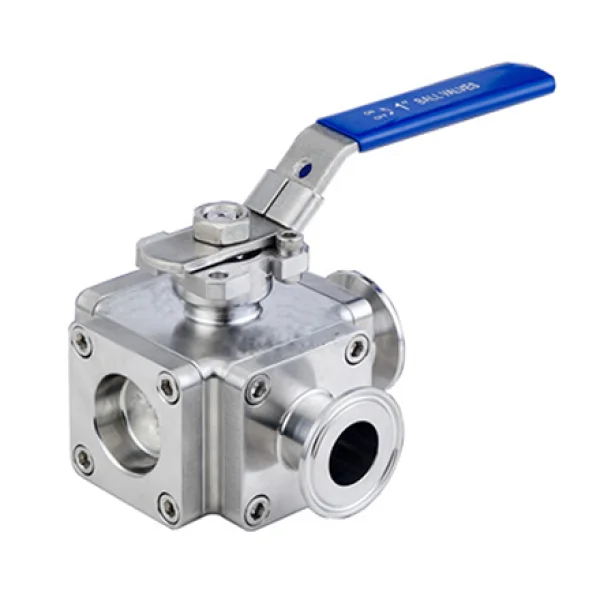

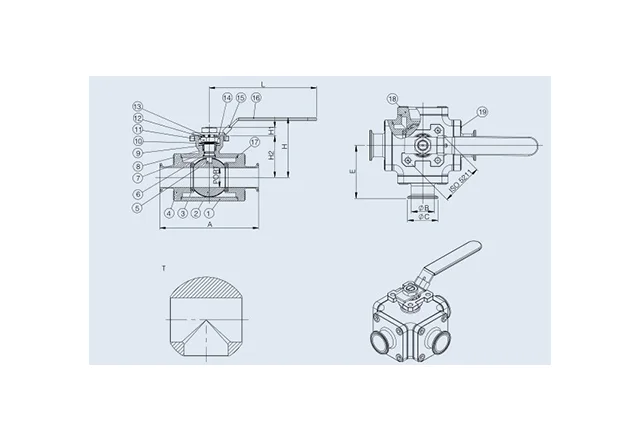

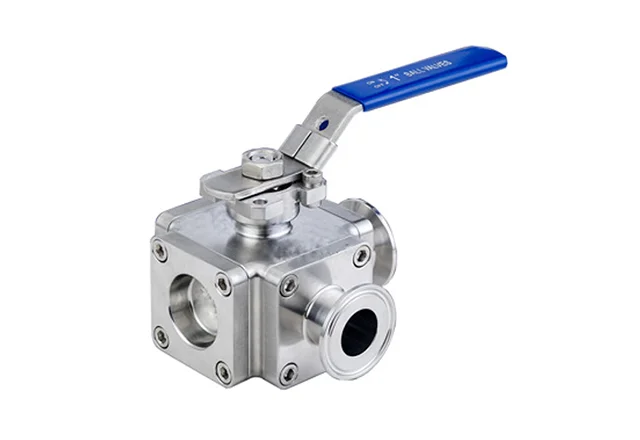

Van bi ba ngả chữ L
L -Type Ball Valve
|
 |
 |
|
Size
|
DN
|
A
|
PORT
|
B
|
C
|
E
|
H
|
H1
|
H2
|
L
|
ISO5211
|
|
1/2"
|
DN15
|
147.4
|
16.0
|
12.7
|
25.2
|
73.7
|
89.0
|
9.0
|
47.8
|
486.5
|
F04
|
|
3/4"
|
DN20
|
155.8
|
20.0
|
19.05
|
25.2
|
77.9
|
98.0
|
11.0
|
58.2
|
218.0
|
F05
|
|
1"
|
DN25
|
168.8
|
25.0
|
25.4
|
50.5
|
84.4
|
102.0
|
11.5
|
64.0
|
218.0
|
F05
|
|
1 1/4"
|
DN32
|
197.9
|
32.0
|
31.8
|
50.5
|
98.95
|
118.5
|
15.2
|
79.0
|
135.0
|
F05 F10
|
|
1 1/2"
|
DN40
|
221.4
|
38.0
|
38.1
|
50.5
|
110.7
|
127.0
|
14.3
|
88.5
|
135.0
|
F05 F10
|
|
2"
|
DN50
|
244.6
|
50.0
|
50.8
|
64.0
|
122.3
|
139.0
|
17.8
|
105.8
|
252.0
|
F07 F10
|
|
2 1/2"
|
DN65
|
270.0
|
65.0
|
63.5
|
77.5
|
135
|
165.7
|
17.5
|
117.3
|
252.0
|
F07 F10
|
|
3"
|
DN80
|
292.2
|
80.0
|
76.2
|
91.0
|
146.1
|
170.0
|
17.5
|
128.0
|
252.0
|
F07 F10
|
|
4"
|
DN100
|
328.0
|
100.0
|
101.6
|
119.0
|
164.0
|
193.0
|
30.0
|
140
|
600.0
|
F07 F10
|
|
Size
|
DN15
|
DN20
|
DN25
|
DN32
|
DN40
|
DN50
|
DN65
|
DN80
|
DN100
|
|
A
|
158.0
|
169.0
|
185.0
|
195.0
|
232.0
|
253.0
|
270.0
|
292.2
|
320
|
|
B
|
18
|
22
|
28
|
34
|
40
|
52
|
70
|
85
|
104
|
|
C
|
34.0
|
34.0
|
50.5
|
50.5
|
50.5
|
64.0
|
77.5
|
106
|
119
|
|
E
|
79
|
84.5
|
92.5
|
97.5
|
116
|
126.5
|
135
|
146.1
|
160
|
PARTS LIST:
|
No.
|
Description
|
Material
|
Amount
|
No.
|
Description
|
Material
|
Amount
|
No.
|
Description
|
Material
|
Amount
|
|
01
|
Valve Body
|
304/316L
|
1
|
07
|
O
|
EPDM/FKM
|
1
|
13
|
|
PTFE
|
1
|
|
02
|
|
304/316L
|
1
|
08
|
V
|
PTFE
|
2
|
14
|
|
304
|
1
|
|
03
|
|
PTFE
|
4
|
09
|
|
304
|
1
|
15
|
|
304
|
1
|
|
04
|
Valve Cap
|
304/316L
|
3
|
10
|
|
301
|
2
|
16
|
|
PLASTIC
|
1
|
|
05
|
Valve Rod
|
304/316L
|
1
|
11
|
|
304
|
2
|
17
|
|
PTFE
|
1
|
|
06
|
|
PTFE
|
1
|
12
|
|
304
|
1
|
18
|
|
304
|
16
|
|
LƯU Ý:
Sản phẩm Van bi ba ngả chữ L được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
