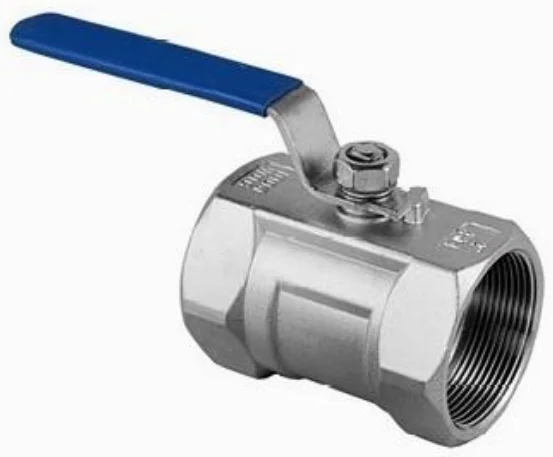

Industrial Valve - 1PC BALL VALVE

1000PSI/PN63

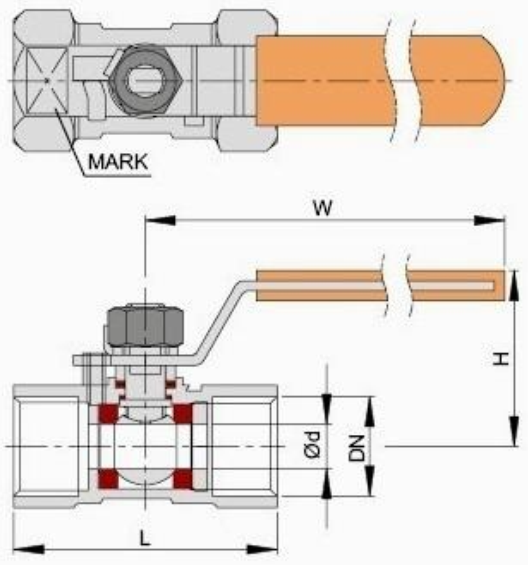

DIMENSION

Features:

·   1000WOG, PN63

·   Reduce Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   PTFE Packing Sealing

·   Design Standard: ASME B16.34

·   Thread: ASME B1.201/BS21/DIN299

             DIN259/ISO228/1

·   Testing Standard: API 598/SP-110

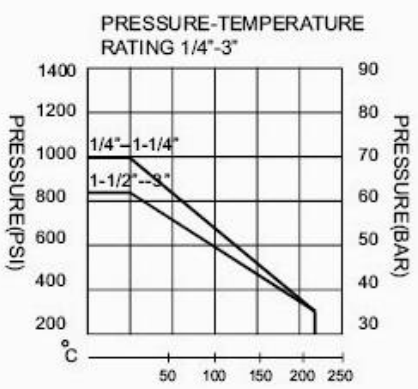

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

H

W

TORQUE N.M

CV

1/4"

41

5

35

65

3

1

3/8"

45

7

37

70

3

1.2

1/2"

55

9

44

90

3

1.3

3/4"

59

12.5

47

90

4

2

1"

70

15

50

105

5

3.4

1-1/4"

76

20

57

105

7

7.1

1-1/2"

84

25

69

130

8

12.4

2"

97

32

75

130

15

20.3

2-1/2"

124

40

95

180

22

28.5

3"

148

49

105

180

25

47.5

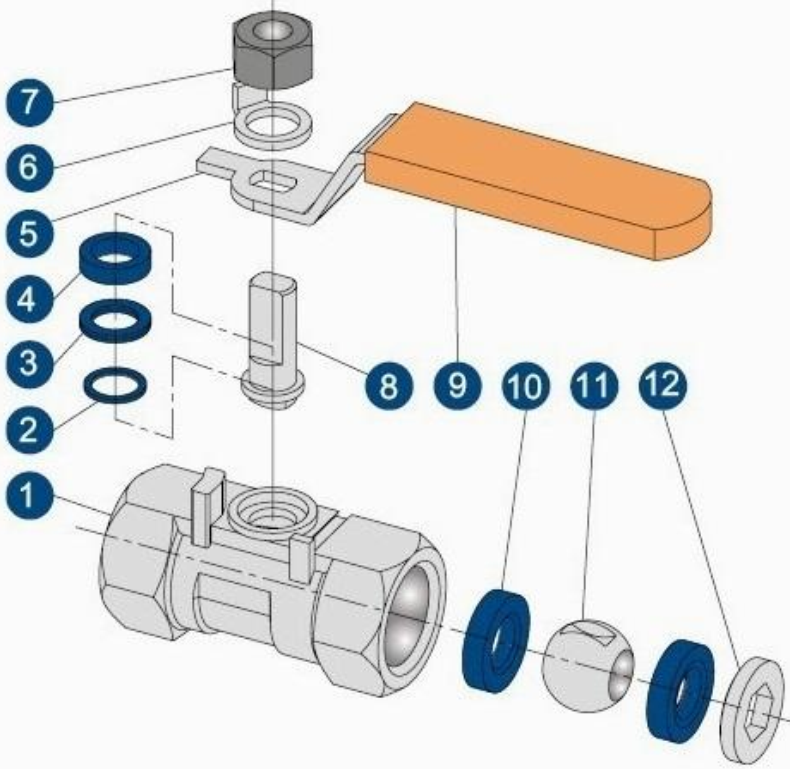

DRAWING

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

CF8M

CF8

WCB

2

THRUST WASHER

PTFE

3

STEM PACKING

PTFE

4

GLAND

SUS304

5

HANDLE

SUS304

6

STOP WASHER

SUS304

7

NUT

SUS304

8

STEM

SUS316

SUS304

9

HANDLE COVER

VINYL

10

BALL SEAT

PTFE

R-PTFE

11

BALL

SUS316

SUS304

12

END CAP

CF8M

CF8
