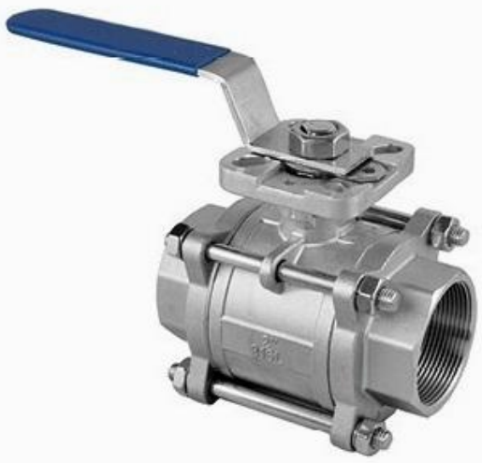

Industrial Valve - 3PC BALL VALVE ISO-DIRECT MOUNTING PAD

1000PSI/PN63

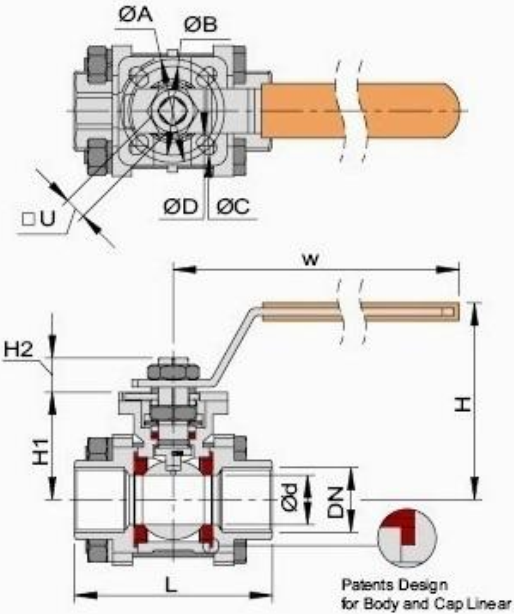

DIMENSION

Features:

·   Spring Ball Seat for Self-Adjust

·   Full Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   Balance Hole Ball Slot

·   Design Standard: ASME B16.34

·   Anti-Static Device

·   Butt-Welding end/Socket End Available

·   Testing Standard: API 598/SP-110

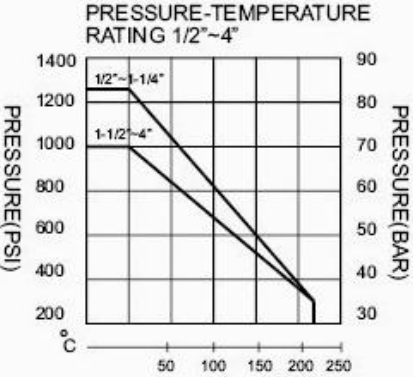

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

W

H

H1

H2

ΦA

ΦB

ΦC

ΦD

£U

TORQUE N.M

CV

1/2"

70

15

125

60

40

8.5

42

36

6

6

9

5

3.4

3/4"

80

20

125

64

44

8.5

42

36

6

6

9

7

7.2

1"

90

25

155

79.5

52

11

50

42

7

6

11

8

12.5

1-1/4"

110

32

155

87

57

11

50

42

7

6

11

15

20.3

1-1/2"

116

38

195

106

70

14

70

50

8.5

7

14

22

28.5

2"

136

49

195

115

80

15

70

50

8.5

7

14

25

47.5

2-1/2"

185

65

245

136

94.5

18

102

70

11

9

17

50

76

3"

200

76

245

147

103

18

102

70

11

9

17

85

108.5

4"

235

96

300

165

123

19

102

70

11

9

19

113

198

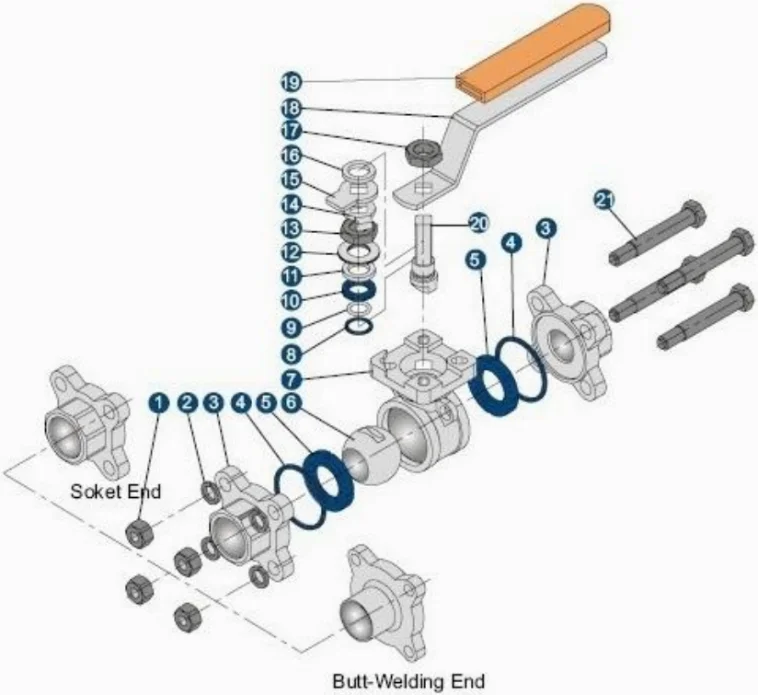

DRAWING

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

NUT

A194-8

2

SPRING WASHER

SUS304

3

CAP

CF8M

CF8

4

BODY GASKET

PTFE

5

BALL SEAT

PTFE

R-PTFE

6

BALL

SUS316

SUS304

7

BODY

CF8M

CF8

8

THRUST WASHER

PTFE

9

O-RING

VITON

10

STEM PACKING

PTFE

11

GLAND

SUS304

12

ELLEVILLE WASHER

SUS304

13

STOP NUT

A194-8

14

STOP WASHER

SUS304

15

LOCKING WASHER

SUS304

16

WASHER

SUS304

17

STEM NUT

A194-8

18

HANDLE

SUS304

19

HANDLE COVER

PLASTIC

20

STEM

SUS316

SUS316

21

BOLT

A193-B8
