Industrial Valve - 3PC BALL VALVE

1000PSI/PN63

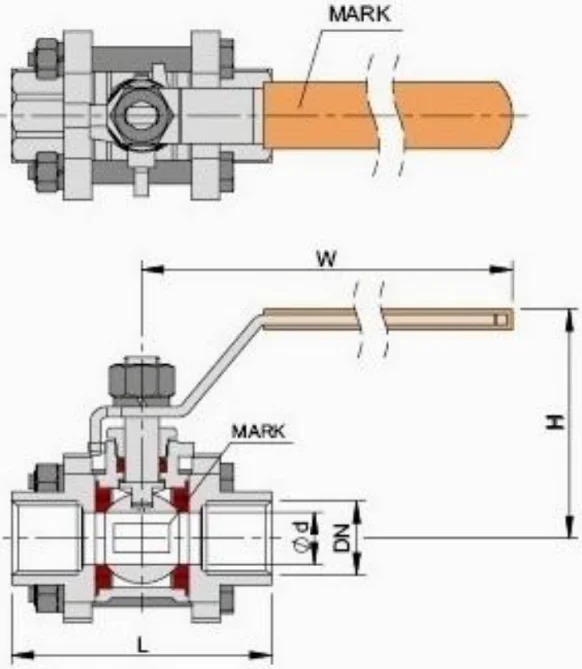

DIMENSION

Features:

·   1000PSI/PN63

·   Full Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   PTFE Packing Sealing

·   Balance Hole in Ball Slot

·   Design Standard: ASME B16.34

·   Precision Casting

·   ISO5211 Mounting Pad Top Flange

·   Testing Standard: API 598/SP-110

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

d

H

W

TORQUE N.M

CV

1/4"

DN8

67

12.5

59

100

3.5

2

3/8"

DN10

67

12.5

59

100

4

2

1/2"

DN15

70

15

61

120

5

3.4

3/4"

DN20

80

20

67

125

7

7.1

1"

DN25

90

25

74

150

8

12.4

1-1/4"

DN32

110

32

82

160

15

20.3

1-1/2"

DN40

119

38

99

190

22

28.5

2"

DN50

140

49

105

200

25

47.5

2-1/2"

DN65

160

63

120

265

50

76

3"

DN80

201

76

137

310

85

108.4

4"

DN100

234

96

157

310

115

198

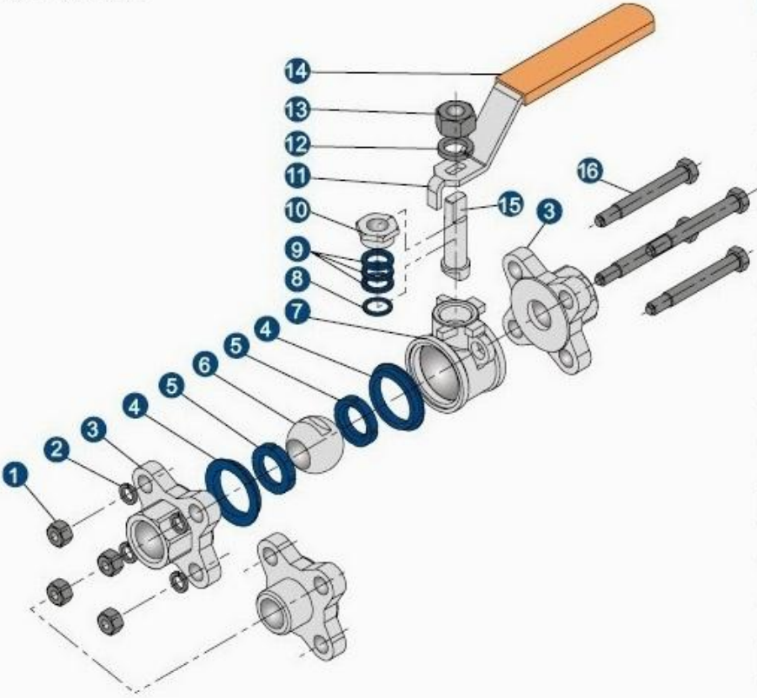

DRAWING

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

NUT

A194-8

2

SPRING WASHER

SUS304

3

CAP

CF8M

CF8

4

BODY GASKET

PTFE

R-PTFE

5

BALL SEAT

PTFE

R-PTFE

6

BALL

SUS316

SUS304

7

BODY

CF8M

CF8

8

THRUST WASHER

PTFE

9

STEM PACKING

PTFE

10

STOP NUT

SUS304

11

HANDLE

SUS304

12

SPRING WASHER

SUS304

13

STEM NUT

A194-8

14

HANDLE COVER

PLASTIC

15

STEM

SUS316

SUS304

16

BOLT

A193-B8
