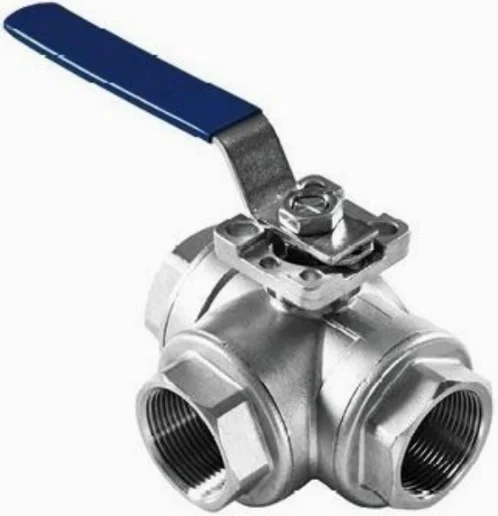

Industrial Valve - 3-WAY BALL VALVE ISO-DIRECT MOUNTING PAD

1000PSI/PN63

DIMENSION

Features:

·   Reduce Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   ISO5211 Direct Mounting Pad

·   Design Standard: ASME B16.34

·   1000WOG/PN63

·   Spring Ball Seat for Self-Adjust

·   Testing Standard: API 598

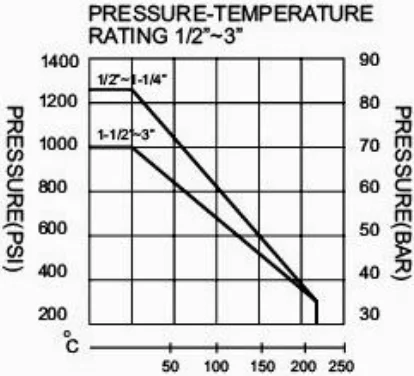

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

W

H

H1

H2

ΦA

ΦB

ΦC

ΦD

£U

TORQUE N.M

CV

1/2"

73

12

120

65

36

8.5

42

36

6

6

9

5

1.3

3/4"

80

15

120

69

40

9

42

36

6

6

9

7

2

1"

88

18

150

77

46

11

50

42

7

6

11

8

3.5

1-1/4"

125

25

150

87

56

11

50

42

7

6

11

16

7

1-1/2"

136

32

240

107

59

14

70

50

9

7

14

22

12.4

2"

158

38

240

112

76

15

70

50

9

7

14

26

20.3

2-1/2"

200

50

260

129

93

17

102

70

11

9

17

50

28.5

3"

240

65

300

150

112

19

102

70

11

9

19

85

47

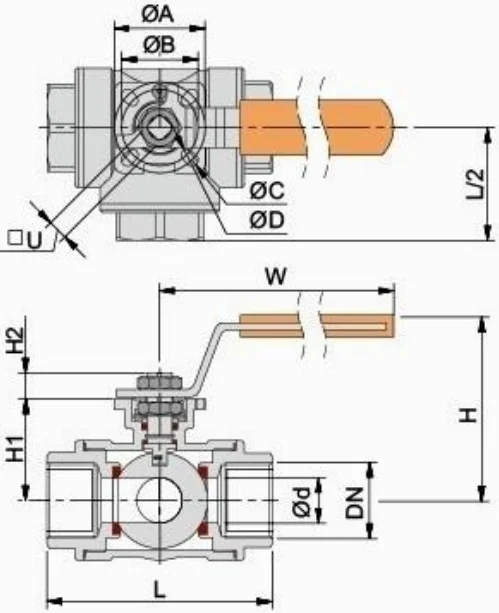

DRAWING

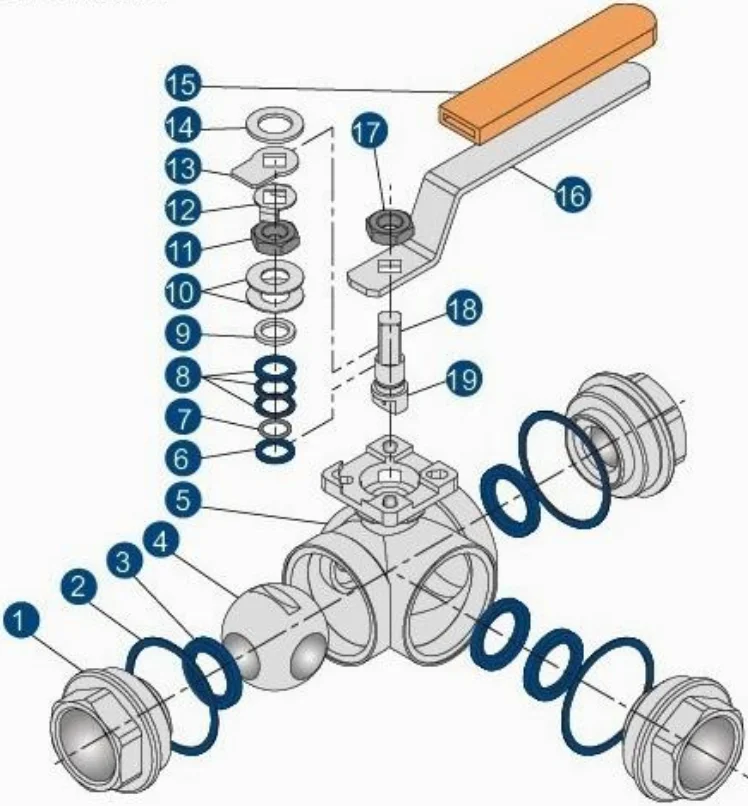

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

CAP

CF8M

CF8

2

BODY GASKET

PTFE

3

BALL SEAT

PTFE

R-PTFE

4

BALL

SUS316

SUS304

5

BODY

CF8M

CF8

6

THRUST WASHER

PTFE

7

O-RING

VITON

8

STEM PACKING

PTFE

9

GLAND

SUS304

10

ELLEVILLE WASHER

SUS304

11

STOP NUT

A194-8

12

STOP CAP

SUS304

13

LOCKING WASHER

SUS304

14

WASHER

SUS304

15

HANDLE COVER

PLASTIC

16

HANDLE

SUS304

17

STEM NUT

A194-8

18

STEM

SUS316

SUS304

19

ANTI-STACTIC

SUS304
