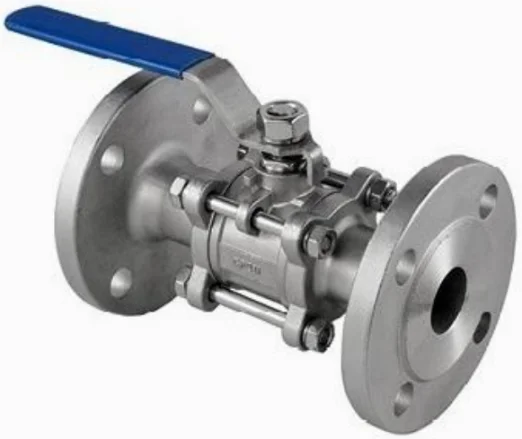

Industrial Valve - 3 FLANGED BALL VALVE

PN10-40

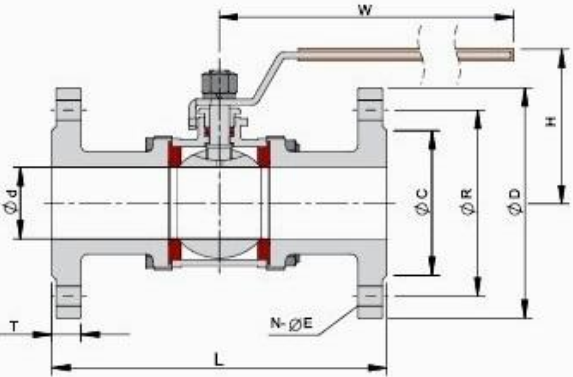

DIMENSION

Features:

·   ASNI 150#/10K/PN16,300#/20K/PN40

·   Full Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   V-Ring Packing Sealing

·   Fire Safe Design ACC: API6D

·   Balance Hole in Ball Slot

·   Design Standard: ASME B16.34

·   Flange: ASME 16.5/JIS10K/DIN PN10-40

·   Face to Face: ASME B16.10/DIN 3202-F1

·   Testing Standard: API 598

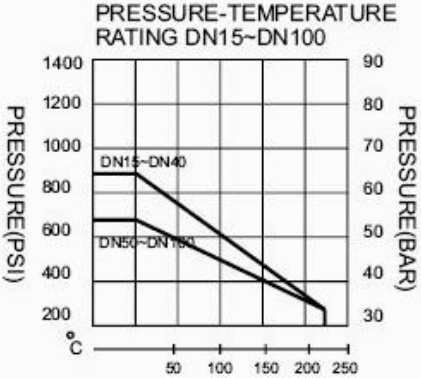

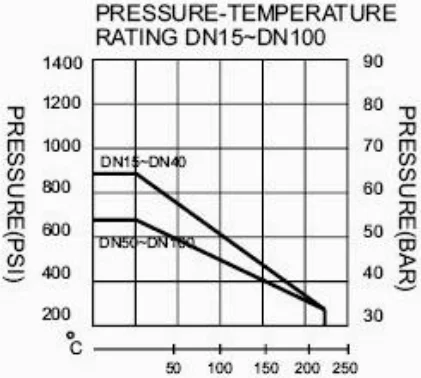

PRESSURE TESTING

STANDARD PRESSURE

4.0Mpa

SHELL PRESSURE TESTING

6.0Mpa

WATER SEAL TESTING

4.4Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

W

H

ΦC

ΦR

ΦD

N

ΦE

T

TORQUE N.M

CV

DN15

130

15

115

59

45

65

95

4

14

16

5

3.4

DN20

150

20

125

67

58

75

105

4

14

18

7

7.1

DN25

160

25

150

74

68

85

115

4

14

18

8

12.4

DN32

180

32

160

82

78

100

140

4

18

18

16

20.3

DN40

200

38

190

99

88

110

150

4

18

18

22

28.5

DN50

230

50

200

105

102

125

165

4

18

20

25

47.5

DN65

290

65

265

120

122

145

185

8

18

22

50

76

DN80

310

80

300

135

138

160

200

8

18

24

80

108.4

DN100

350

100

300

157

162

190

235

8

22

24

113

198

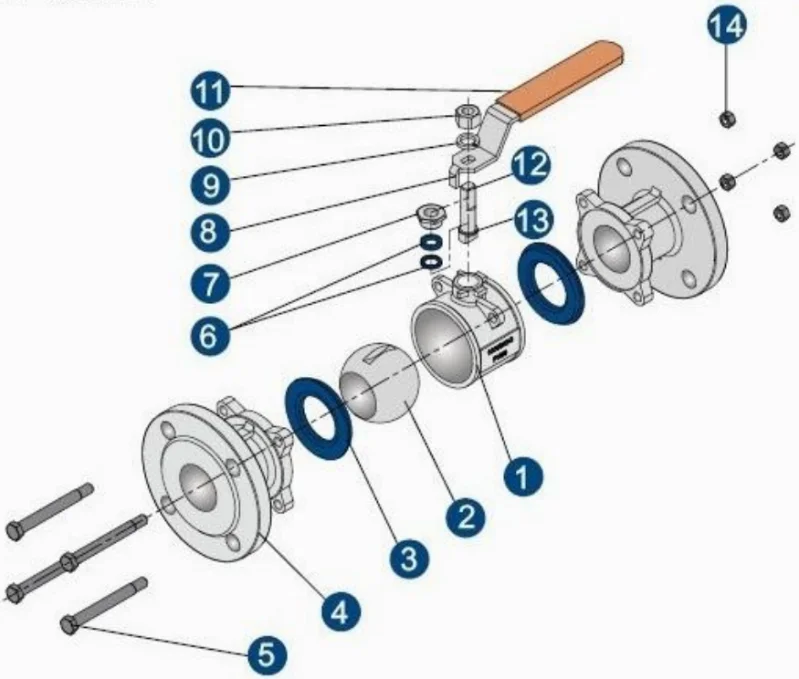

DRAWING

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

CF8M

CF8

2

BALL

SUS316

SUS304

3

BALL SEAT

PTFE

R-PTFE

4

CAP

CF8M

CF8

5

BOLT

SUS304

6

STEM PACKING

PTFE

7

STOP NUT

SUS304

8

HANDLE

SUS304

9

SPRING WASHER

SUS304

10

STEM NUT

SUS304

11

HANDLE COVER

PLASTIC

12

STEM

SUS316

SUS304

13

THRUST WASHER

SUS304

14

NUT

SUS304
