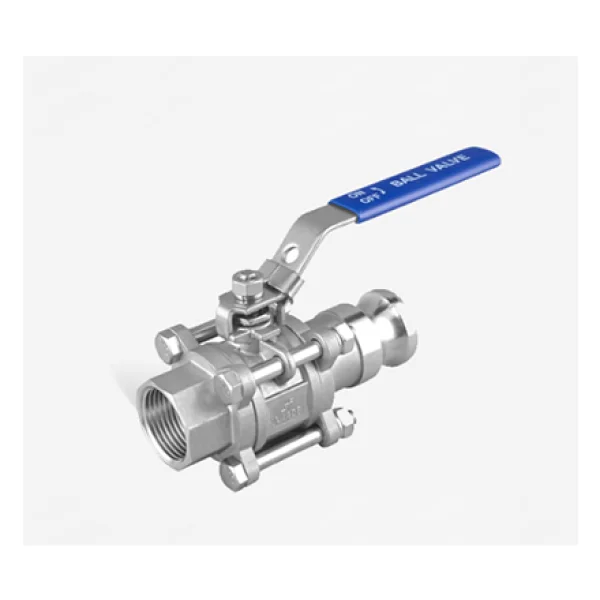

Van bi vi sinh 3PC VVM370S
3PC Ball Valve-VVM370S
|
 |
3PC Ball Valve-VVM370S

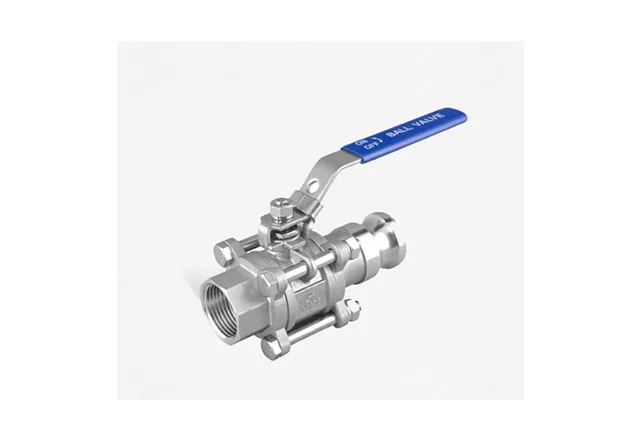

3PC Ball Valve
Material : 304, 316, 1.4308, 1.4408, CF8, CF8M
Model : 3PC
Connection : BW
Medium : Water, Oil, Gas
|
|
FEATURES
|
|
CF8M/CF8
|
Full Port 1/4"-2"1000PSI 2.1/2"-3" 800PSI
|
|
Main market: America
|
Connection: Threaded-Quick Connector
|
|
Max temperature:-25°C to 180°C
|
|
|
Thread: ANSIB2.1,.BS21,DIN259/2999,ISO228-1jis B 0203 ,ISO7/1
|
|
|
MATERIALS LIST
|
|
|
ITEM
|
DESIGNATION
|
QTY
|
MATERIAL
|
|
1
|
HANDLE SLEEVE
|
1
|
PLASTIC
|
|
2
|
HANDLE
|
1
|
304
|
|
3
|
GLAND NUT
|
1
|
316/304
|
|
4
|
STEM NUT
|
1
|
304
|
|
5
|
SPRING WASHER
|
1
|
304
|
|
6
|
STEM PACKING
|
1
|
PTFE
|
|
7
|
THRUST WASHER
|
1
|
PTFE
|
|
8
|
JOING GASKET
|
2
|
PTFE
|
|
9
|
CAP
|
1
|
CF8/CF8M
|
|
10
|
BOLT
|
4(6)
|
304
|
|
11
|
NUT
|
4(6)
|
304
|
|
12
|
SPRING WASHER
|
4(6)
|
304
|
|
13
|
BODY
|
1
|
CF8/CF8M
|
|
14
|
BALL SEAT
|
2
|
CF8/CF8M
|
|
15
|
BALL SEAT
|
1
|
RPTFE
|
|
16
|
STEM
|
1
|
316/304
|
|
17
|
LOCKING DEVICE
|
1
|
304
|
|
18
|
QUICK CONNECTOR
|
2
|
CF8M
|
|
|

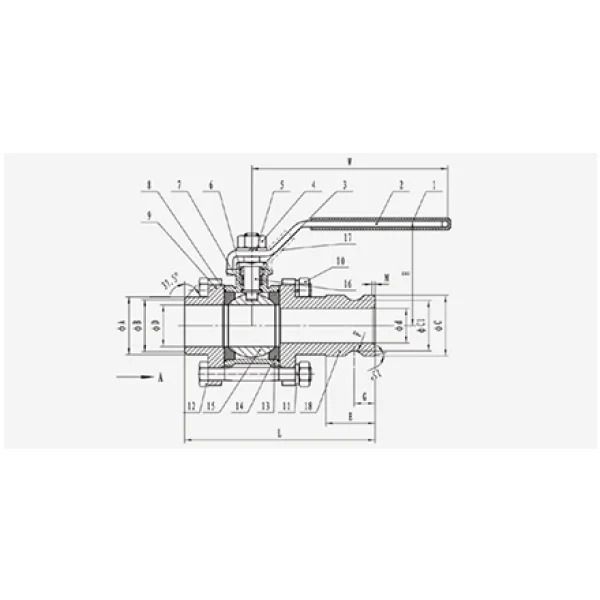

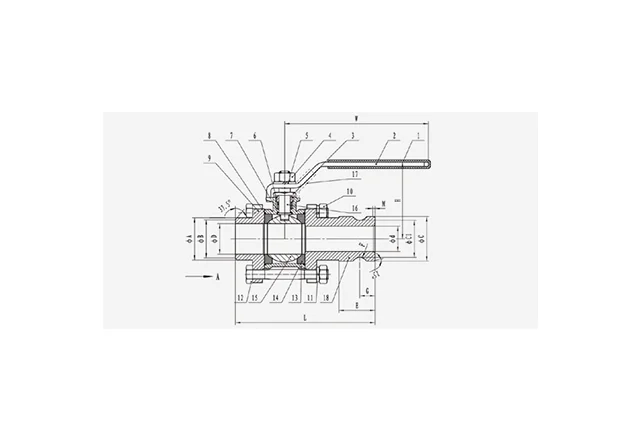

DIMENSIONS (mm)
|
|
SIZE \ ITEM
|
G
|
C1
|
M
|
ΦX
|
ΦY
|
R
|
P
|
|
1"
|
14.35
|
29.4
|
3.2
|
59.2
|
50
|
7.2
|
90
|
|
4"
|
22.73
|
109.4
|
5.6
|
19.3
|
175
|
14
|
60
|
|
SIZE \ ITEM
|
ΦA
|
ΦB
|
ΦD
|
L
|
H
|
W
|
BOLT NO.
|
ΦC
|
|
1"
|
34
|
29.4
|
25.4
|
125.3
|
63
|
145
|
4
|
36.7
|
|
4"
|
120
|
108
|
100
|
326.3
|
170.3
|
288
|
6
|
119.5
|
|
LƯU Ý:
Sản phẩm Van bi vi sinh 3PC VVM370S được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
